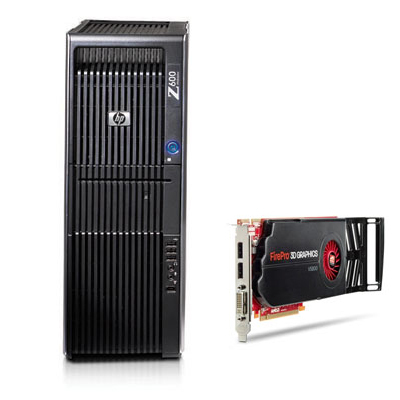

600 + ATI FirePro V5800

Model 600 + ATI FirePro V5800Part no. KK692ET + WL050ET

99 specifications

Overview

Brand: HP
Category: PCs/Workstations
Model: 600 + ATI FirePro V5800
Part number: KK692ET + WL050ET
Also known as: HP 600 + ATI FirePro V5800 Intel® Xeon® 5000 Sequence E5620 8 GB DDR3-SDRAM Windows 7 Professional Tower Workstation

99 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	E5620
Processor cores	4
Processor threads	8
Processor boost frequency	2.66 GHz
Processor frequency	2.4 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
System bus rate	5.86 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Xeon 5600 Series
Processor codename	Westmere EP
Thermal Design Power (TDP)	80 W
Tcase	77.6 °C
Number of QPI links	2
Number of processors installed	2
Processor socket	Socket B (LGA 1366)
CPU multiplier (bus/core ratio)	18
Stepping	B1
Maximum internal memory supported by processor	288 GB
Memory types supported by processor	DDR3 800/1066
Memory clock speeds supported by processor	800,1066 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	Yes

Specification	Value
Graphics card	No

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® 5520

Specification	Value
LightScribe	Yes

Specification	Value
Networking features	Gigabit Ethernet (10/100/1000)

Specification	Value
Power supply	650 W

Specification	Value
Chassis type	Tower
Country of origin	China

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	2
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	40 bit
Processor ARK ID	47925
Processor code	SLBV4
Processor package size	42.5 X 45 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	1.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No
