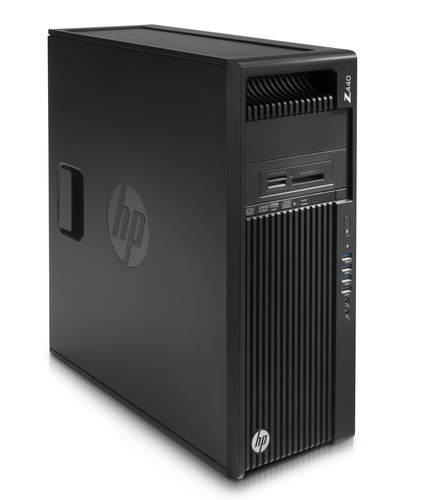

440 MT

Model 440 MTPart no. G1X59EA#ARL - NEW RETAILEAN 889296429012

130 specifications

ProcessorIntel Xeon E5 v3
Memory4 GB
Storage500 GB
GraphicsNot available
TypeWorkstation
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel Xeon E5 v3
Memory: 4 GB
Storage: 500 GB
Graphics: Not available
Type: Workstation
OS: Windows 7 Professional

Brand: HP
Category: PCs/Workstations
Model: 440 MT
Part numbers: G1X59EA#ARL - NEW RETAIL, G1X70EA, G1X54ET-EX, G1X59ET-EX, G1X54EAR, G1X58EAR +34 more
EAN / UPC: 889296429012, 889296429029, 889296429036, 889296429043 +15 more
Also known as: HP 440 MT Intel Xeon E5 v3 E5-1603V3 4 GB DDR4-SDRAM 500 GB HDD Windows 7 Professional Mini Tower Workstation Black

Specifications

130 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Xeon E5 v3
Processor model	E5-1603V3
Processor cores	4
Processor threads	4
Processor frequency	2.8 GHz
Processor cache	10 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
System bus rate	0 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor codename	Haswell
Thermal Design Power (TDP)	140 W
Tcase	67.1 °C
Maximum number of PCI Express lanes	40
PCI Express configurations	x4, x8, x16
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 2011-v3
Stepping	R2
Maximum internal memory supported by processor	768 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,1866 MHz
Memory bandwidth supported by processor (max)	59 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	128 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory slots	8x DIMM
Memory clock speed	2133 MHz
Memory channels	Quad-channel

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	DVD Super Multi
Storage media	HDD
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD speed	7200 RPM

Graphics

Specification	Value
Discrete graphics card model	Not available

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C612

Optical drive

Specification	Value
Optical drives quantity	1
BD interface type	SATA

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
PS/2 ports quantity	2

Expansion slots

Specification	Value
Number of 3.5" bays	2
PCI Express x1 (Gen 2.x) slots	1
PCI Express x4 (Gen 2.x) slots	1
PCI Express x8 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	2
PCI slots	1

Power

Specification	Value
Power supply	700 W

Design

Specification	Value
Chassis type	Mini Tower
Number of 5.25" bays	2
Product colour	Black
Country of origin	China

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Recovery operating system	Windows 8.1 Pro

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	82761
Processor code	SR20K
Processor package size	52.5 x 45.0 mm
Scalability	1S
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No
