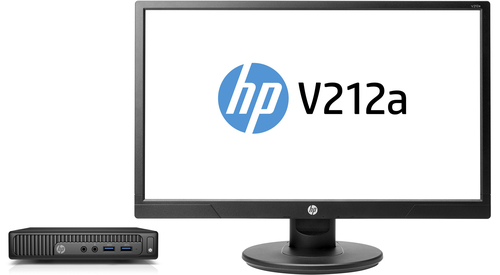

260 G2 Mini + V212a

Model 260 G2 Mini + V212aPart no. W4A53EA_M6F38AA_PK

140 specifications

Display52.6 cm (20.7")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i3
Memory4 GB
Storage500 GB
GraphicsNot available

See all specifications

Overview

Display: 52.6 cm (20.7")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i3
Memory: 4 GB
Storage: 500 GB
Graphics: Not available

Brand: HP
Category: PCs/Workstations
Model: 260 G2 Mini + V212a
Part number: W4A53EA_M6F38AA_PK
Also known as: HP 260 G2 Mini + V212a Intel® Core™ i3 i3-6100U 4 GB DDR4-SDRAM 500 GB HDD FreeDOS Desktop Mini PC Black

Specifications

140 specifications in 15 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	6th gen Intel® Core™ i3
Processor model	i3-6100U
Processor cores	2
Processor threads	4
Processor frequency	2.3 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Bus type	QPI
System bus rate	4 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-6100 series
Processor codename	Skylake
Thermal Design Power (TDP)	15 W
Configurable TDP-down	7.5 W
Configurable TDP-down frequency	0.8 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x4, 4x1
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	BGA 1356
Stepping	D1
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3L-SDRAM, LPDDR3-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1866,2133,1600 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	32 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory slots	2x SO-DIMM
Memory clock speed	2133 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	No
Storage media	HDD
Total HDDs capacity	500 GB
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD speed	5400 RPM
Card reader integrated	No

Graphics

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 520
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	1916
On-board graphics card OpenGL version	4.4

Performance

Specification	Value
Product type	Mini PC

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
HDMI version	1.4
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No

Power

Specification	Value
Power supply	65 W

Design

Specification	Value
Chassis type	Desktop
Product colour	Black
Country of origin	China

Software

Specification	Value
Operating system installed	FreeDOS

Display

Specification	Value
Display included	Yes
Display diagonal	52.6 cm (20.7")
Full HD	Yes
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Contrast ratio (typical)	600:1
Display brightness	200 cd/m²
Viewing angle, horizontal	90°
Viewing angle, vertical	65°

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	88180
Processor code	SR2EU
Processor package size	42 X 24 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes
