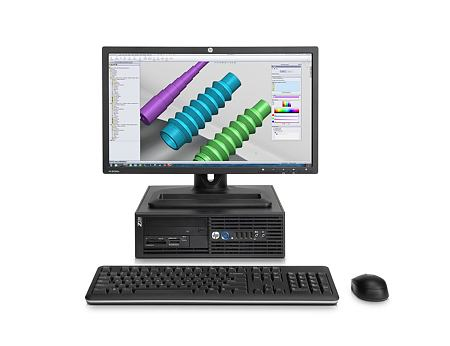

HP 220 SFF + ZR2330w + NVIDIA Quadro K600

Model 220 SFF + ZR2330w + NVIDIA Quadro K600Part no. WM498ET+C6Y18AT+C2J92AT/923780

138 specifications

Display58.4 cm (23")
Resolution1920 x 1080 pixels
ProcessorIntel® Xeon® E3 V2 Family
Memory4 GB
Storage500 GB
GraphicsNot available

See all specifications

Overview

Display: 58.4 cm (23")
Resolution: 1920 x 1080 pixels
Processor: Intel® Xeon® E3 V2 Family
Memory: 4 GB
Storage: 500 GB
Graphics: Not available

Brand: HP
Category: PCs/Workstations
Model: 220 SFF + ZR2330w + NVIDIA Quadro K600
Part number: WM498ET+C6Y18AT+C2J92AT/923780
Also known as: HP 220 SFF + ZR2330w + NVIDIA Quadro K600 Intel® Xeon® E3 V2 Family E3-1225V2 4 GB DDR3-SDRAM 500 GB HDD Windows 7 Professional Workstation Black

Specifications

138 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 V2 Family
Processor model	E3-1225V2
Processor cores	4
Processor threads	4
Processor boost frequency	3.6 GHz
Processor frequency	3.2 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E3-1200 v2
Processor codename	Ivy Bridge
Thermal Design Power (TDP)	77 W
PCI Express configurations	1x16+1x4, 1x8+3x4, 2x8+1x4
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	32
Stepping	E1
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	32 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 2 GB
Memory slots	4x DIMM
Memory clock speed	1600 MHz
ECC	Yes
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	DVD Super Multi
Storage media	HDD
Total HDDs capacity	500 GB
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics P4000
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1250 MHz

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C216

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
DisplayPorts quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	2
Serial ports quantity	1

Expansion slots

Specification	Value
Number of 3.5" bays	1
PCI Express x4 slots	1
PCI Express x16 slots	1
PCI slots	1

Power

Specification	Value
Power supply	240 W

Design

Specification	Value
Chassis type	SFF
Number of 5.25" bays	1
Product colour	Black
Cooling type	Active
Country of origin	China

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Display

Specification	Value
Display included	Yes
Display diagonal	58.4 cm (23")
Full HD	Yes
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Contrast ratio (typical)	1000:1
Display brightness	250 cd/m²
Viewing angle, horizontal	178°
Viewing angle, vertical	178°

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	65733
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	HD

Weight & dimensions

Specification	Value
Width	338 mm
Depth	381 mm
Height	100 mm
Weight	7.5 kg

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR
