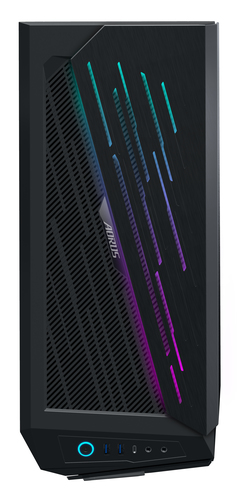

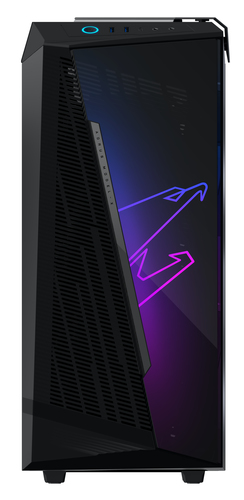

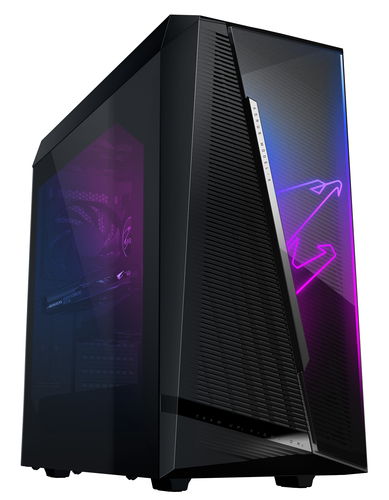

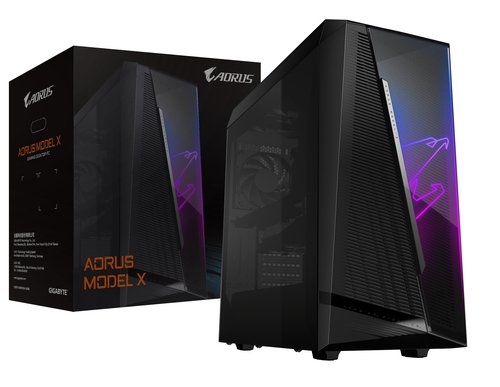

GB-AMXR9N8A-20A1 PC AMD Ryzen™ 9
5900X 32 GB DDR4-SDRAM 3 TB SSD NVIDIA GeForce RTX 3080 Tower Liquid cooling system Black
Model GB-AMXR9N8A-20A1EAN 4719331819842
89 specifications
- ProcessorAMD Ryzen™ 9
- Memory32 GB
- Storage3 TB
- GraphicsNVIDIA GeForce RTX 3080
- SpeedWi-Fi 6 (802.11ax)
- TypePC
Overview
- Processor
- AMD Ryzen™ 9
- Memory
- 32 GB
- Storage
- 3 TB
- Graphics
- NVIDIA GeForce RTX 3080
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- PC
- Brand
- GIGABYTE
- Category
- PCs/Workstations
- Model
- GB-AMXR9N8A-20A1
- Part number
- GB-AMXR9N8A-20A1
- EAN / UPC
- 4719331819842
- Also known as
- GIGABYTE GB-AMXR9N8A-20A1 PC AMD Ryzen™ 9 5900X 32 GB DDR4-SDRAM 3 TB SSD NVIDIA GeForce RTX 3080 Tower Liquid cooling system Black
Specifications
89 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 9 |
| Processor generation | AMD Ryzen 5000 Series |
| Processor model | 5900X |
| Processor cores | 12 |
| Processor threads | 24 |
| Processor boost frequency | 4.8 GHz |
| Processor frequency | 3.7 GHz |
| Processor cache | 64 MB |
| Processor cache type | L3 |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 4 x 8 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 3600 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 3 TB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 2 |
| Total SSDs capacity | 3 TB |
| Number of SSDs installed | 2 |
| NVMe | Yes |
| SSD interface | NVMe, PCI Express 3.0, PCI Express 4.0 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 3080 |
| Discrete graphics card memory | 10 GB |
| Discrete graphics memory type | GDDR6X |
| Number of discrete graphics cards | 1 |
| On-board graphics card model | Not available |
| Graphics card DisplayPorts quantity | 3 |
| Graphics card HDMI ports quantity | 2 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Gaming |
| Motherboard chipset | AMD X570 |
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX200 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |

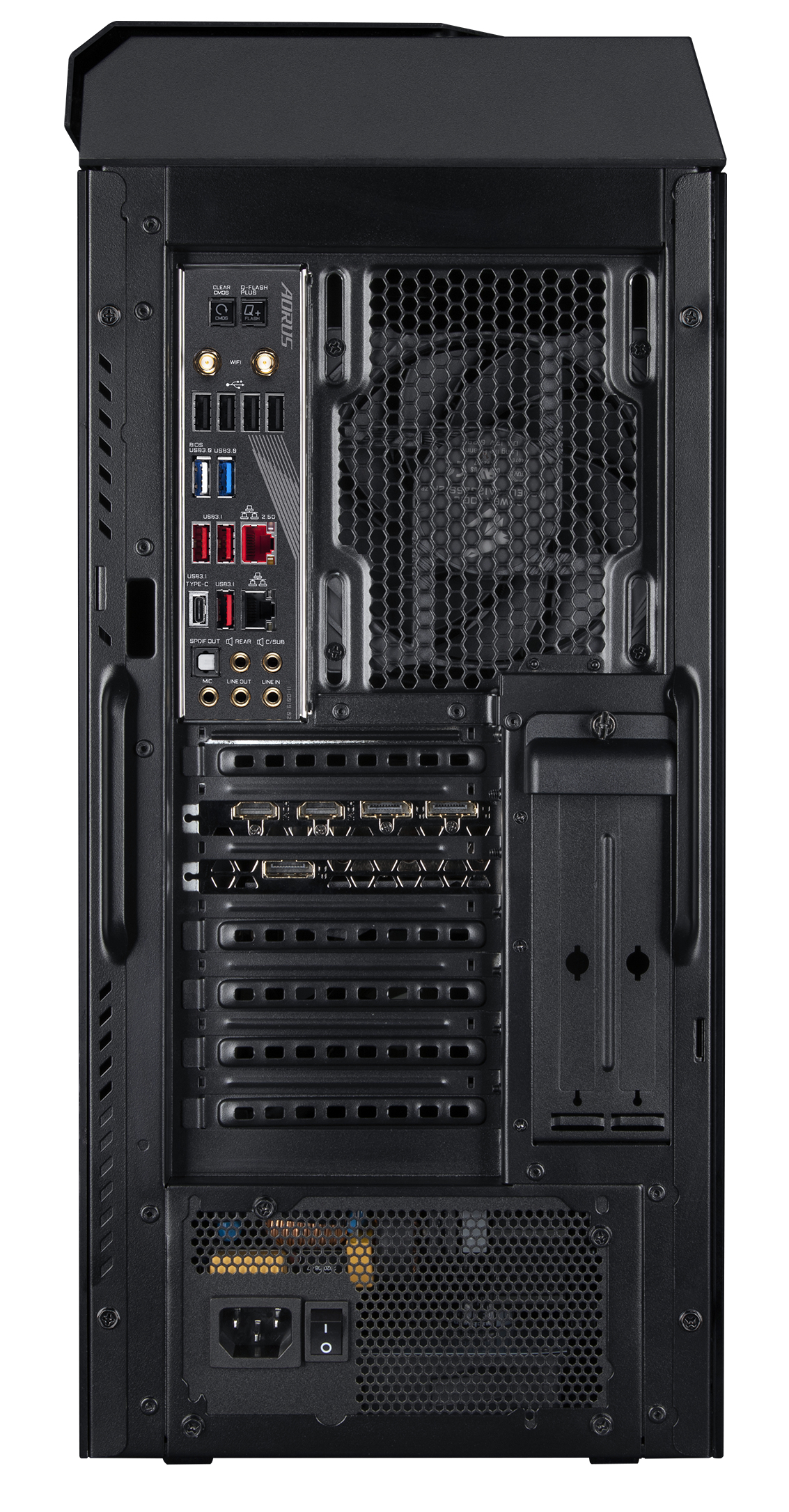

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Number of SATA III connectors | 5 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 2 |
| PCI Express x1 slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 850 W |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Volume | 58 L |
| Placement supported | Vertical |
| Number of 2.5" bays | 3 |
| Liquid cooling system | Yes |
| Product colour | Black |
| Viewing window | Yes |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC1220-VB |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 223 mm |
| Depth | 521 mm |
| Height | 500 mm |
| Weight | 17 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 635 mm |
| Package depth | 415 mm |
| Package height | 685 mm |
