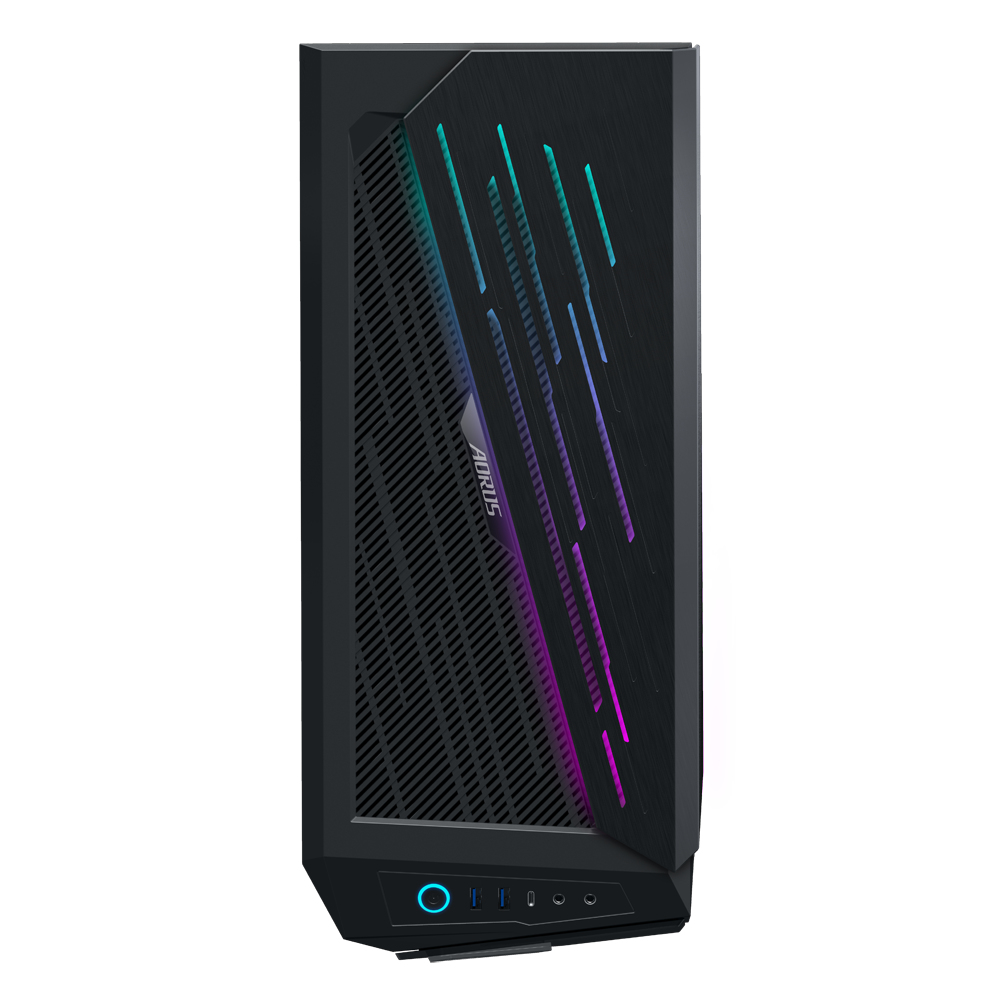

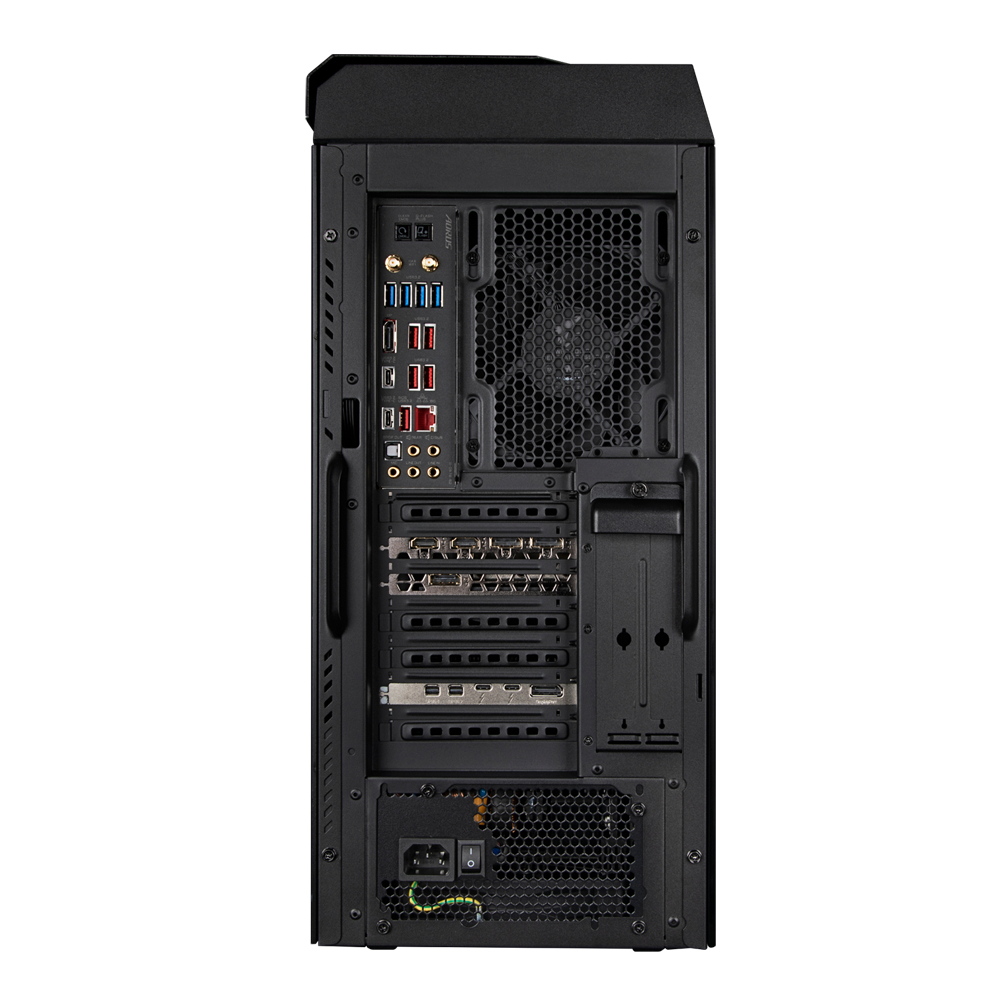

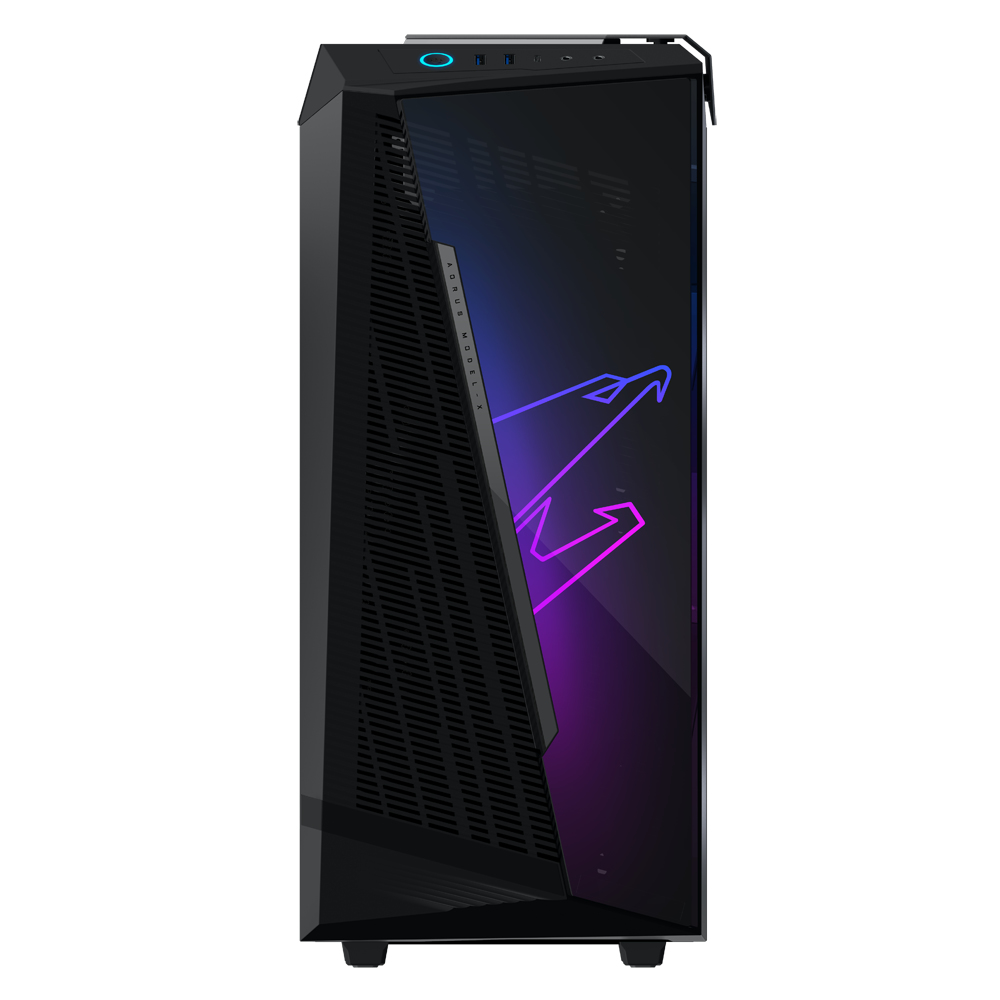

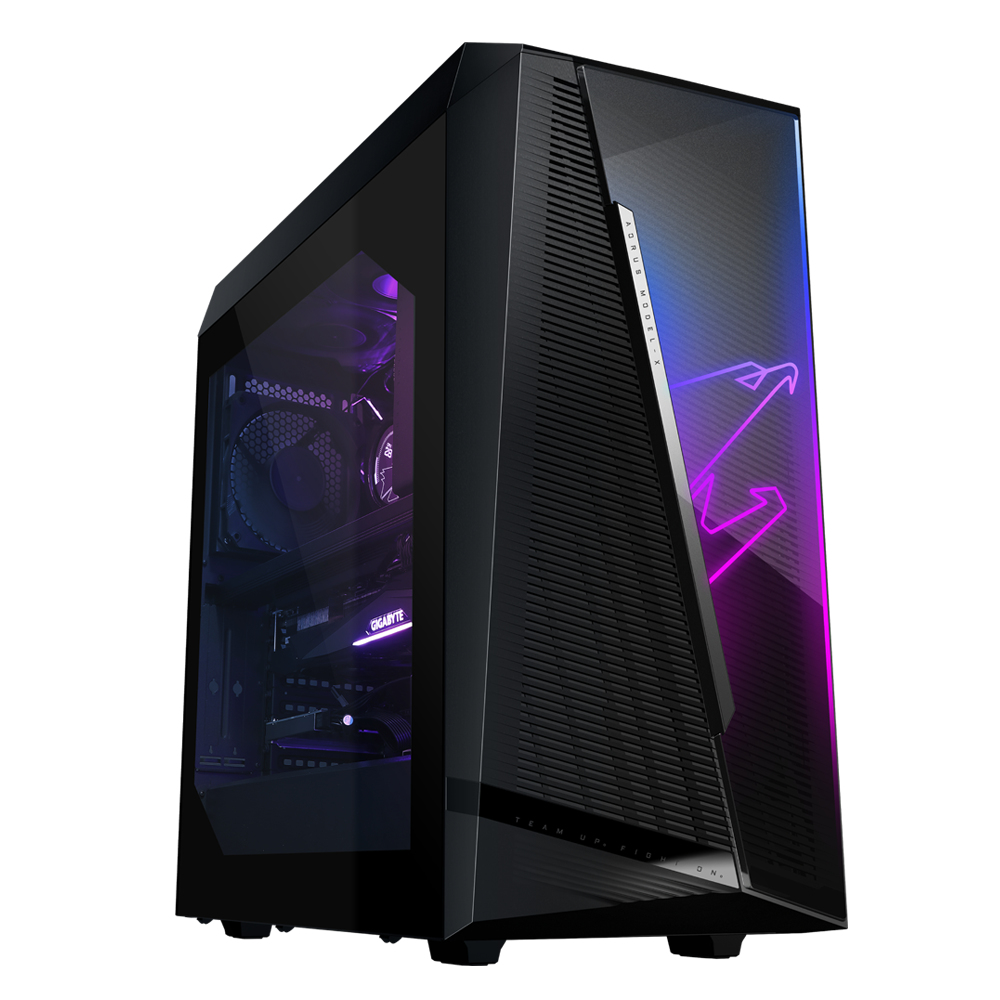

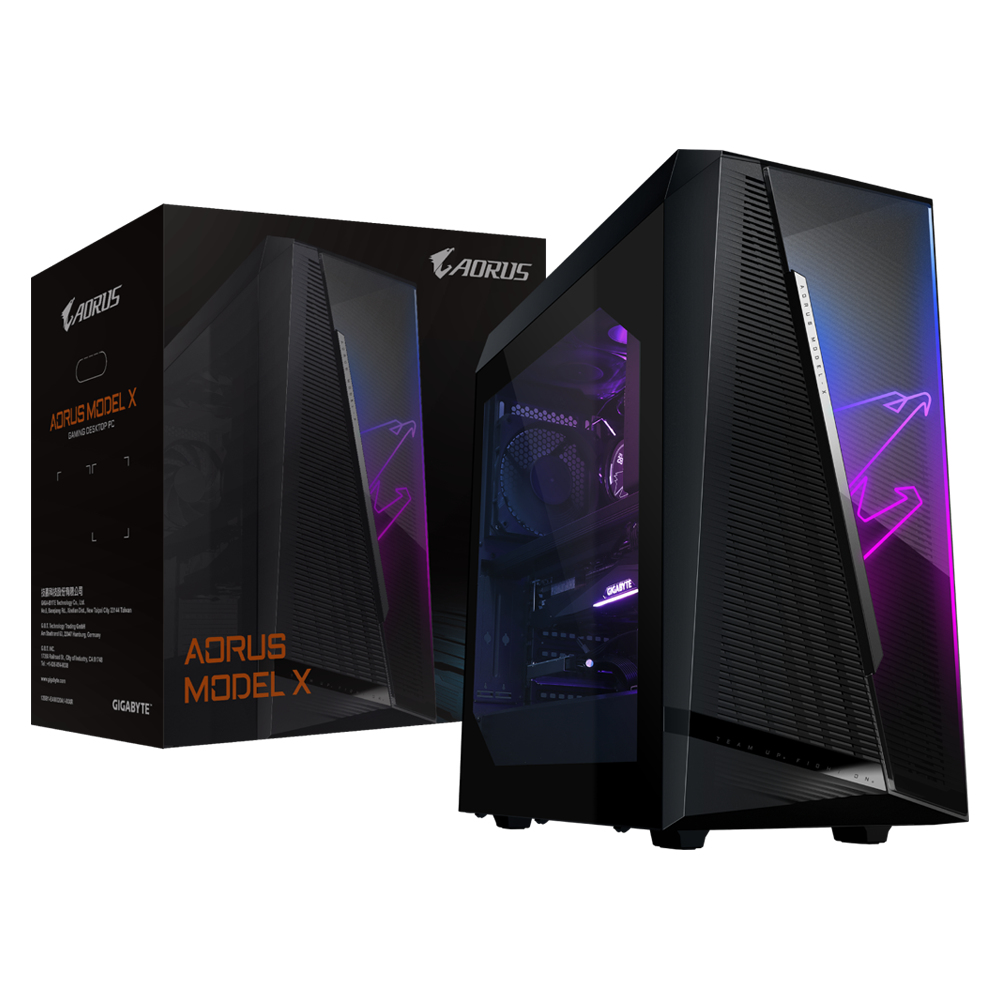

AORUS MODEL X
Model AORUS MODEL XPart no. AORUS MODEL X AMXI9N8A-2171EAN 4719331830403
93 specifications
- ProcessorIntel® Core™ i9
- Memory32 GB
- Storage2 TB
- GraphicsNVIDIA GeForce RTX 3080
- SpeedWi-Fi 6E (802.11ax)
- TypePC
Overview
- Processor
- Intel® Core™ i9
- Memory
- 32 GB
- Storage
- 2 TB
- Graphics
- NVIDIA GeForce RTX 3080
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- PC
- Brand
- GIGABYTE
- Category
- PCs/Workstations
- Model
- AORUS MODEL X
- Part number
- AORUS MODEL X AMXI9N8A-2171
- EAN / UPC
- 4719331830403
- Also known as
- GIGABYTE AORUS MODEL X Intel® Core™ i9 i9-12900K 32 GB DDR5-SDRAM 2 TB SSD NVIDIA GeForce RTX 3080 SFF PC Black
Specifications
93 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i9 |
| Processor generation | 12th gen Intel® Core™ i9 |
| Processor model | i9-12900K |
| Processor cores | 8 |
| Processor threads | 24 |
| Processor boost frequency | 5.1 GHz |
| Processor frequency | 2.4 GHz |
| Performance-core Max Turbo Frequency | 5.1 GHz |
| Efficient-core Max Turbo Frequency | 3.9 GHz |
| Performance-core base frequency | 3.2 GHz |
| Efficient-core base frequency | 2.4 GHz |
| Processor cache | 30 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI4 |
| Tjunction | 100 °C |
| Processor socket | LGA 1700 |
| Maximum turbo power | 241 W |
| Processor base power | 125 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5200 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 2 TB |
| SSD capacity | 2 TB |
| SSD interface | M.2, PCI Express 4.0 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 3080 |
| Discrete graphics card memory | 10 GB |
| Discrete graphics memory type | GDDR6X |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel UHD Graphics 770 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Gaming |
| Motherboard chipset | Intel Z690 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 11 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 2 |
| DisplayPorts quantity | 4 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Total number of SATA connectors | 6 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 850 W |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Volume | 58 L |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Standard Manageability | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Active Management Technology (Intel® AMT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal solution specification | PCG 2020A |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 223 mm |
| Depth | 512 mm |
| Height | 500 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Power |
