CELSIUS W570power+ Intel® Xeon® E3 v6 E3-1220V6
8 GB DDR4-SDRAM 256 GB SSD NVIDIA® Quadro® P600 Windows 10 Pro Desktop Workstation Black
Model W570power+Part no. VFY:W5700W17SBNCEAN 4057185822053
105 specifications
- ProcessorIntel® Xeon® E3 v6
- Memory8 GB
- Storage256 GB
- GraphicsNVIDIA® Quadro® P600
- TypeWorkstation
- OSWindows 10 Pro
Overview
- Processor
- Intel® Xeon® E3 v6
- Memory
- 8 GB
- Storage
- 256 GB
- Graphics
- NVIDIA® Quadro® P600
- Type
- Workstation
- OS
- Windows 10 Pro
- Brand
- Fujitsu
- Category
- PCs/Workstations
- Model
- W570power+
- Part numbers
- VFY:W5700W17SBNC, VFY:W5700W38SBBE, VFY:W5700W38SBNC, VFY:W5700W18ABIT, VFY:W5700W18SBIT, VFY:W5700W18BBIT +15 more
- EAN / UPC
- 4057185822053, 4057185822039, 4057185824057, 4057185823746 +15 more
- Also known as
- Fujitsu CELSIUS W570power+ Intel® Xeon® E3 v6 E3-1220V6 8 GB DDR4-SDRAM 256 GB SSD NVIDIA® Quadro® P600 Windows 10 Pro Desktop Workstation Black
Specifications
105 specifications in 20 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E3 v6 |
| Processor model | E3-1220V6 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 3.5 GHz |
| Processor frequency | 3 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Kaby Lake |
| Thermal Design Power (TDP) | 72 W |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1151 (Socket H4) |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR3L, DDR4-SDRAM |
| Memory clock speeds supported by processor | 1866,2400 MHz |
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 2400 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Optical drive type | DVD Super Multi |
| Storage media | SSD |
| HDD size | 2.5" |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | SATA III |
| Card reader integrated | Yes |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete graphics card model | NVIDIA® Quadro® P600 |
| On-board graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® C236 |
| BIOS type | AMI |
| Audio output channels | 5.1 channels |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |

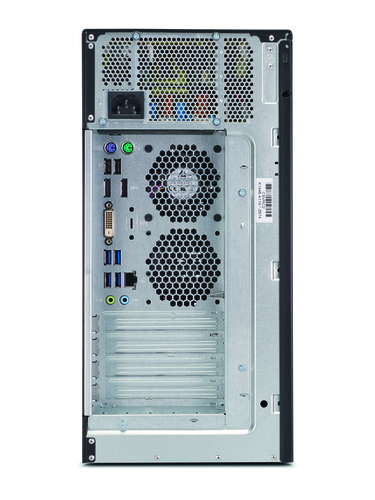

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 7 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| PS/2 ports quantity | 2 |
| DC-in jack | Yes |
| SmartCard slot | Yes |

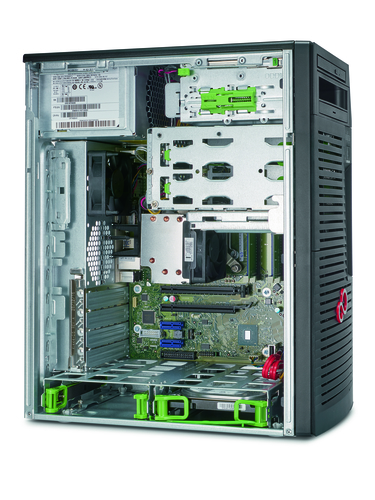

Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 4 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 400 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |

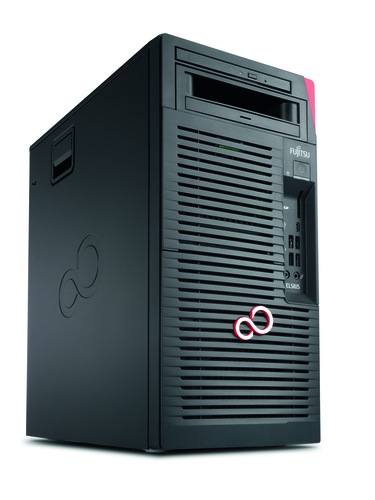

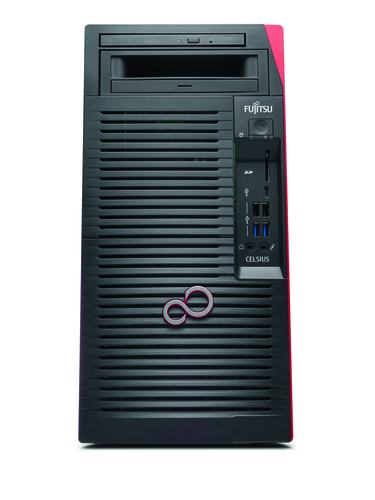

Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Placement supported | Vertical |
| Number of 5.25" bays | 2 |
| Number of 2.5" bays | 1 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Pre-installed software | Microsoft Office; McAfee Multi Access Security; Adobe Reader |
| Trial software | McAfee Multi Access Security |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Conflict-Free processor | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC671 |
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 5 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 304 mm |
| Height | 375 mm |
| Weight | 12 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
| AC adapter included | Yes |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | WEEE, GS, FCC Class B, cCSAus, CCC |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
