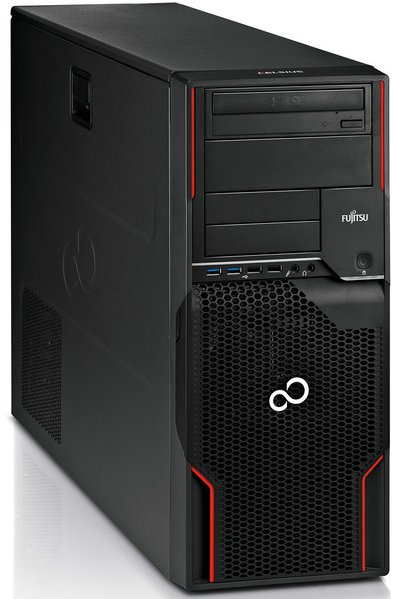

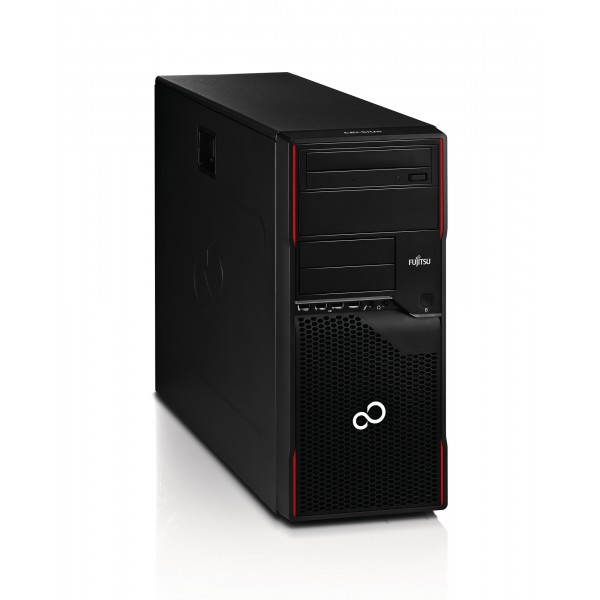

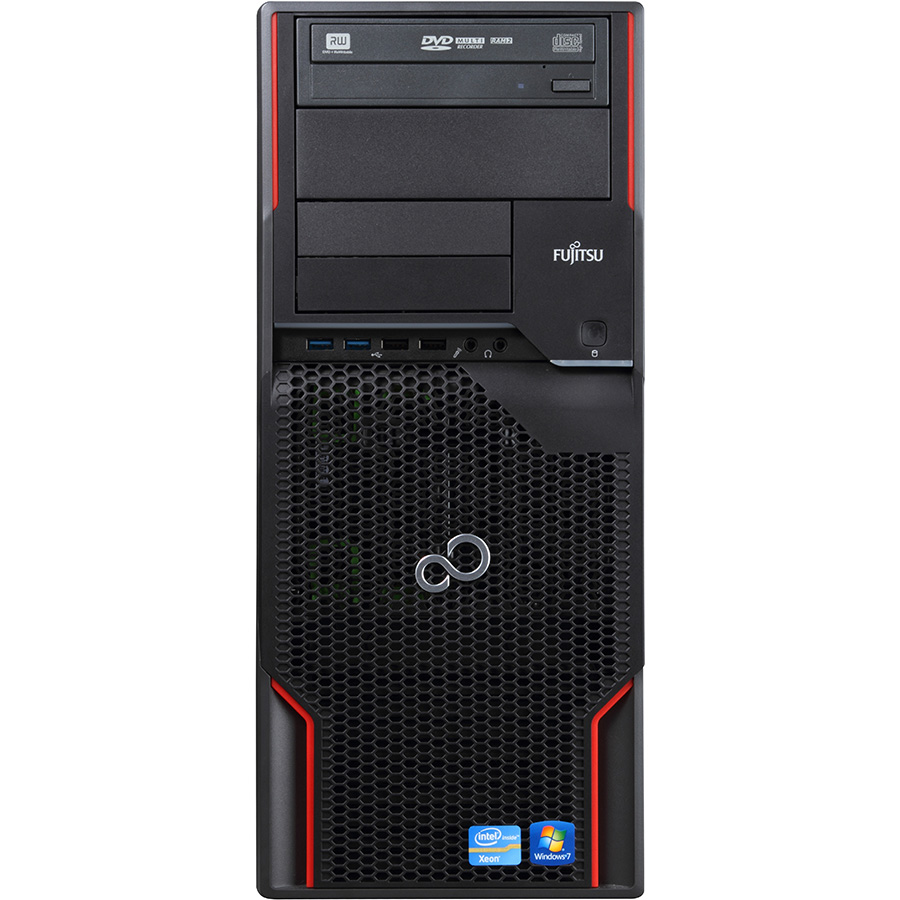

CELSIUS W520power Intel® Xeon® E3 V2 Family E3-1275V2
16 GB DDR3-SDRAM Windows 7 Professional Tower Workstation
Model W520powerPart no. VFY:W5200W0001IT
140 specifications
- ProcessorIntel® Xeon® E3 V2 Family
- Memory16 GB
- Storage2 TB
- TypeWorkstation
- OSWindows 7 Professional
- Weight16 kg
Overview
- Processor
- Intel® Xeon® E3 V2 Family
- Memory
- 16 GB
- Storage
- 2 TB
- Type
- Workstation
- OS
- Windows 7 Professional
- Weight
- 16 kg
- Brand
- Fujitsu
- Category
- PCs/Workstations
- Model
- W520power
- Part number
- VFY:W5200W0001IT
- Also known as
- Fujitsu CELSIUS W520power Intel® Xeon® E3 V2 Family E3-1275V2 16 GB DDR3-SDRAM Windows 7 Professional Tower Workstation
Specifications
140 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E3 V2 Family |
| Processor model | E3-1275V2 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.9 GHz |
| Processor frequency | 3.5 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI |
| FSB Parity | No |
| System bus rate | 5 GT/s |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E3-1200 v2 |
| Processor codename | Ivy Bridge |
| Thermal Design Power (TDP) | 77 W |
| PCI Express configurations | 1x16+1x4, 1x8+3x4, 2x8+1x4 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1155 (Socket H2) |
| CPU multiplier (bus/core ratio) | 35 |
| Maximum number of SMP processors | 1 |
| Stepping | E1 |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 4 x 4 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 1600 MHz |
| Maximum internal memory | 32768 MB |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Optical drive type | DVD Super Multi |
| Number of HDDs installed | 1 |
| HDD capacity | 2 TB |
| HDD interface | SATA III |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics P4000 |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1250 MHz |
| Maximum graphics card memory | 1.759 GB |
| Graphics card | HD Graphics P4000 |
| Graphics card family | Intel |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® C216 |
| Motherboard form factor | ATX |
| Password protection type | BIOS |
| Audio output channels | 5.1 channels |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet (10/100/1000) |

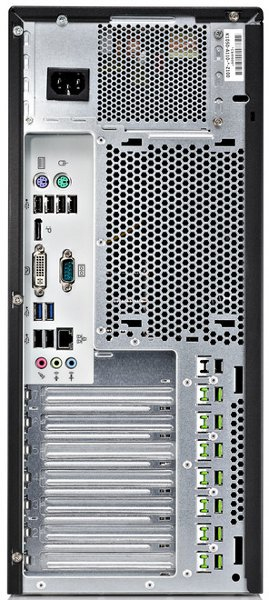

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 10 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| PS/2 ports quantity | 2 |
| eSATA ports quantity | 1 |
| Serial ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|

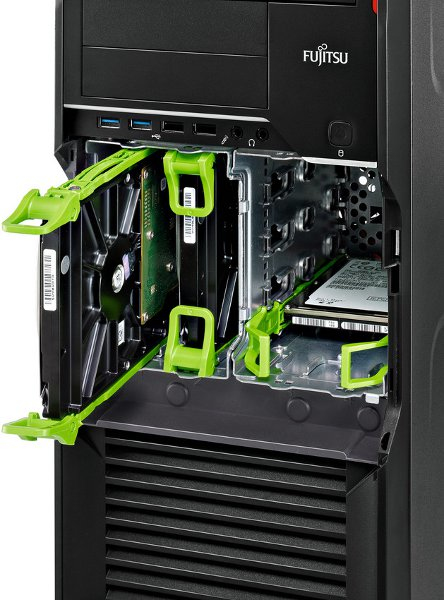

| Number of 3.5" bays | 6 |
| PCI Express x1 slots | 3 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
Power
| Specification | Value |
|---|---|
| Power supply | 300 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Number of 5.25" bays | 2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Rack mounting | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
| Optional operating system supplied | Windows 7 Professional 32-bit |
| Compatible operating systems | Windows 7 Professional 64-bit Windows 7 Professional 32-bit Windows 7 Home Premium 64-bit Windows 8 Pro Windows 8 |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | No |
| Intel® Smart Cache | Yes |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 65726 |
| Processor code | SR0PA |
| Processor package size | 37.5 x 37.5 mm |
| Supported instruction sets | AVX, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | CX20642 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | 5 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 186 mm |
| Depth | 481 mm |
| Height | 430 mm |
| Weight | 16 kg |
| Dimensions (WxDxH) | 186 x 481 x 430 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | TÜV GS, CE, WEEE |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| HDD user password | Yes |
