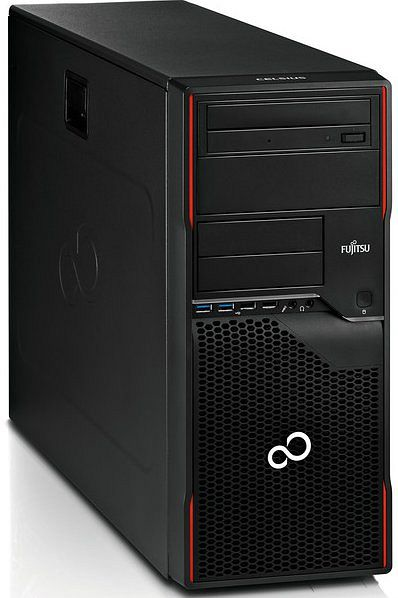

W420 proGREEN

Model W420 proGREENPart no. VFY:W4200WXG11DE FSP:GA3S10Z00DEWSW

121 specifications

ProcessorIntel® Core™ i7
Memory8 GB
Storage500 GB
TypeWorkstation
OSWindows 7 Professional
Weight11 kg

See all specifications

Overview

Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 500 GB
Type: Workstation
OS: Windows 7 Professional
Weight: 11 kg

Brand: Fujitsu
Category: PCs/Workstations
Model: W420 proGREEN
Part number: VFY:W4200WXG11DE FSP:GA3S10Z00DEWSW
Also known as: Fujitsu CELSIUS W420 proGREEN Intel® Core™ i7 i7-3770 8 GB DDR3-SDRAM Windows 7 Professional Tower Workstation

Specifications

121 specifications in 14 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	3rd gen Intel® Core™ i7
Processor model	i7-3770
Processor cores	4
Processor threads	8
Processor boost frequency	3.9 GHz
Processor frequency	3.4 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-3700 Desktop series
Processor codename	Ivy Bridge
Thermal Design Power (TDP)	77 W
Tcase	67.4 °C
Tjunction	105 °C
PCI Express configurations	1x8, 1x16, 2x4, 2x8
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	34
Maximum number of SMP processors	1
Stepping	E1
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	32 GB
Internal memory type	DDR3-SDRAM
Memory slots	4x DIMM
Memory channels	Dual-channel

Storage

Specification	Value
Optical drive type	DVD Super Multi
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA III
HDD speed	7200 RPM
Card reader integrated	Yes
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4000
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card ID	0x162
Graphics card	Quadro 600
Graphics card family	Intel, NVIDIA

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® Q77 Express

Network

Specification	Value
Networking features	Gigabit Ethernet (10/100/1000)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
PS/2 ports quantity	0
Serial ports quantity	1

Design

Specification	Value
Chassis type	Tower
Placement supported	Horizontal
Rack mounting	No

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Mac compatibility	No

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Secure Key	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	65719
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2011D
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	Yes
