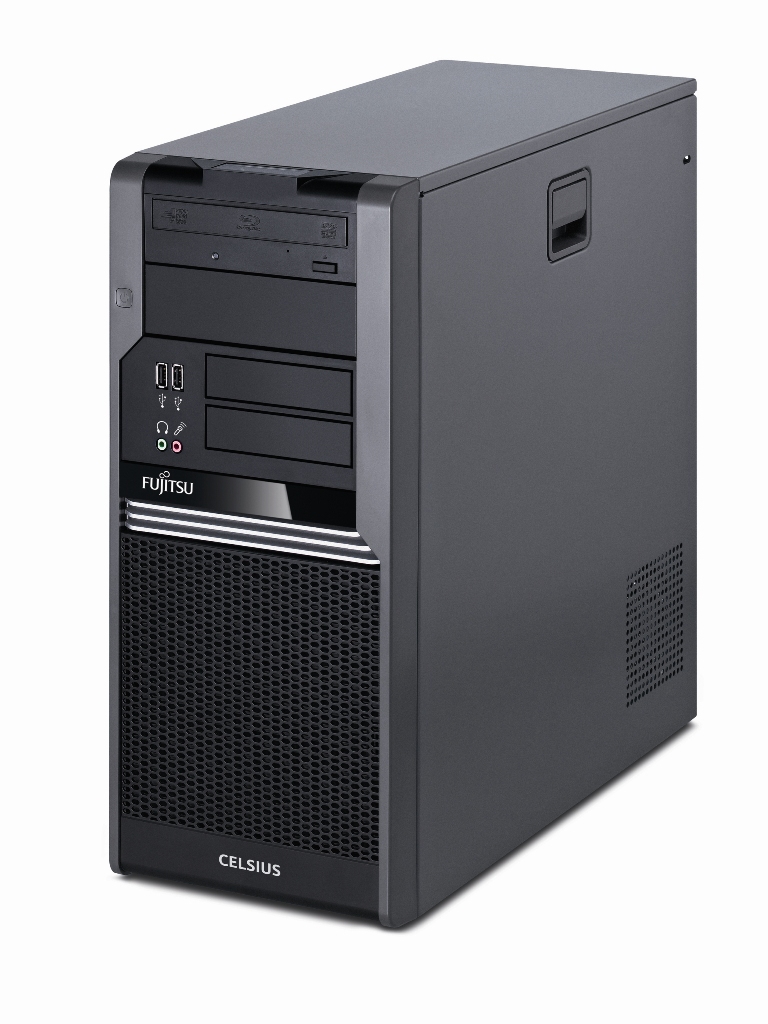

CELSIUS W380 Intel® Xeon® 3000 Sequence X3430
4 GB Windows 7 Professional Tower Workstation Black
Model W380Part no. VFY:W3800WF081ITEAN 4049699326820
107 specifications
- ProcessorIntel® Xeon® 3000 Sequence
- Memory4 GB
- Storage500 GB
- TypeWorkstation
- OSWindows 7 Professional
- Weight16 kg
Overview
- Processor
- Intel® Xeon® 3000 Sequence
- Memory
- 4 GB
- Storage
- 500 GB
- Type
- Workstation
- OS
- Windows 7 Professional
- Weight
- 16 kg
- Brand
- Fujitsu
- Category
- PCs/Workstations
- Model
- W380
- Part numbers
- VFY:W3800WF081IT, VFY:W3800WF051DE FSP:GA3S10Z00DEWSW, VFY:W3800WF051DE FSP:GA3S20Z00DEWSW, VFY:W3800WF011IT, VFY:W3800WF021IT, VFY:W3800WF061IT +7 more
- EAN / UPC
- 4049699326820, 4049699368790, 4049699359224, 4049699369148 +7 more
- Also known as
- Fujitsu CELSIUS W380 Intel® Xeon® 3000 Sequence X3430 4 GB Windows 7 Professional Tower Workstation Black
Specifications
107 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 3000 Sequence |
| Processor model | X3430 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 2.8 GHz |
| Processor frequency | 2.4 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI |
| FSB Parity | No |
| System bus rate | 2.5 GT/s |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon 3400 Series |
| Processor codename | Lynnfield |
| Thermal Design Power (TDP) | 95 W |
| Tcase | 72.7 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 4x4 |
| PCI Express slots version | 2.0 |
| Processor socket | LGA 1156 (Socket H) |
| Number of Processing Die Transistors | 774 M |
| Processing Die size | 296 mm² |
| CPU multiplier (bus/core ratio) | 18 |
| Stepping | B1 |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory bandwidth supported by processor (max) | 21 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 16 GB |
| Memory layout (slots x size) | 2 x 2 GB |
| Memory clock speed | 1333 MHz |
| ECC | Yes |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Optical drive type | DVD Super Multi |
| HDD capacity | 500 GB |
| HDD interface | SATA II |
| HDD speed | 7200 RPM |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 0.256 GB |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® 3450 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 13 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 3 |
Power
| Specification | Value |
|---|---|
| Power supply | 300 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Compatible operating systems | Windows XP/Vista Linux |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 36 bit |
| Processor ARK ID | 42927 |
| Processor code | SLBLJ |
| Processor package size | 37.5 x 37.5 mm |
| Supported instruction sets | SSE4.2 |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 203 mm |
| Depth | 426 mm |
| Height | 442 mm |
| Weight | 16 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class B cCSAus RoHS (EU & China) ENERGY STAR 5.0 Medical EMC standard IEC60601-1-2 Energy Star |
