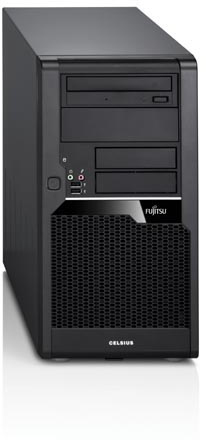

Fujitsu W280 + B22W-6

Model W280 + B22W-6Part no. VFY:W2800WXG21DE/KIT

136 specifications

Display55.9 cm (22")
ProcessorIntel® Core™ i7
Memory4 GB
Storage500 GB
TypeWorkstation
OSWindows 7 Professional

See all specifications

Overview

Display: 55.9 cm (22")
Processor: Intel® Core™ i7
Memory: 4 GB
Storage: 500 GB
Type: Workstation
OS: Windows 7 Professional

Brand: Fujitsu
Category: PCs/Workstations
Model: W280 + B22W-6
Part number: VFY:W2800WXG21DE/KIT
Also known as: Fujitsu CELSIUS W280 + B22W-6 Intel® Core™ i7 i7-870 4 GB DDR3-SDRAM Windows 7 Professional Tower Workstation Black

Specifications

136 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7
Processor model	i7-870
Processor cores	4
Processor threads	8
Processor boost frequency	3.6 GHz
Processor frequency	2.93 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	2.5 GT/s
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-800 Desktop Series
Processor codename	Lynnfield
Thermal Design Power (TDP)	95 W
Tcase	72.7 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1156 (Socket H)
Number of Processing Die Transistors	774 M
Processing Die size	296 mm²
CPU multiplier (bus/core ratio)	22
Stepping	B1
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3 1066/1333
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 2 GB
Memory slots	4x DIMM
Memory clock speed	1333 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Optical drive type	DVD Super Multi
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA II
HDD speed	7200 RPM
Card reader integrated	Yes
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

Specification	Value
Maximum graphics card memory	0.5 GB
Graphics card	FirePro V3800
Graphics card family	AMD

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® Q57 Express
Compatible processor series	Intel® Core™ i7
Password protection type	BIOS
Audio output channels	5.1 channels

Network

Specification	Value
Networking features	Gigabit Ethernet (10/100/1000)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	12
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	2
eSATA ports quantity	1
Serial ports quantity	1

Expansion slots

Specification	Value
Number of 3.5" bays	4
PCI Express x4 slots	1
PCI Express x16 slots	1
PCI slots	2

Power

Specification	Value
Power supply	300 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Design

Specification	Value
Chassis type	Tower
Number of 5.25" bays	2
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black
External drive bays	2x 3.5", 2x 5.25"
Internal drive bays	2x 3.5"

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Compatible operating systems	Windows 7/Vista/XP Linux Red Hat Novell

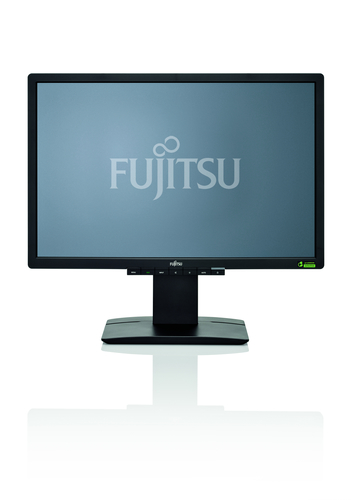

Display

Specification	Value
Display included	Yes
Display diagonal	55.9 cm (22")
Display number of colours	16.78 million colours
Display	LED
Resolution	1680 x 1050 pixels

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	41315
Processor code	SLBJG
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	1.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	HD

Operational conditions

Specification	Value
Operating temperature (T-T)	15 - 35 °C
Operating relative humidity (H-H)	10 - 75%

Weight & dimensions

Specification	Value
Width	23 mm
Depth	390 mm
Height	392 mm
Weight	12 kg

Packaging content

Specification	Value
Mouse included	Yes

Certificates

Specification	Value
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Certification	CE, FCC, cCSAus, RoHS

Other features

Specification	Value
HDD user password	Yes
