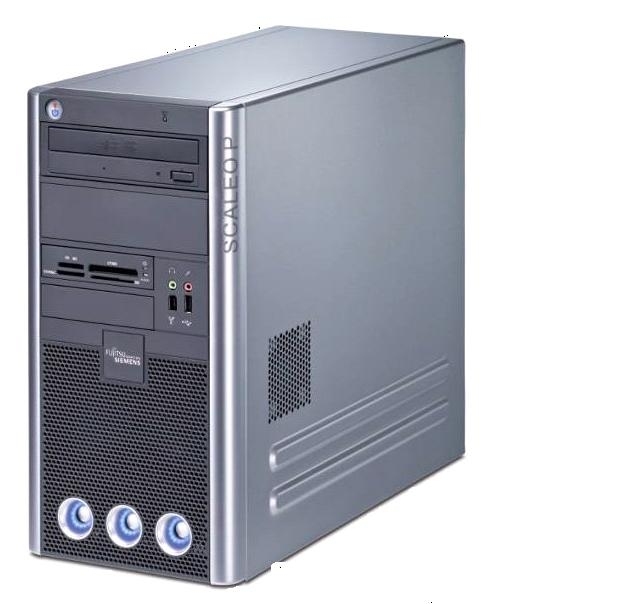

Fujitsu SCALEO Pi 2560 Q6600 4096MB DDR2 640GB

Model SCALEO Pi 2560 Q6600 4096MB DDR2 640GBPart no. CUZ:P-NDL-VARIO061

107 specifications

ProcessorIntel® Core™2 Quad
Memory4 GB
Storage640 GB
TypePC
OSWindows Vista Home Basic
Weight12.5 kg

See all specifications

Overview

Processor: Intel® Core™2 Quad
Memory: 4 GB
Storage: 640 GB
Type: PC
OS: Windows Vista Home Basic
Weight: 12.5 kg

Brand: Fujitsu
Category: PCs/Workstations
Model: SCALEO Pi 2560 Q6600 4096MB DDR2 640GB
Part number: CUZ:P-NDL-VARIO061
Also known as: Fujitsu SCALEO Pi 2560 Q6600 4096MB DDR2 640GB Intel® Core™2 Quad 4 GB DDR2-SDRAM Windows Vista Home Basic Desktop PC

Specifications

107 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Quad
Processor model	Q6600
Processor cores	4
Processor threads	4
Processor frequency	2.4 GHz
Processor cache	8 MB
Processor cache type	L2
Processor front side bus	1066 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Quad Q6000 Series
Processor codename	Kentsfield
Thermal Design Power (TDP)	95, 105
Tcase	B3=62.2; G0=71
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	582 M
Processing Die size	286 mm²
CPU multiplier (bus/core ratio)	9
Processor core voltage (AC)	0.85 - 1.5 V
Stepping	G0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	4 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	4 x 1 GB
Memory upgrade	750 GB

Storage

Specification	Value
Total storage capacity	640 GB
HDD speed	7200 RPM
Card reader integrated	Yes

Graphics

Specification	Value
Video card features	NVIDIA GeForce 9500 GS
Graphics card multiple display support	DirectX 10
Graphics card direct 3D support	3D Mark 2006
Video RAM	512

Performance

Specification	Value
Product type	PC
Password protection type	BIOS

Network

Specification	Value
Ethernet LAN data rates	1000 Mbit/s
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	5
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	6
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	2
eSATA ports quantity	4
SmartCard slot	Yes
Serial ports quantity	1
Parallel ports quantity	1
Video in	VGA, DVI, HDMI

Expansion slots

Specification	Value
PCI Express x1 slots	1
PCI Express x16 slots	1

Power

Specification	Value
Power supply type	AC
Power supply input voltage	220 - 240 V
Power supply input frequency	50 - 60 Hz
Power management	ATX
Power availability	350 W

Design

Specification	Value
Chassis type	Desktop

Software

Specification	Value
Operating system installed	Windows Vista Home Basic
Drivers included	Yes
Trial software	-Microsoft Works, -Microsoft Office Home and Student Trial, -Adobe Acrobat Reader, -Nero Essentials S, CD/DVD burning software, -Norman or Symantec security software solutions, -Country specific Internet Service Providers.
Bundled software	Microsoft Windows Vista Home Premium/ Microsoft Windows Vista Home Basic
CD/DVD writing software	Nero Essentials S, CD/DVD burning

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	29765
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Supported audio standards	7.1

Operational conditions

Specification	Value
Operating temperature (T-T)	15 - 35 °C

Weight & dimensions

Specification	Value
Width	200 mm
Depth	435 mm
Height	373 mm
Weight	12.5 kg

Certificates

Specification	Value
Certification	Product Safety:IEC60950-1,EN60950-1,LVD 2006/95/EC Electromagnetical: EN55022/B,EN55024,EN61000-3-2/3,EMC 2004/108/EC Environmental: FSC-03230,RoHS Hardware: WHQL, Windows Catalog,IEEE1394 (FireWire), USB 2.0

Other features

Specification	Value
Security features	Password: Setup+Boot
