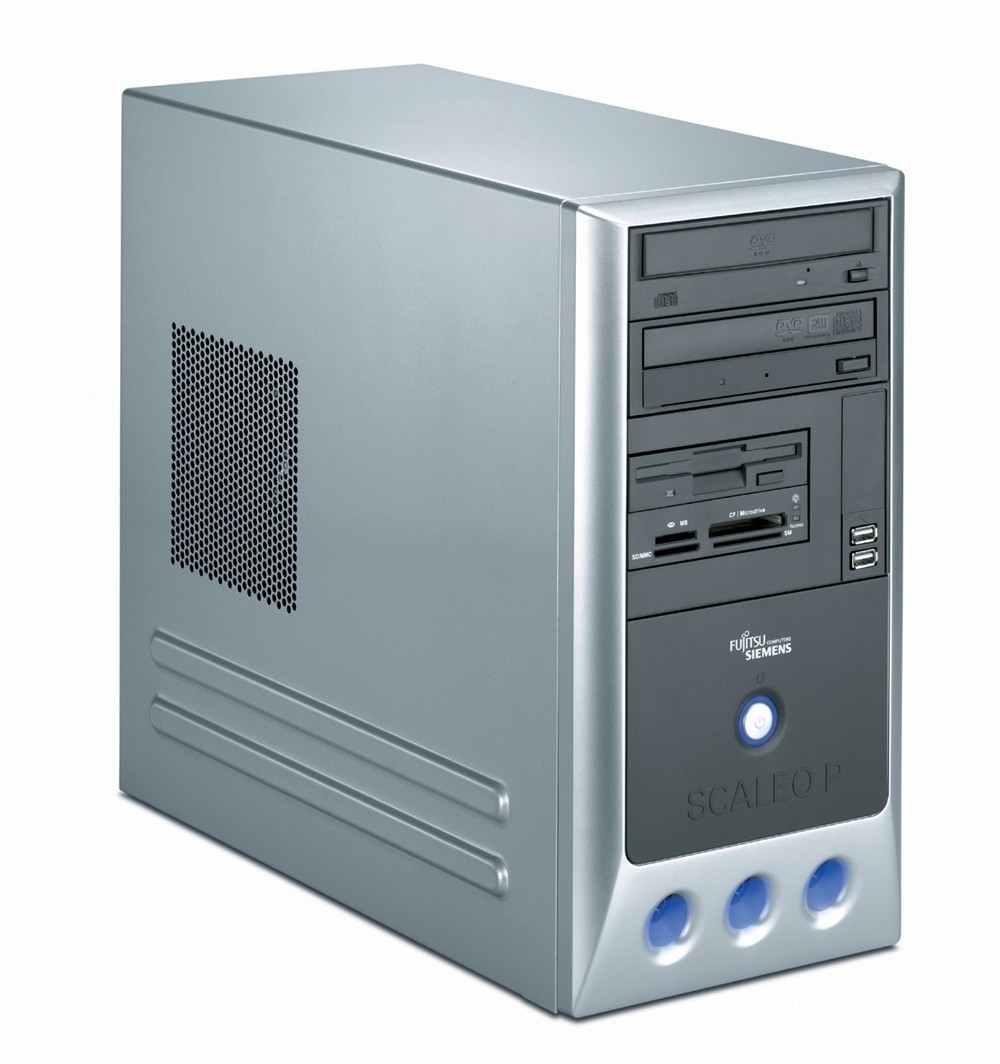

Fujitsu SCALEO Pi 1522-B43002

Model SCALEO Pi 1522-B43002Part no. BAT:FR-P7PXM4-001

90 specifications

Overview

Brand: Fujitsu
Category: PCs/Workstations
Model: SCALEO Pi 1522-B43002
Part number: BAT:FR-P7PXM4-001
Also known as: Fujitsu SCALEO Pi 1522-B43002 Intel® Core™2 Duo E4300 1 GB DDR2-SDRAM 320 GB NVIDIA® GeForce® 7300 Windows Vista Home Premium Tower PC

90 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	E4300
Processor cores	2
Processor threads	2
Processor frequency	1.8 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	800 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo E4000 Series
Processor codename	Conroe
Thermal Design Power (TDP)	65 W
Scenario Design Power (SDP)	12 W
Tcase	61.4 °C
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	167 M
Processing Die size	111 mm²
CPU multiplier (bus/core ratio)	9
Processor core voltage (AC)	1.225 - 1.325 V
ECC supported by processor	No

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM

Specification	Value
Discrete graphics card model	NVIDIA® GeForce® 7300
Discrete graphics card memory	0.256 GB

Specification	Value
Product type	PC

Specification	Value
Networking features	Gigabit Ethernet

Specification	Value
Power supply	350 W
Power supply input voltage	200 - 240 V
Power supply input frequency	50 - 60 Hz

Specification	Value
Chassis type	Tower

Specification	Value
Operating system installed	Windows Vista Home Premium

Specification	Value
Display included	No

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	28024
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Specification	Value
Operating temperature (T-T)	10 - 35 °C
