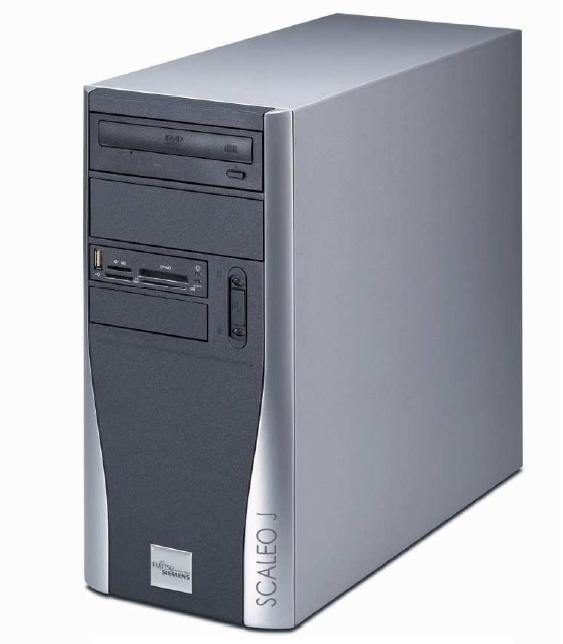

Fujitsu SCALEO Ji 1603
Model SCALEO Ji 1603Part no. BAT:CZ-P7PXM1-001EAN 4045827985419
79 specifications
- ProcessorIntel® Pentium® 4
- Memory0.5 GB
- Storage160 GB
- GraphicsAMD Radeon Xpress 1100
- TypePC
- OSWindows Vista Home Basic
Overview
- Processor
- Intel® Pentium® 4
- Memory
- 0.5 GB
- Storage
- 160 GB
- Graphics
- AMD Radeon Xpress 1100
- Type
- PC
- OS
- Windows Vista Home Basic
- Brand
- Fujitsu
- Category
- PCs/Workstations
- Model
- SCALEO Ji 1603
- Part numbers
- BAT:CZ-P7PXM1-001, BAT:NL-P7EAS1B-01
- EAN / UPC
- 4045827985419
- Also known as
- Fujitsu SCALEO Ji 1603 Intel® Pentium® 4 630 0.5 GB DDR2-SDRAM 160 GB AMD Radeon Xpress 1100 Windows Vista Home Basic Micro Tower PC
Specifications
79 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® 4 |
| Processor model | 630 |
| Processor cores | 1 |
| Processor threads | 2 |
| Processor frequency | 3 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor front side bus | 800 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 90 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium 4 600 Series supporting Hyper-Threading Technology |
| Processor codename | Prescott |
| Thermal Design Power (TDP) | 84 W |
| Tcase | 66.6 °C |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 169 M |
| Processing Die size | 135 mm² |
| CPU multiplier (bus/core ratio) | 15 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 0.5 GB |
| Internal memory type | DDR2-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 160 GB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | AMD Radeon Xpress 1100 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Network
| Specification | Value |
|---|---|
| Modem speed | 56 Kbit/s |
| Networking features | Ethernet/Fast Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| Modem (RJ-11) ports | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Micro Tower |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Home Basic |
| Bundled software | Works 8, Nero 7 Essentials, Norton Internet Security 2007 |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 27478 |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio 7.1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 185 mm |
| Depth | 410 mm |
| Height | 370 mm |
| Weight | 11 kg |
