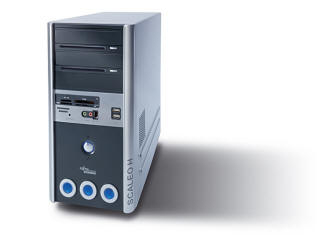

Fujitsu SCALEO Hi 2553

Model SCALEO Hi 2553Part no. CCN:GER-100605-002EAN 4333643194192

92 specifications

ProcessorIntel® Core™2 Quad
Memory2 GB
Storage500 GB
GraphicsNVIDIA GeForce 8600 GS
TypePC
OSWindows Vista Home Premium

See all specifications

Overview

Processor: Intel® Core™2 Quad
Memory: 2 GB
Storage: 500 GB
Graphics: NVIDIA GeForce 8600 GS
Type: PC
OS: Windows Vista Home Premium

Brand: Fujitsu
Category: PCs/Workstations
Model: SCALEO Hi 2553
Part number: CCN:GER-100605-002
EAN / UPC: 4333643194192
Also known as: Fujitsu SCALEO Hi 2553 Intel® Core™2 Quad Q6600 2 GB DDR2-SDRAM 500 GB NVIDIA GeForce 8600 GS Windows Vista Home Premium Mini Tower PC

Specifications

92 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Quad
Processor model	Q6600
Processor cores	4
Processor threads	4
Processor frequency	2.4 GHz
Processor cache	8 MB
Processor cache type	L2
Processor front side bus	1066 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Quad Q6000 Series
Processor codename	Kentsfield
Thermal Design Power (TDP)	95, 105
Tcase	B3=62.2; G0=71
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	582 M
Processing Die size	286 mm²
CPU multiplier (bus/core ratio)	9
Processor core voltage (AC)	0.85 - 1.5 V
Stepping	G0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 1 GB

Storage

Specification	Value
Total storage capacity	500 GB
HDD interface	SATA II
HDD speed	7200 RPM

Graphics

Specification	Value
Discrete graphics card model	NVIDIA GeForce 8600 GS
Maximum graphics card memory	0.5 GB

Performance

Specification	Value
Product type	PC

Network

Specification	Value
Networking features	Gigabit Ethernet
Wireless technology	IEEE 802.11b/g

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	7
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
Firewire (IEEE 1394) ports	2
eSATA ports quantity	1
S/PDIF out port	Yes
TV-out	Yes
TV-out type	S-Video

Expansion slots

Specification	Value
Expansion slots	1 x PCI Express 16x 1 x PCI Express 1x 2 x PCI 5 x SATA

Power

Specification	Value
Power supply	400 W
Power supply input voltage	220 - 240 V
Power supply input frequency	50 - 60 Hz

Design

Specification	Value
Chassis type	Mini Tower

Software

Specification	Value
Operating system installed	Windows Vista Home Premium

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	29765
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	HD

Operational conditions

Specification	Value
Operating temperature (T-T)	15 - 35 °C

Weight & dimensions

Specification	Value
Width	200 mm
Depth	454 mm
Height	408.5 mm
Weight	12.2 kg

Certificates

Specification	Value
Certification	IEC60950-1, EN60950-1, LVD 2006/95/EC, EN55022/B, EN55024, EN61000-3-2/3, EMC 2004/108/EC, WHQL
