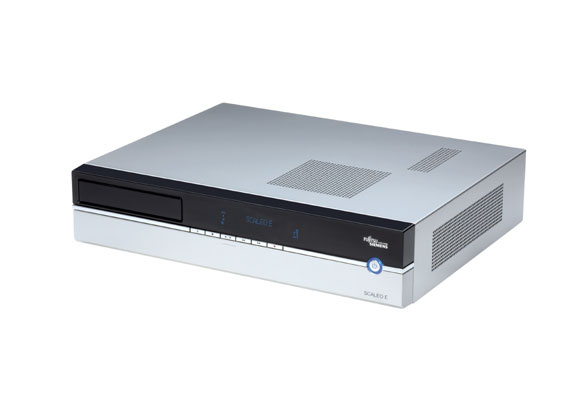

SCALEO EVi 2535
Model SCALEO EVi 2535Part no. CCN:CRE-100117-002
87 specifications
- ProcessorIntel® Core™2 Duo
- Memory1 GB
- Storage250 GB
- GraphicsIntel® GMA X3000
- TypePC
- OSWindows Vista Home Premium
Overview
- Processor
- Intel® Core™2 Duo
- Memory
- 1 GB
- Storage
- 250 GB
- Graphics
- Intel® GMA X3000
- Type
- PC
- OS
- Windows Vista Home Premium
- Brand
- Fujitsu
- Category
- PCs/Workstations
- Model
- SCALEO EVi 2535
- Part numbers
- CCN:CRE-100117-002, CCN:CRE-100117-004, CCN:CRE-100117-007, CCN:CRE-100117-006
- Also known as
- Fujitsu SCALEO EVi 2535 Intel® Core™2 Duo E6300 1 GB DDR2-SDRAM 250 GB Intel® GMA X3000 Windows Vista Home Premium Desktop PC
Specifications
87 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | E6300 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.86 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor front side bus | 1066 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor codename | Conroe |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 61.4 °C |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 167 M |
| Processing Die size | 111 mm² |
| CPU multiplier (bus/core ratio) | 7 |
| Stepping | R0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Maximum internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 2 x 0.5 GB |
| Memory slots | 2x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 250 GB |
| HDD interface | SATA II |
| HDD speed | 7200 RPM |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Intel® GMA X3000 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Network
| Specification | Value |
|---|---|
| Networking features | Ethernet/Fast Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 2 |
| S/PDIF out port | Yes |
| TV-out | Yes |
| TV-out type | S-Video |
Power
| Specification | Value |
|---|---|
| Power supply | 250 W |
| Power supply input voltage | 100 - 127, 200 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Home Premium |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 27248 |
| Processor code | SLGW2 |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | Azalia CODEC 7.1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 430 mm |
| Depth | 350 mm |
| Height | 100 mm |
| Weight | 15 kg |
