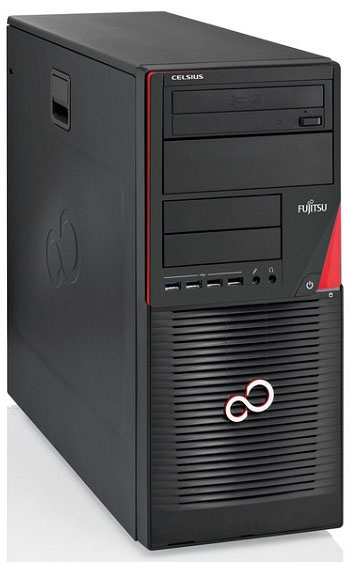

CELSIUS R930 Intel® Xeon® E5 V2 Family E5-2620V2

8 GB DDR3-SDRAM 1 TB HDD Windows 8.1 Pro Tower Workstation Black

Model R930Part no. VFY:R9300W7821GBEAN 4053026556064

136 specifications

ProcessorIntel® Xeon® E5 V2 Family
Memory8 GB
Storage1 TB
GraphicsNot available
TypeWorkstation
OSWindows 8.1 Pro

See all specifications

Overview

Processor: Intel® Xeon® E5 V2 Family
Memory: 8 GB
Storage: 1 TB
Graphics: Not available
Type: Workstation
OS: Windows 8.1 Pro

Brand: Fujitsu
Category: PCs/Workstations
Model: R930
Part numbers: VFY:R9300W7821GB, VFY:R9300W7891GB, VFY:R9300WXP41NL, VFY:R9400W580BCZ, VFY:R9300W7821FR, VFY:R9300WXP41FR +5 more
EAN / UPC: 4053026556064, 4053026521864, 4053026537933, 4053026538787 +4 more
Also known as: Fujitsu CELSIUS R930 Intel® Xeon® E5 V2 Family E5-2620V2 8 GB DDR3-SDRAM 1 TB HDD Windows 8.1 Pro Tower Workstation Black

Specifications

136 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 V2 Family
Processor model	E5-2620V2
Processor cores	6
Processor threads	12
Processor boost frequency	2.6 GHz
Processor frequency	2.1 GHz
Processor cache	15 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
System bus rate	7.2 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E5-2600 v2
Processor codename	Ivy Bridge EP
Thermal Design Power (TDP)	80 W
Tcase	71 °C
Maximum number of PCI Express lanes	40
PCI Express configurations	x4, x8, x16
PCI Express slots version	3.0
Number of QPI links	2
Number of processors installed	1
Processor socket	LGA 2011 (Socket R)
Maximum internal memory supported by processor	768 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066,1333,1600 MHz
Memory bandwidth supported by processor (max)	51.2 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	512 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 4 GB
Memory slots	16x DIMM
Memory channels	Quad-channel

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD Super Multi
Storage media	HDD
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA III
Card reader integrated	Yes
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

Specification	Value
On-board graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Not available

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C602

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Wake-on-LAN ready	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	11
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	2
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
PS/2 ports quantity	2
eSATA ports quantity	1

Expansion slots

Specification	Value
Number of 3.5" bays	6
PCI Express x4 (Gen 2.x) slots	1
PCI Express x4 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	4
PCI slots	1

Design

Specification	Value
Chassis type	Tower
Placement supported	Vertical
Number of 5.25" bays	2
Liquid cooling system	No
Product colour	Black
Cooling type	Active

Software

Specification	Value
Operating system installed	Windows 8.1 Pro
Operating system architecture	64-bit
Drivers included	Yes

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	2
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	46 bit
Processor ARK ID	75789
Processor package size	52.5 x 45 mm
Scalability	2S
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel® Turbo Boost Technology	2.0
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No
