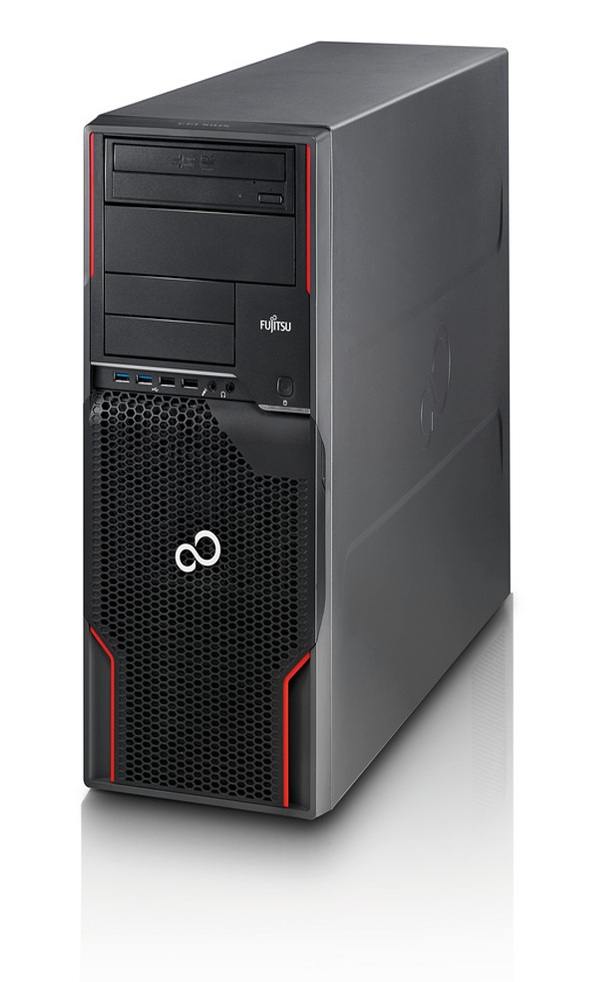

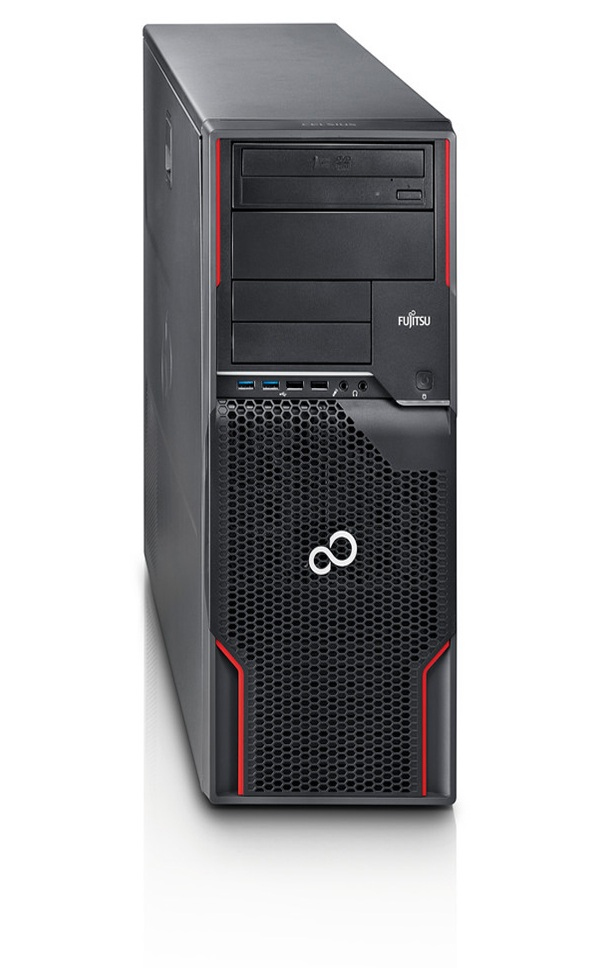

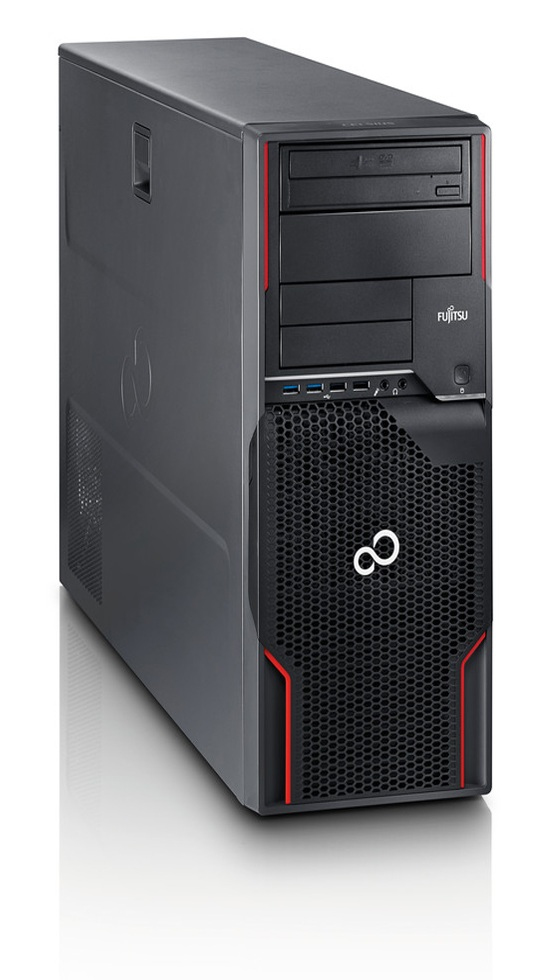

Fujitsu CELSIUS R920 Intel® Xeon® E5 Family E5-2620

4 GB DDR3-SDRAM Windows 7 Professional Tower Workstation Black

Model R920Part no. VFY:R9200W1821DE/B7EAN 4053026423311

126 specifications

ProcessorIntel® Xeon® E5 Family
Memory4 GB
Storage1 TB
TypeWorkstation
OSWindows 7 Professional
Weight20 kg

See all specifications

Overview

Processor: Intel® Xeon® E5 Family
Memory: 4 GB
Storage: 1 TB
Type: Workstation
OS: Windows 7 Professional
Weight: 20 kg

Brand: Fujitsu
Category: PCs/Workstations
Model: R920
Part numbers: VFY:R9200W1821DE/B7, VFY:R9200W1821DE/B8, VFY:R9200W1821DE/B9, LKN:R9200W0017DE, VFY:R9200WXU11IT, VFY:R9200W1891FR +27 more
EAN / UPC: 4053026423311, 4051554568122, 4051554575960, 4053026448574 +16 more
Also known as: Fujitsu CELSIUS R920 Intel® Xeon® E5 Family E5-2620 4 GB DDR3-SDRAM Windows 7 Professional Tower Workstation Black

Specifications

126 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 Family
Processor model	E5-2620
Processor cores	6
Processor threads	12
Processor boost frequency	2.5 GHz
Processor frequency	2 GHz
Processor cache	15 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
System bus rate	7.2 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E5-2600
Processor codename	Sandy Bridge EP
Thermal Design Power (TDP)	95 W
Tcase	77.4 °C
Maximum number of PCI Express lanes	40
PCI Express configurations	x4, x8, x16
PCI Express slots version	3.0
Number of QPI links	2
Number of processors installed	1
Processor socket	LGA 2011 (Socket R)
CPU multiplier (bus/core ratio)	25
Maximum number of SMP processors	2
Stepping	C2
Maximum internal memory supported by processor	750 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066,1333 MHz
Memory bandwidth supported by processor (max)	42.6 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	512 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 2 GB
Memory slots	16x DIMM
Memory clock speed	1600 MHz
ECC	Yes
Memory channels	Quad-channel

Storage

Specification	Value
Optical drive type	DVD Super Multi
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA III
HDD speed	7200 RPM
Supported HDD interfaces	Serial ATA III
RAID support	Yes
RAID levels	0, 1, 5, 10

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C602

Network

Specification	Value
Networking features	Gigabit Ethernet (10/100/1000)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	11
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	2
Headphone outputs	2
Microphone in	Yes
PS/2 ports quantity	1
eSATA ports quantity	1
Serial ports quantity	1
Parallel ports quantity	0

Expansion slots

Specification	Value
Number of 3.5" bays	6
PCI Express x4 slots	2
PCI Express x16 slots	4
PCI slots	1

Design

Specification	Value
Chassis type	Tower
Placement supported	Vertical
Number of 5.25" bays	2
Product colour	Black
External drive bays	4
Internal drive bays	4
Rack mounting	No

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	2
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Secure Key	Yes
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	46 bit
Processor ARK ID	64594
Processor package size	52.5 x 45.0 mm
Scalability	2S
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	1.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	HD

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	5 - 85%

Weight & dimensions

Specification	Value
Width	430 mm
Depth	186 mm
Height	618 mm
Weight	20 kg

Certificates

Specification	Value
Compliance certificates	RoHS
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR
