Fujitsu CELSIUS R6700 Intel® Xeon® 5000 Sequence E5504
12 GB DDR3-SDRAM Tower Workstation Black
Model R6700Part no. LKN:R6700W0007IT
116 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory12 GB
- Storage1 TB
- TypeWorkstation
- Weight26 kg
- ColourBlack
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 12 GB
- Storage
- 1 TB
- Type
- Workstation
- Weight
- 26 kg
- Colour
- Black
- Brand
- Fujitsu
- Category
- PCs/Workstations
- Model
- R6700
- Part numbers
- LKN:R6700W0007IT, LKN:R6700W0008IT
- Also known as
- Fujitsu CELSIUS R6700 Intel® Xeon® 5000 Sequence E5504 12 GB DDR3-SDRAM Tower Workstation Black
Specifications
116 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5504 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor frequency | 2 GHz |
| Processor cache | 4 MB |
| Processor cache type | Smart Cache |
| Bus type | QPI |
| FSB Parity | No |
| System bus rate | 4.8 GT/s |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon 5500 Series |
| Processor codename | Nehalem EP |
| Processor system type | DP |
| Thermal Design Power (TDP) | 80 W |
| Tcase | 76 °C |
| PCI Express slots version | 2.0 |
| Number of QPI links | 2 |
| Number of processors installed | 1 |
| Processor socket | Socket B (LGA 1366) |
| CPU multiplier (bus/core ratio) | 15 |
| Stepping | D0 |
| Maximum internal memory supported by processor | 144 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800 MHz |
| Memory bandwidth supported by processor (max) | 19.2 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 12 GB |
| Maximum internal memory | 192 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 3 x 4 GB |
| Memory clock speed | 1333 MHz |
| ECC | Yes |
| Maximum internal memory | 196608 MB |
| Memory channels | Triple-channel |
Storage
| Specification | Value |
|---|---|
| HDD capacity | 1 TB |
| Card reader integrated | No |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Password protection type | BIOS |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet (10/100/1000) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 11 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 2 |
| eSATA ports quantity | 1 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 4 |
| PCI Express x4 slots | 3 |
| PCI Express x16 slots | 2 |
| PCI slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 1000 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Number of 5.25" bays | 3 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Smart Cache | Yes |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 40 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 40711 |
| Processor code | SLBF9 |
| Processor package size | 42.5 x 45 mm |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | Realtek ALC663 |
| Speakers | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 215 mm |
| Depth | 622 mm |
| Height | 446 mm |
| Weight | 26 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | GS, CE, cCSAus, FCC, RoHS, CCC, Energy Star 5.0 |
Other features
| Specification | Value |
|---|---|
| HDD user password | Yes |
What people say
Reviews & ratings
Fujitsu CELSIUS R6700 Intel® Xeon® 5000 Sequence E5504
No reviews yet
Be the first to tell others how Fujitsu CELSIUS R6700 Intel® Xeon® 5000 Sequence E5504 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Fujitsu CELSIUS R6700 Intel® Xeon® 5000 Sequence E5504
All pcs/workstations comparisons- Fujitsu CELSIUS R6700 Intel® Xeon® 5000 Sequence E5504 vsFujitsu ESPRIMO E700 Intel® Core™ i3 i3-2100Compare specs
- Fujitsu CELSIUS R6700 Intel® Xeon® 5000 Sequence E5504 vsFujitsu ESPRIMO Edition P700 Intel® Core™ i3 i3-2100Compare specs
- Fujitsu CELSIUS R6700 Intel® Xeon® 5000 Sequence E5504 vsFujitsu P2760 + L20T-2Compare specs
- Fujitsu CELSIUS R6700 Intel® Xeon® 5000 Sequence E5504 vsFujitsu P9900 + L22W-1Compare specs
- Fujitsu CELSIUS R6700 Intel® Xeon® 5000 Sequence E5504 vsHP Elite 7200 MT + LA2205wg + U6578ACompare specs
- Fujitsu CELSIUS R6700 Intel® Xeon® 5000 Sequence E5504 vsHP Pavilion p6793uk AMD Phenom II X6 1035TCompare specs

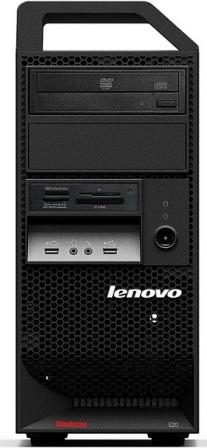

- Fujitsu CELSIUS R6700 Intel® Xeon® 5000 Sequence E5504 vsLenovo E20 + Graphic cardCompare specs
