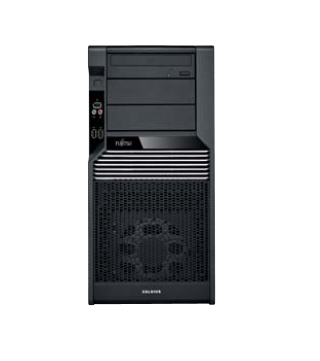

CELSIUS R670 Intel® Xeon® 5000 Sequence X5660
16 GB DDR3-SDRAM 300 GB HDD Workstation Black
Model R670Part no. LKN:R6702W0031FREAN 4051554354770
133 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory16 GB
- Storage300 GB
- TypeWorkstation
- Weight26 kg
- ColourBlack
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 16 GB
- Storage
- 300 GB
- Type
- Workstation
- Weight
- 26 kg
- Colour
- Black
- Brand
- Fujitsu
- Category
- PCs/Workstations
- Model
- R670
- Part numbers
- LKN:R6702W0031FR, LKN:R6702W0055FR
- EAN / UPC
- 4051554354770
- Also known as
- Fujitsu CELSIUS R670 Intel® Xeon® 5000 Sequence X5660 16 GB DDR3-SDRAM 300 GB HDD Workstation Black
Specifications
133 specifications in 20 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | X5660 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 3.2 GHz |
| Processor frequency | 2.8 GHz |
| Processor cache | 12 MB |
| Processor cache type | L3 |
| Bus type | QPI |
| FSB Parity | No |
| System bus rate | 6.40 GT/s |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon 5600 Series |
| Processor codename | Westmere EP |
| Thermal Design Power (TDP) | 95 W |
| Tcase | 81.3 °C |
| PCI Express slots version | 2.0 |
| Number of QPI links | 2 |
| Number of processors installed | 1 |
| Processor socket | Socket B (LGA 1366) |
| CPU multiplier (bus/core ratio) | 21 |
| Stepping | B1 |
| Maximum internal memory supported by processor | 288 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory bandwidth supported by processor (max) | 32 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 192 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 4 x 4 GB |
| Memory slots | 12x DIMM |
| Memory clock speed | 1333 MHz |
| Memory channels | Triple-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 300 GB |
| Optical drive type | DVD Super Multi |
| Storage media | HDD |
| Number of HDDs supported | 4 |
| Number of HDDs installed | 1 |
| HDD capacity | 300 GB |
| HDD size | 3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 1E |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| On-board graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® 5520 |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 2 |
| Serial ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 4 |
| PCI Express x4 slots | 2 |
| PCI Express x16 slots | 2 |
| PCI slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 1000 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Number of 5.25" bays | 3 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Cooling type | Active |
Software
| Specification | Value |
|---|---|
| Drivers included | Yes |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Smart Cache | Yes |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 40 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 47921 |
| Processor code | SLBV6 |
| Processor package size | 42.5X45 mm |
| Supported instruction sets | SSE4.2 |
| Thermal Monitoring Technologies | No |
| Intel® Smart Response Technology | No |
| Intel® Rapid Start Technology | No |
| Intel® Turbo Boost Technology | 1.0 |
| Intel Smart Connect Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | Realtek ALC663 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 215 mm |
| Depth | 622 mm |
| Height | 446 mm |
| Weight | 26 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | GS, CE, cCSAus, FCC |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
