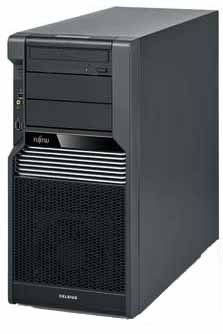

Fujitsu CELSIUS R570-2 Intel® Xeon® 5000 Sequence X5650

8 GB DDR3-SDRAM Windows 7 Professional Tower Workstation

Model R570-2Part no. LKN:R5702W0195FREAN 4051554392376

119 specifications

ProcessorIntel® Xeon® 5000 Sequence
Memory8 GB
Storage500 GB
TypeWorkstation
OSWindows 7 Professional
Weight20 kg

See all specifications

Overview

Processor: Intel® Xeon® 5000 Sequence
Memory: 8 GB
Storage: 500 GB
Type: Workstation
OS: Windows 7 Professional
Weight: 20 kg

Brand: Fujitsu
Category: PCs/Workstations
Model: R570-2
Part numbers: LKN:R5702W0195FR, VFY:R5702WP851IT, VFY:R5702WP861IT, VFY:R5702WXP51IT, VFY:R5702WF041CH, VFY:R5702WF011RU +12 more
EAN / UPC: 4051554392376, 4051554392383, 4051554390693, 4051554432102 +7 more
Also known as: Fujitsu CELSIUS R570-2 Intel® Xeon® 5000 Sequence X5650 8 GB DDR3-SDRAM Windows 7 Professional Tower Workstation

Specifications

119 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	X5650
Processor cores	6
Processor threads	12
Processor boost frequency	3.06 GHz
Processor frequency	2.66 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
System bus rate	6.4 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Xeon 5600 Series
Processor codename	Westmere EP
Processor system type	DP
Thermal Design Power (TDP)	95 W
Tcase	81.3 °C
Number of QPI links	2
Number of processors installed	1
Processor socket	Socket B (LGA 1366)
CPU multiplier (bus/core ratio)	20
Stepping	B1
Maximum internal memory supported by processor	288 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066,1333 MHz
Memory bandwidth supported by processor (max)	32 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	96 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 4 GB
Memory slots	6x DIMM
Memory clock speed	1333 MHz
ECC	Yes
Memory channels	Triple-channel

Storage

Specification	Value
Optical drive type	DVD-RW
HDD capacity	500 GB
HDD interface	SATA II
HDD speed	7200 RPM
Card reader integrated	Yes
RAID support	Yes
RAID levels	0, 1, 5, 10

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® 5520
Password protection type	BIOS
Trusted Platform Module (TPM)	Yes

Network

Specification	Value
Networking features	Gigabit Ethernet (10/100/1000)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	11
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
DisplayPorts quantity	2
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
PS/2 ports quantity	2
Serial ports quantity	1
Parallel ports quantity	0
DVI-I ports quantity	2

Expansion slots

Specification	Value
Number of 3.5" bays	4
PCI Express x4 slots	2
PCI Express x16 slots	2
PCI slots	2

Power

Specification	Value
Power requirements	100-240V; 50/60Hz
Power supply	700 W

Design

Specification	Value
Chassis type	Tower
Number of 5.25" bays	3
Cable lock slot	Yes
Cable lock slot type	Kensington

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Compatible operating systems	Windows 7/XP Linux Red Hat Novell

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	2
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	40 bit
Processor ARK ID	47922
Processor code	SLBV3
Processor package size	42.5 X 45 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	1.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	HD

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	10 - 75%

Weight & dimensions

Specification	Value
Width	215 mm
Depth	522 mm
Height	446 mm
Weight	20 kg

Certificates

Specification	Value
Certification	CE, FCC, RoHS, GS, CCC

Other features

Specification	Value
HDD user password	Yes
