Fujitsu Q520 + B22T-7

Model Q520 + B22T-7Part no. VFY:Q0520P23A1DE/B22

164 specifications

Display54.6 cm (21.5")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i3
Memory4 GB
Storage128 GB
GraphicsNot available

See all specifications

Overview

Display: 54.6 cm (21.5")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i3
Memory: 4 GB
Storage: 128 GB
Graphics: Not available

Brand: Fujitsu
Category: PCs/Workstations
Model: Q520 + B22T-7
Part number: VFY:Q0520P23A1DE/B22
Also known as: Fujitsu ESPRIMO Q520 + B22T-7 Intel® Core™ i3 i3-4150T 4 GB DDR3-SDRAM 128 GB SSD Windows 7 Professional Mini PC Black

Specifications

164 specifications in 20 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	4th gen Intel® Core™ i3
Processor model	i3-4150T
Processor cores	2
Processor threads	4
Processor frequency	3 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Bus type	DMI2
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Core i3-4100 Desktop series
Processor codename	Haswell
Thermal Design Power (TDP)	35 W
Tcase	66.4 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of QPI links	0
Number of processors installed	1
Processor socket	LGA 1150 (Socket H3)
Stepping	C0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM, DDR3L-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	Yes
Memory voltage supported by processor	1.5 V

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory slots	2x SO-DIMM
Memory clock speed	1600 MHz
Memory channels	Dual-channel
Non-ECC	Yes

Storage

Specification	Value
Total storage capacity	128 GB
Optical drive type	DVD-RW
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	128 GB
SSD interface	SATA III
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4400
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	200 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	11.1
On-board graphics card ID	41
On-board graphics card OpenGL version	4.3

Performance

Specification	Value
Product type	Mini PC
Motherboard chipset	Intel® H81
Password protection	Yes
Password protection type	BIOS, HDD, Supervisor, User
BIOS type	UEFI AMI

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

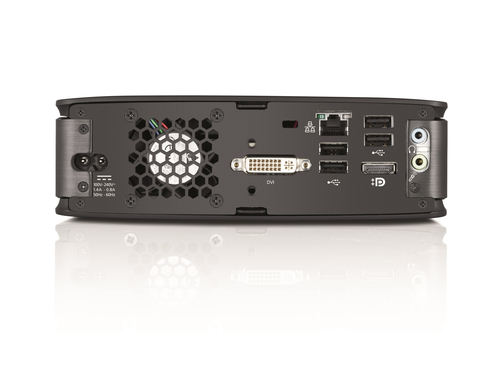

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
DisplayPorts quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	Yes

Power

Specification	Value
Power supply	65 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Design

Specification	Value
Placement supported	Horizontal/Vertical
Number of 5.25" bays	1
Number of 2.5" bays	1
Cable lock slot	Yes
Cable lock slot type	Kensington
Liquid cooling system	No
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Recovery operating system	Windows 8.1 Pro
Drivers included	Yes

Display

Specification	Value
Display included	Yes
Display diagonal	54.6 cm (21.5")
Display type	LED
Full HD	Yes
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Contrast ratio (typical)	1000:1
Display number of colours	16.78 million colours
Touchscreen	No
Display brightness	250 cd/m²
Viewing angle, horizontal	176°
Viewing angle, vertical	170°

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Small Business Advantage (SBA) version	1.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	No
Intel® Smart Cache	Yes
Intel® Virtualization Technology (Intel® VT)	VT-x
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	77487
Processor code	SR1PG
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013A
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes

Audio

Specification	Value
Audio system	Realtek ALC671

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C

Weight & dimensions

Specification	Value
Width	185 mm
Depth	188 mm
Height	54 mm
Weight	1.6 kg

Packaging data

Specification	Value
Package width	395 mm
Package depth	198 mm
Package height	284 mm

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Manual	Yes

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR
