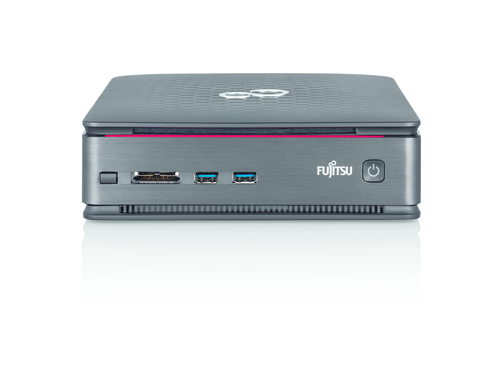

ESPRIMO Q520 Intel® Core™ i3 i3-4130T

4 GB DDR3-SDRAM 500 GB Hybrid Windows 7 Professional Mini PC Black

Model Q520Part no. VFY:Q0520P2211CZEAN 4053026720403

148 specifications

ProcessorIntel® Core™ i3
Memory4 GB
Storage500 GB
SpeedWi-Fi 4 (802.11n)
TypeMini PC
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel® Core™ i3
Memory: 4 GB
Storage: 500 GB
Speed: Wi-Fi 4 (802.11n)
Type: Mini PC
OS: Windows 7 Professional

Brand: Fujitsu
Category: PCs/Workstations
Model: Q520
Part numbers: VFY:Q0520P2211CZ, VFY:Q0520P7311FR, VFY:Q0520P7311NC, VFY:Q0520P7311DE, VFY:Q0520P7311GB, VFY:Q0520P22A1GB +34 more
EAN / UPC: 4053026720403, 4053026538480, 4053026526906, 4053026532365 +56 more
Also known as: Fujitsu ESPRIMO Q520 Intel® Core™ i3 i3-4130T 4 GB DDR3-SDRAM 500 GB Hybrid Windows 7 Professional Mini PC Black

Specifications

148 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	4th gen Intel® Core™ i3
Processor model	i3-4130T
Processor cores	2
Processor threads	4
Processor frequency	2.9 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Core i3-4100 Desktop series
Processor codename	Haswell
Thermal Design Power (TDP)	35 W
Tcase	72 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	2x8
PCI Express slots version	3.0
Number of QPI links	0
Number of processors installed	1
Processor socket	LGA 1150 (Socket H3)
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory slots	2x DIMM
Memory clock speed	1600 MHz
Memory channels	Dual-channel
Non-ECC	Yes

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	DVD-RW
Storage media	Hybrid
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA III
HDD speed	5400 RPM
HDD size	2.5"
Card reader integrated	Yes
Compatible memory cards	MMC, SD

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4400
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	200 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	11.1
On-board graphics card ID	0x41E

Performance

Specification	Value
Product type	Mini PC
Motherboard chipset	Intel® H81
Password protection type	BIOS

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth	Yes

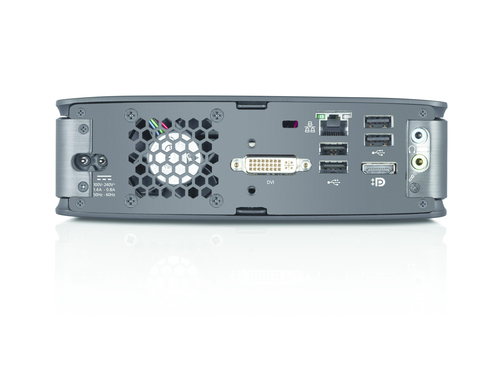

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
DisplayPorts quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	0

Power

Specification	Value
Power supply	65 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Design

Specification	Value
Placement supported	Horizontal/Vertical
Number of 5.25" bays	1
Number of 2.5" bays	1
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Recovery operating system	Windows 8 Pro
Drivers included	Yes

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Small Business Advantage (SBA) version	1.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	77481
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013A
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel® Turbo Boost Technology	No
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes
