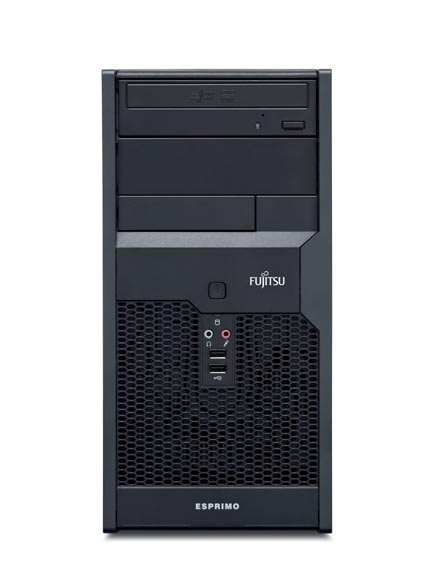

ESPRIMO P3521 Intel® Core™2 Quad Q8300
2 GB DDR3-SDRAM 500 GB NVIDIA GeForce 9300 GE Windows 7 Professional Micro Tower PC Black
Model P3521Part no. LKN:P3521P0137FREAN 4049699329838
122 specifications
- ProcessorIntel® Core™2 Quad
- Memory2 GB
- Storage500 GB
- GraphicsNVIDIA GeForce 9300 GE
- TypePC
- OSWindows 7 Professional
Overview
- Processor
- Intel® Core™2 Quad
- Memory
- 2 GB
- Storage
- 500 GB
- Graphics
- NVIDIA GeForce 9300 GE
- Type
- PC
- OS
- Windows 7 Professional
- Brand
- Fujitsu
- Category
- PCs/Workstations
- Model
- P3521
- Part numbers
- LKN:P3521P0137FR, VFY:P3521PF221FR, VFY:P3521PF031IT, VFY:P3521PF211FR, VFY:P3521PF191IT, VFY:P3521PF201IT +2 more
- EAN / UPC
- 4049699329838, 4049699460654, 4049699453021, 4049699453052 +3 more
- Also known as
- Fujitsu ESPRIMO P3521 Intel® Core™2 Quad Q8300 2 GB DDR3-SDRAM 500 GB NVIDIA GeForce 9300 GE Windows 7 Professional Micro Tower PC Black
Specifications
122 specifications in 21 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Quad |
| Processor model | Q8300 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor frequency | 2.5 GHz |
| Processor cache | 4 MB |
| Processor cache type | L2 |
| Processor front side bus | 1333 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core 2 Quad Q8000 Series |
| Processor codename | Yorkfield |
| Thermal Design Power (TDP) | 95 W |
| Tcase | 71.4 °C |
| Number of processors installed | 1 |
| Processor socket | LGA 775 + AM2/2+ |
| Number of Processing Die Transistors | 456 M |
| Processing Die size | 164 mm² |
| CPU multiplier (bus/core ratio) | 7.5 |
| Stepping | R0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 1 x 2 GB |
| Memory clock speed | 1066 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | DVD Super Multi |
| HDD interface | SATA II |
| HDD speed | 7200 RPM |
| Card reader integrated | No |
| Floppy drive installed | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| Discrete graphics card model | NVIDIA GeForce 9300 GE |
| Maximum graphics card memory | 0.5 GB |
| Graphics card family | NVIDIA |
| External video modes refresh rate (max) | 85 Hz |
| External video modes resolution (max) | 1920 x 1200 pixels |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Password protection type | BIOS |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
Power
| Specification | Value |
|---|---|
| Power requirements | 100-240V, 50/60Hz |
| Power supply | 300 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Micro Tower |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| External drive bays | 1x 3.5", 2x 5.25" |
| Internal drive bays | 2x 3.5" |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Optional operating system supplied | Windows XP Professional |
| Compatible operating systems | Linux |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | 2 |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 39107 |
| Processor code | SLGUR |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | Realtek ALC663 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
Ergonomics
| Specification | Value |
|---|---|
| Acoustic pressure emissions | 23 dB |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 425 mm |
| Height | 353 mm |
| Weight | 11 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 500 x 290 x 540 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | No |
Certificates
| Specification | Value |
|---|---|
| Certification | GS, CE, FCC B, cCSAus, RoHS, WEEE |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| HDD user password | Yes |
| Motherboard | D3041 |
