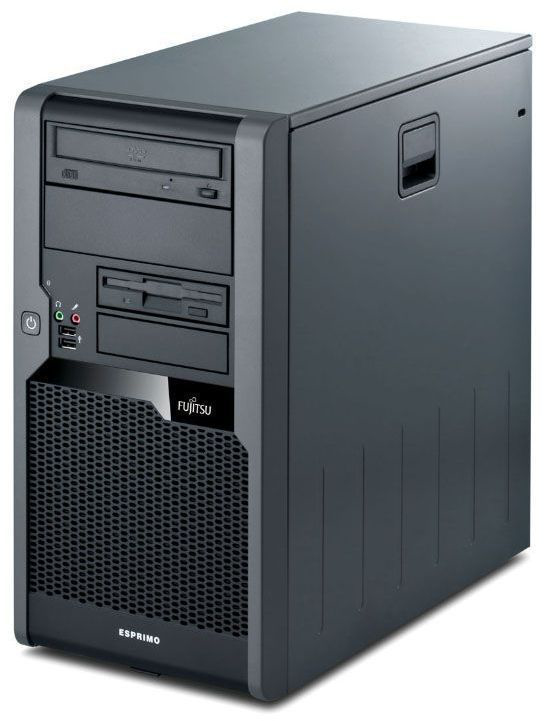

P2760 + L20T
Model P2760 + L20TPart no. VFY:P2760PF011PT
151 specifications
- Display50.8 cm (20")
- Resolution1600 x 1200 pixels
- ProcessorIntel® Core™ i3
- Memory3 GB
- Storage500 GB
- GraphicsNot available
Overview
- Display
- 50.8 cm (20")
- Resolution
- 1600 x 1200 pixels
- Processor
- Intel® Core™ i3
- Memory
- 3 GB
- Storage
- 500 GB
- Graphics
- Not available
- Brand
- Fujitsu
- Category
- PCs/Workstations
- Model
- P2760 + L20T
- Part number
- VFY:P2760PF011PT
- Also known as
- Fujitsu ESPRIMO P2760 + L20T Intel® Core™ i3 i3-550 3 GB DDR3-SDRAM 500 GB Windows 7 Professional Micro Tower PC Black
Specifications
151 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | Intel® Core™ i3 |
| Processor model | i3-550 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 3.2 GHz |
| Processor cache | 4 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI |
| FSB Parity | No |
| System bus rate | 2.5 GT/s |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i3-500 Desktop Series |
| Processor codename | Clarkdale |
| Thermal Design Power (TDP) | 73 W |
| Tcase | 72.6 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8 |
| PCI Express slots version | 2.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1156 (Socket H) |
| Number of Processing Die Transistors | 382 M |
| Processing Die size | 81 mm² |
| CPU multiplier (bus/core ratio) | 24 |
| Stepping | K0 |
| Maximum internal memory supported by processor | 16 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1066,1333 MHz |
| Memory bandwidth supported by processor (max) | 21 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 3 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 1 x 1 + 1 x 2 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 1066 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | DVD Super Multi |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | SATA II |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| Number of displays supported (on-board graphics) | 2 |
| On-board graphics card base frequency | 733 MHz |
| Maximum graphics card memory | 1.759 GB |
| Graphics card family | Intel |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel® H55 |
| Compatible processor series | Intel® Pentium® |
| Password protection type | BIOS |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| eSATA ports quantity | 1 |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 3 |
| PCI Express x1 slots | 1 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| Power supply | 300 W |
| Power supply input voltage | 200 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Micro Tower |
| Number of 5.25" bays | 2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| External drive bays | 3 |
| Internal drive bays | 2 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |

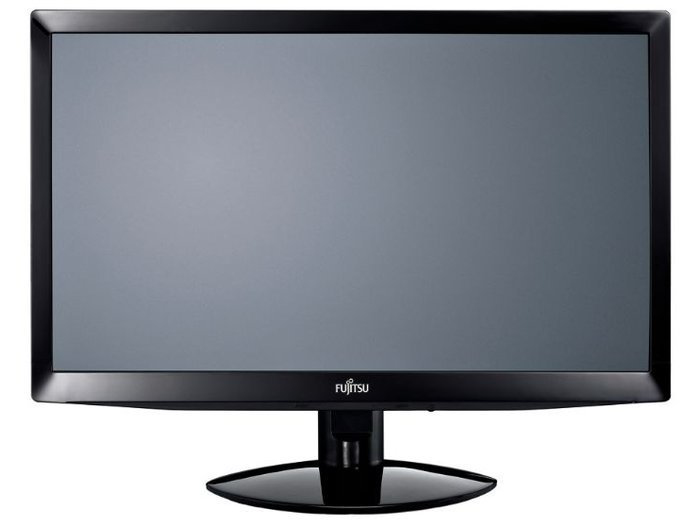

Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 50.8 cm (20") |
| Display type | LED |
| Display resolution | 1600 x 1200 pixels |
| Native aspect ratio | 16:9 |
| Display number of colours | 16.78 million colours |
| Display brightness | 250 cd/m² |
| Viewing angle, horizontal | 176° |
| Viewing angle, vertical | 170° |
| Display | LCD |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 45 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 36 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 48505 |
| Processor code | SLBUD |
| Processor package size | 37.5 x 37.5 mm |
| Supported instruction sets | SSE4.2 |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 425 mm |
| Height | 353 mm |
| Weight | 11 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
