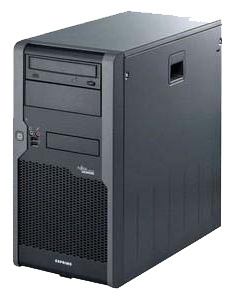

Fujitsu ESPRIMO P2530 Intel® Pentium® E2180

1 GB DDR2-SDRAM 160 GB NVIDIA® GeForce® 7050 Linux Tower PC Black

Model P2530Part no. VFY:P2530PPAB1FR

124 specifications

ProcessorIntel® Pentium®
Memory1 GB
Storage160 GB
GraphicsNVIDIA® GeForce® 7050
TypePC
OSLinux

See all specifications

Overview

Processor: Intel® Pentium®
Memory: 1 GB
Storage: 160 GB
Graphics: NVIDIA® GeForce® 7050
Type: PC
OS: Linux

Brand: Fujitsu
Category: PCs/Workstations
Model: P2530
Part numbers: VFY:P2530PPAB1FR, VFY:P2530PPAB4PL, VFY:P2530PPAD1PL, VFY:P2530PPAF1PL, VFY:P2530PPAG1PL, VFY:P2530PPAC1PL +1 more
Also known as: Fujitsu ESPRIMO P2530 Intel® Pentium® E2180 1 GB DDR2-SDRAM 160 GB NVIDIA® GeForce® 7050 Linux Tower PC Black

Specifications

124 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	E2180
Processor cores	2
Processor threads	2
Processor frequency	2 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	800 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Pentium E2000 Series for Desktop
Processor codename	Conroe
Thermal Design Power (TDP)	65 W
Tcase	73.3 °C
Number of processors installed	1
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	105 M
Processing Die size	77 mm²
CPU multiplier (bus/core ratio)	10
Maximum number of SMP processors	1
Platform	PC
Stepping	M0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Maximum internal memory	4 GB
Internal memory type	DDR2-SDRAM
Memory slots	2x DIMM

Storage

Specification	Value
Total storage capacity	160 GB
Optical drive type	DVD-RW
Number of HDDs installed	1
HDD capacity	160 GB
HDD interface	SATA II
HDD speed	7200 RPM
HDD size	3.5"
Card reader integrated	No
Floppy drive installed	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® 7050
Discrete graphics card memory	0.256 GB
Graphics card family	NVIDIA

Performance

Specification	Value
Product type	PC
Motherboard chipset	NVIDIA nForce 630i
Password protection type	BIOS

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Wake-on-LAN ready	Yes
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	10
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
Serial ports quantity	1
Parallel ports quantity	0

Expansion slots

Specification	Value
Number of 3.5" bays	2
PCI Express x16 slots	1
PCI slots	2

Power

Specification	Value
Power supply type	AC/DC
Power supply	300 W
Power supply input voltage	200 - 240 V
Power supply input frequency	47 - 63 Hz
Power consumption (standby)	5.3 W
Power consumption (typical)	86 W

Design

Specification	Value
Chassis type	Tower
Number of 5.25" bays	2
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black

Software

Specification	Value
Operating system installed	Linux

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	31733
Processor code	SLA8Y
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	Realtek ALC262

Operational conditions

Specification	Value
Operating temperature (T-T)	15 - 35 °C

Weight & dimensions

Specification	Value
Width	202 mm
Depth	376 mm
Height	372 mm
Weight	11 kg

Packaging data

Specification	Value
Package dimensions (WxDxH)	290 x 540 x 500 mm

Certificates

Specification	Value
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Certification	GS, CE, RoHS, WEEE
