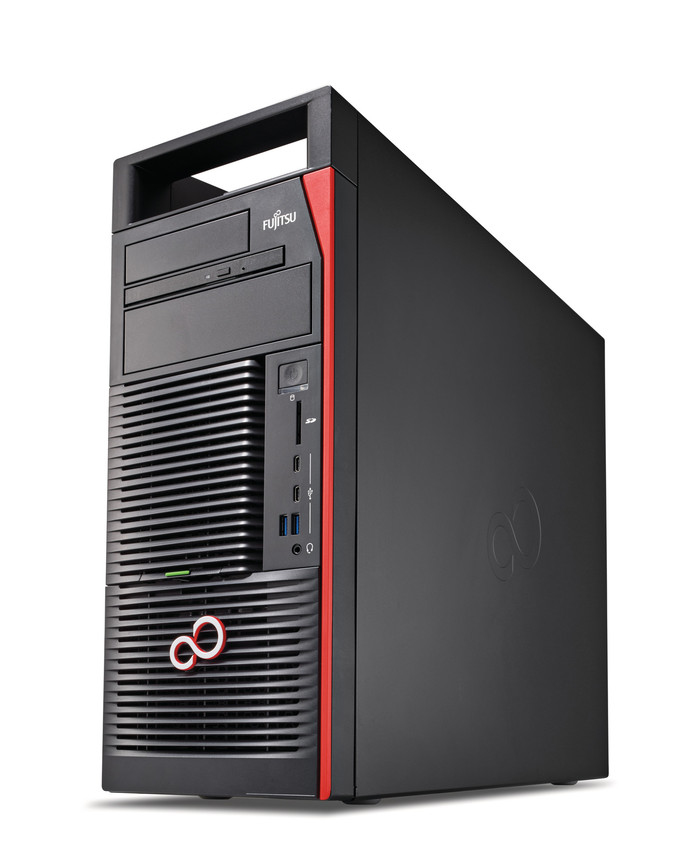

CELSIUS M770P Intel® Xeon® W-2123
16 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Rack-mounted chassis Workstation Black, Red
Model M770PPart no. VFY:M7700W18PSFREAN 4059595581261
143 specifications
- ProcessorIntel® Xeon®
- Memory16 GB
- Storage256 GB
- GraphicsNot available
- TypeWorkstation
- OSWindows 10 Pro
Overview
- Processor
- Intel® Xeon®
- Memory
- 16 GB
- Storage
- 256 GB
- Graphics
- Not available
- Type
- Workstation
- OS
- Windows 10 Pro
- Brand
- Fujitsu
- Category
- PCs/Workstations
- Model
- M770P
- Part number
- VFY:M7700W18PSFR
- EAN / UPC
- 4059595581261
- Also known as
- Fujitsu CELSIUS M770P Intel® Xeon® W-2123 16 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Rack-mounted chassis Workstation Black, Red
Specifications
143 specifications in 20 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | W-2123 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.9 GHz |
| Processor frequency | 3.6 GHz |
| Processor cache | 8.25 MB |
| Bus type | QPI |
| System bus rate | 0 GT/s |
| Processor lithography | 14 nm |
| Processor codename | Skylake |
| Thermal Design Power (TDP) | 120 W |
| Tcase | 65 °C |
| Maximum number of PCI Express lanes | 48 |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 2066 (Socket R4) |
| Stepping | U0 |
| Maximum internal memory supported by processor | 512 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133,2400,2666 MHz |
| Memory bandwidth supported by processor (max) | 85.3 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 256 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 8x DIMM |
| Memory clock speed | 2666 MHz |
| ECC | Yes |
| Memory channels | Quad-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Optical drive type | DVD Super Multi |
| Storage media | SSD |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Card reader integrated | Yes |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® C422 |
| Password protection | Yes |
| Password protection type | BIOS, Supervisor, User |
| BIOS type | UEFI AMI |
| Trusted Platform Module (TPM) | Yes |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 2 ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 2 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| Mini HDMI ports quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| PS/2 ports quantity | 0 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 5 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x4 (Gen 3.x) slots | 2 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
Power
| Specification | Value |
|---|---|
| Power supply | 800 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack-mounted chassis |
| Placement supported | Vertical |
| Number of 5.25" bays | 1 |
| Number of 2.5" bays | 4 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Liquid cooling system | No |
| Product colour | Black, Red |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | No |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 125036 |
| Processor code | SR3LJ |
| Processor package size | 45 x 52.5 mm |
| Scalability | 1S |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Conflict-Free processor | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC671 |
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 5 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 176 mm |
| Depth | 500 mm |
| Height | 433 mm |
| Weight | 18 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Power cord included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | GS, CE, FCC Class B, cCSAus, Microsoft Operating Systems (HCT / HCL entry / WHQL), WEEE |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | Blue Angel, ENERGY STAR |
