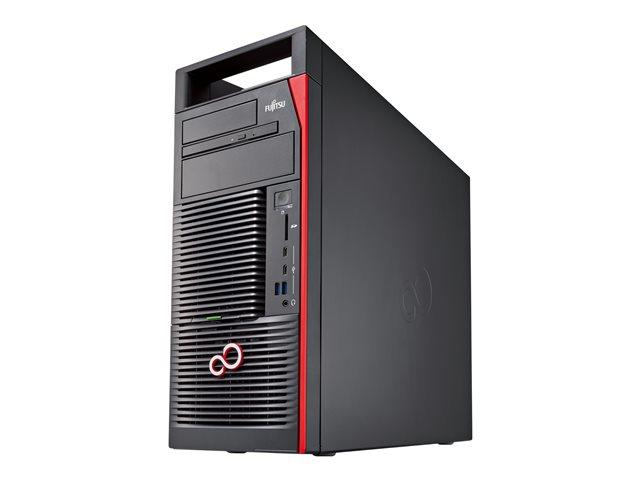

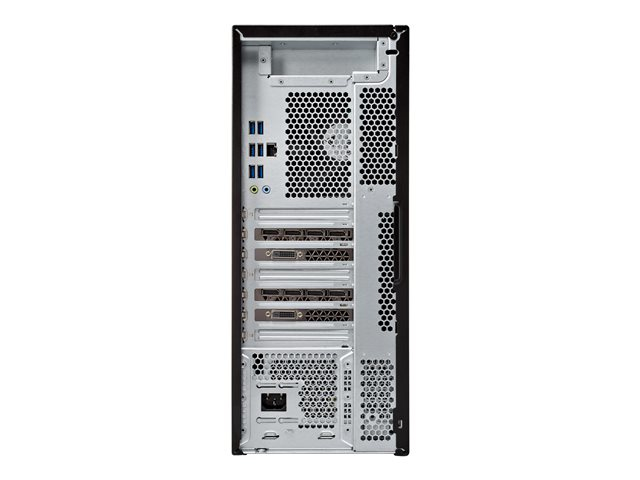

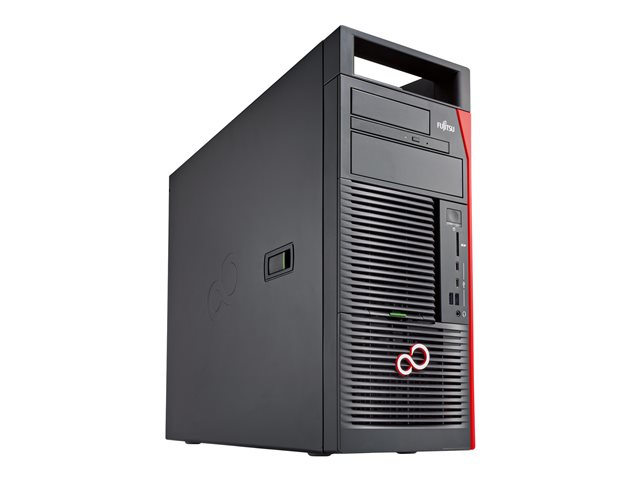

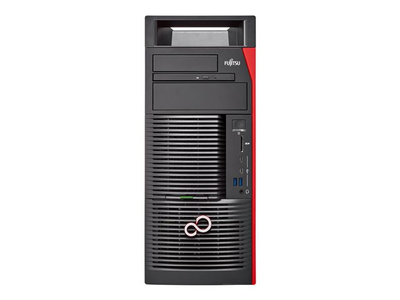

CELSIUS M770 Intel® Xeon® W-2133

16 GB DDR4-SDRAM 512 GB SSD Windows 10 Pro for Workstations Rack-mounted chassis Workstation Black, Red

Model M770Part no. VFY:M7700W181SITEAN 4059595503300

129 specifications

Overview

Brand: Fujitsu
Category: PCs/Workstations
Model: M770
Part numbers: VFY:M7700W181SIT, VFY:M7700W184SIT, VFY:M7700W183SIT, VFY:M7700W381HFR, VFY:M7700W380HFR, VFY:M7700W481SIN +31 more
EAN / UPC: 4059595503300, 4059595503317, 4059595503324, 4059595503331 +28 more
Also known as: Fujitsu CELSIUS M770 Intel® Xeon® W-2133 16 GB DDR4-SDRAM 512 GB SSD Windows 10 Pro for Workstations Rack-mounted chassis Workstation Black, Red

129 specifications in 20 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon®
Processor model	W-2133
Processor cores	6
Processor threads	12
Processor boost frequency	3.9 GHz
Processor frequency	3.6 GHz
Processor cache	8.25 MB
Bus type	QPI
System bus rate	0 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Skylake
Thermal Design Power (TDP)	140 W
Tcase	65 °C
Maximum number of PCI Express lanes	48
PCI Express configurations	1x16, 1x4, 1x8
PCI Express slots version	3.0
Processor socket	LGA 2066 (Socket R4)
Stepping	U0
Maximum internal memory supported by processor	512 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133,2400,2666 MHz
Memory bandwidth supported by processor (max)	85.3 GB/s
ECC supported by processor	Yes

Specification	Value
Discrete graphics card	No
On-board graphics card	No

Specification	Value
Optical drives quantity	1

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	2
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No

Specification	Value
Power supply	450 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Specification	Value
Operating system installed	Windows 10 Pro for Workstations
Operating system architecture	64-bit
Optional operating system supplied	Windows 10 Pro
Pre-installed software	Workplace Protect
Trial software	McAfee Multi Access Security, Microsoft Office

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	No
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	125040
Processor code	SR3LL
Processor package size	45 x 52.5 mm
Scalability	1S
Supported instruction sets	AVX, AVX 2.0, AVX-512, SSE4.2
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes
