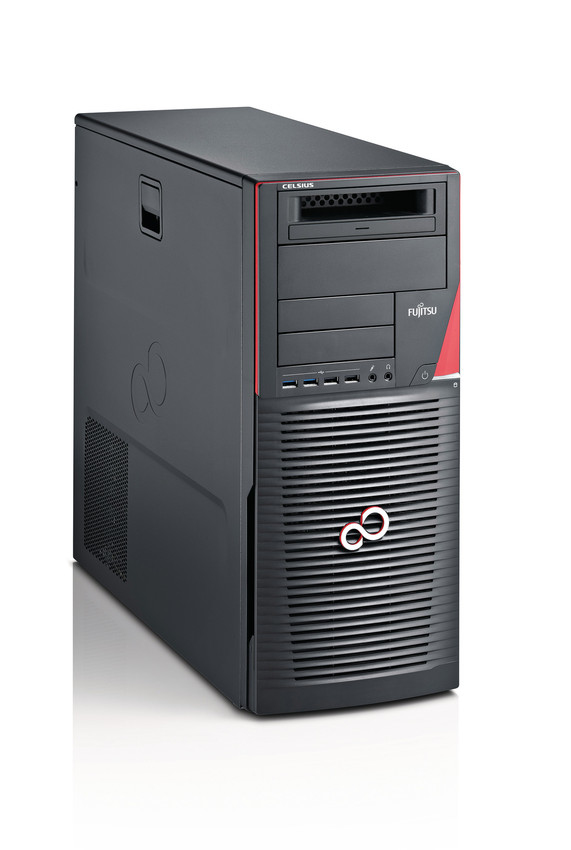

Fujitsu CELSIUS M740power Intel® Xeon® E5 v4 E5-1650V4
16 GB DDR4-SDRAM 512 GB SSD Windows 10 Pro Workstation Black, Red
Model M740powerPart no. VFY:M7400W38BBNCEAN 4059595438015
141 specifications
- ProcessorIntel® Xeon® E5 v4
- Memory16 GB
- Storage512 GB
- GraphicsNot available
- TypeWorkstation
- OSWindows 10 Pro
Overview
- Processor
- Intel® Xeon® E5 v4
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- Not available
- Type
- Workstation
- OS
- Windows 10 Pro
- Brand
- Fujitsu
- Category
- PCs/Workstations
- Model
- M740power
- Part number
- VFY:M7400W38BBNC
- EAN / UPC
- 4059595438015
- Also known as
- Fujitsu CELSIUS M740power Intel® Xeon® E5 v4 E5-1650V4 16 GB DDR4-SDRAM 512 GB SSD Windows 10 Pro Workstation Black, Red
Specifications
141 specifications in 20 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 v4 |
| Processor model | E5-1650V4 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4 GHz |
| Processor frequency | 3.6 GHz |
| Processor cache | 15 MB |
| Processor cache type | Smart Cache |
| Bus type | QPI |
| System bus rate | 0 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E5-1600 v4 |
| Processor codename | Broadwell |
| Thermal Design Power (TDP) | 140 W |
| Tcase | 69 °C |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Number of QPI links | 0 |
| Number of processors installed | 1 |
| Processor socket | LGA 2011-v3 |
| Stepping | R0 |
| Maximum internal memory supported by processor | 1.53 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133,2400 MHz |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 256 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 8x DIMM |
| Memory clock speed | 2400 MHz |
| ECC | Yes |
| Memory channels | Quad-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | DVD Super Multi |
| Storage media | SSD |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | NVMe 3.0 |
| Card reader integrated | Yes |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® C612 |
| Password protection | Yes |
| Password protection type | BIOS, HDD, Supervisor, User |
| BIOS type | UEFI AMI |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 7 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 2 ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| Mini HDMI ports quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| PS/2 ports quantity | 0 |
| DC-in jack | Yes |
| Total number of SATA connectors | 10 |
| Number of SATA III connectors | 10 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 6 |
| PCI Express x1 (Gen 2.x) slots | 2 |
| PCI Express x4 (Gen 2.x) slots | 1 |
| PCI Express x4 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 2 |
Power
| Specification | Value |
|---|---|
| Power supply | 500 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Placement supported | Vertical |
| Number of 5.25" bays | 2 |
| Liquid cooling system | No |
| Product colour | Black, Red |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Trial software | Office 365 |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 92994 |
| Processor code | SR2P7 |
| Processor package size | 45 x 52.5 mm |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Conflict-Free processor | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC671 |
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 5 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 186 mm |
| Depth | 481 mm |
| Height | 430 mm |
| Weight | 18 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | GS, FCC Class B, cCSAus, WEEE |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
What people say
Reviews & ratings
Fujitsu CELSIUS M740power Intel® Xeon® E5 v4 E5-1650V4
No reviews yet
Be the first to tell others how Fujitsu CELSIUS M740power Intel® Xeon® E5 v4 E5-1650V4 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Fujitsu CELSIUS M740power Intel® Xeon® E5 v4 E5-1650V4
All pcs/workstations comparisons- Fujitsu CELSIUS M740power Intel® Xeon® E5 v4 E5-1650V4 vsFujitsu ESPRIMO P557/E85+ Intel® Celeron® G G3930Compare specs
- Fujitsu CELSIUS M740power Intel® Xeon® E5 v4 E5-1650V4 vsFujitsu CELSIUS M770power Intel® Xeon® W-2123Compare specs
- Fujitsu CELSIUS M740power Intel® Xeon® E5 v4 E5-1650V4 vsFujitsu CELSIUS 550 Intel® Xeon® E3 v6 E3-1225V6Compare specs
- Fujitsu CELSIUS M740power Intel® Xeon® E5 v4 E5-1650V4 vsFujitsu ESPRIMO P557/2/E90+ Intel® Core™ i5 i5-7400Compare specs

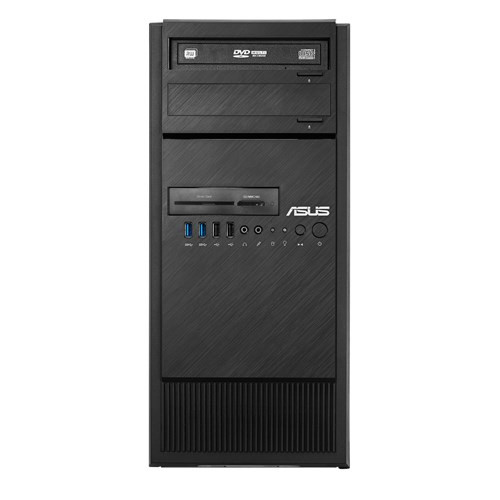

- Fujitsu CELSIUS M740power Intel® Xeon® E5 v4 E5-1650V4 vsASUS ESC500 G4-M2WCompare specs
