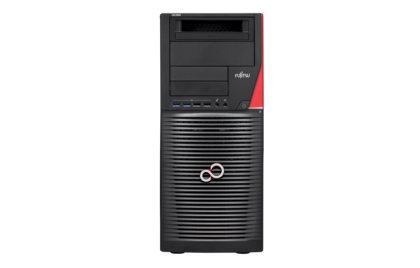

M740 + B24W-7 LED
Model M740 + B24W-7 LEDPart no. VFY:M7400W28CBGB?24"
138 specifications
- Display61 cm (24")
- Resolution1920 x 1200 pixels
- ProcessorIntel® Xeon® E5 v4
- Memory16 GB
- Storage2 TB
- GraphicsAMD FirePro W4300
Overview
- Display
- 61 cm (24")
- Resolution
- 1920 x 1200 pixels
- Processor
- Intel® Xeon® E5 v4
- Memory
- 16 GB
- Storage
- 2 TB
- Graphics
- AMD FirePro W4300
- Brand
- Fujitsu
- Category
- PCs/Workstations
- Model
- M740 + B24W-7 LED
- Part numbers
- VFY:M7400W28CBGB?24", VFY:M7400W28DBGB?24", VFY:M7400W28EBGB?24"
- Also known as
- Fujitsu CELSIUS M740 + B24W-7 LED Intel® Xeon® E5 v4 E5-1620V4 16 GB DDR4-SDRAM 2 TB HDD AMD FirePro W4300 Windows 10 Pro Desktop Workstation Black
Specifications
138 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 v4 |
| Processor model | E5-1620V4 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.8 GHz |
| Processor frequency | 3.5 GHz |
| Processor cache | 10 MB |
| Processor cache type | Smart Cache |
| Bus type | QPI |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E5-1600 v4 |
| Processor codename | Broadwell |
| Thermal Design Power (TDP) | 140 W |
| Tcase | 69 °C |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Number of QPI links | 0 |
| Number of processors installed | 1 |
| Processor socket | LGA 2011-v3 |
| Stepping | R0 |
| Maximum internal memory supported by processor | 1.53 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133,2400 MHz |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 256 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 8x DIMM |
| Memory clock speed | 2400 MHz |
| Memory channels | Quad-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Number of HDDs installed | 1 |
| HDD capacity | 2 TB |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete graphics card model | AMD FirePro W4300 |
| Discrete graphics card memory | 4 GB |
| Number of discrete graphics cards | 1 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® C612 |
| Password protection | Yes |
| Password protection type | BIOS, HDD, Supervisor, User |
| BIOS type | UEFI AMI |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 9 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| eSATA ports quantity | 1 |
| Total number of SATA connectors | 10 |
| Number of SATA III connectors | 10 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 6 |
| PCI Express x8 (Gen 2.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 3 |
Power
| Specification | Value |
|---|---|
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Placement supported | Vertical |
| Number of 5.25" bays | 2 |
| Number of 2.5" bays | 8 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 61 cm (24") |
| Display type | LED |
| Display resolution | 1920 x 1200 pixels |
| Panel type | IPS |
| Contrast ratio (typical) | 1000:1 |
| Display number of colours | 16.78 million colours |
| Display brightness | 300 cd/m² |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 92991 |
| Processor package size | 45 x 52.5 mm |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Conflict-Free processor | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC671 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 5 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 186 mm |
| Depth | 481 mm |
| Height | 430 mm |
| Weight | 18 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | FCC Class B, cCSAus, WEEE |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
