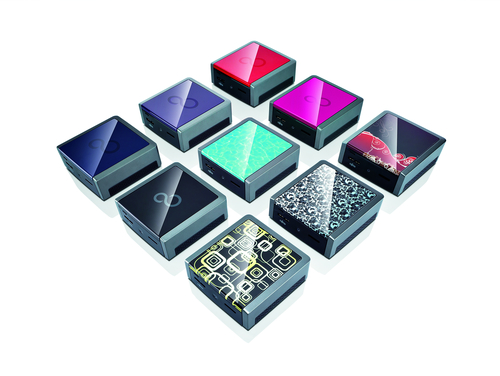

ESPRIMO Q1510
Model ESPRIMO Q1510Part no. VFY:Q1510PF012DKEAN 4049699305115
132 specifications
- ProcessorIntel® Core™ i3
- Memory2 GB
- Storage500 GB
- GraphicsIntel® HD Graphics
- TypePC
- OSWindows 7 Home Premium
Overview
- Processor
- Intel® Core™ i3
- Memory
- 2 GB
- Storage
- 500 GB
- Graphics
- Intel® HD Graphics
- Type
- PC
- OS
- Windows 7 Home Premium
- Brand
- Fujitsu
- Category
- PCs/Workstations
- Model
- ESPRIMO Q1510
- Part numbers
- VFY:Q1510PF012DK, GPJ:Q1510P0006DE, VFY:Q1510PF032GB, VFY:Q1510PF022GB
- EAN / UPC
- 4049699305115, 4049699305108, 4049699399558
- Also known as
- Fujitsu ESPRIMO Q1510 Intel® Core™ i3 i3-330M 2 GB DDR3-SDRAM 500 GB Intel® HD Graphics Windows 7 Home Premium Small Desktop PC Black, Grey
Specifications
132 specifications in 20 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 3rd gen Intel® Core™ i3 |
| Processor model | i3-330M |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 2.13 GHz |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI |
| FSB Parity | No |
| System bus rate | 2.5 GT/s |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i3-300 Mobile Series |
| Processor codename | Arrandale |
| Thermal Design Power (TDP) | 35 W |
| Tjunction | 105 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16 |
| PCI Express slots version | 2.0 |
| Number of processors installed | 1 |
| Processor socket | BGA 1288 |
| Number of Processing Die Transistors | 382 M |
| Processing Die size | 81 mm² |
| CPU multiplier (bus/core ratio) | 16 |
| Maximum number of SMP processors | 1 |
| Stepping | C2 |
| Maximum internal memory supported by processor | 8 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory bandwidth supported by processor (max) | 17.1 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 1 x 2 GB |
| Memory clock speed | 1066 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| HDD interface | SATA II |
| HDD speed | 5400 RPM |
| Card reader integrated | Yes |
| Floppy drive installed | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Intel® HD Graphics |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| Number of displays supported (on-board graphics) | 2 |
| On-board graphics card base frequency | 500 MHz |
| On-board graphics card dynamic frequency (max) | 667 MHz |
| Video adapter features | DirectX 10, HDCP |
| External video modes resolution (max) | 1920 x 1200 pixels |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Optical drive
| Specification | Value |
|---|---|
| BD interface type | SATA |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | Yes |
| Networking features | Gigabit Ethernet |

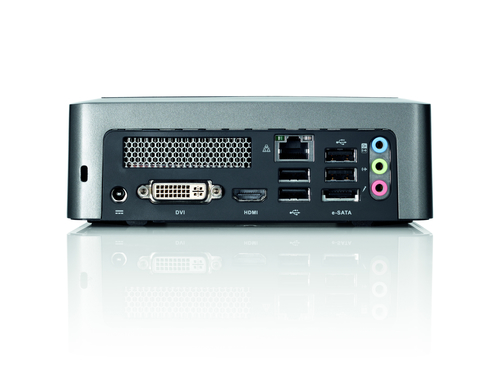

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| eSATA ports quantity | 1 |
| S/PDIF out port | Yes |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power requirements | AC 100 - 240V |
Design
| Specification | Value |
|---|---|
| Chassis type | Small Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |

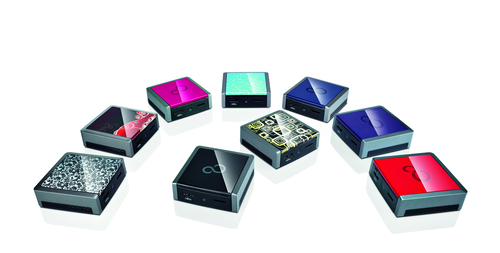

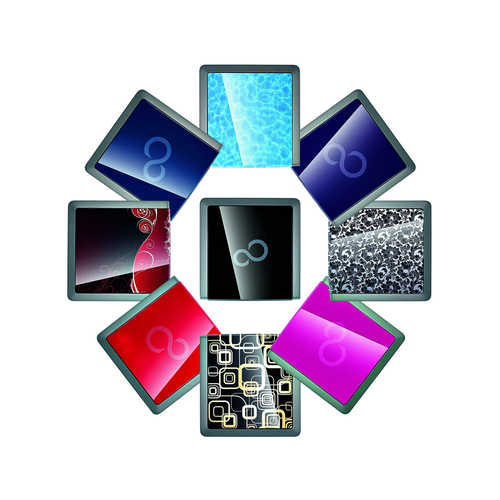

| Product colour | Black, Grey |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Home Premium |
| Mac compatibility | No |
| Bundled software | Nero Essentials S |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 45 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Smart Cache | Yes |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 36 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 47663 |
| Processor code | SLBNF |
| Processor package size | rPGA 37.5x 37.5, BGA 34x28 |
| Supported instruction sets | SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | Realtek ALC662 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 165 mm |
| Depth | 168 mm |
| Height | 57 mm |
| Weight | 1.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 395 x 198 x 284 mm |
Packaging content
| Specification | Value |
|---|---|

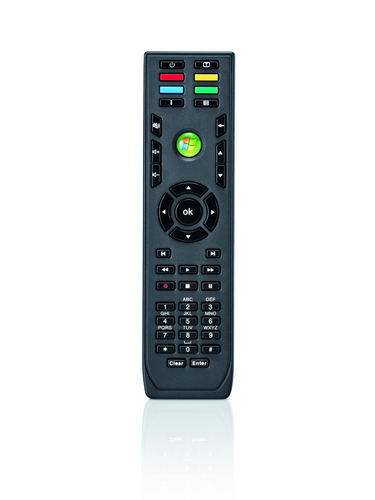

| Remote control included | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, EN 60601-1-2, RoHS, WEEE, HCT, HCL entry, WHQL |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Drive bays | 1x 2.5", 1x 5.25" |
