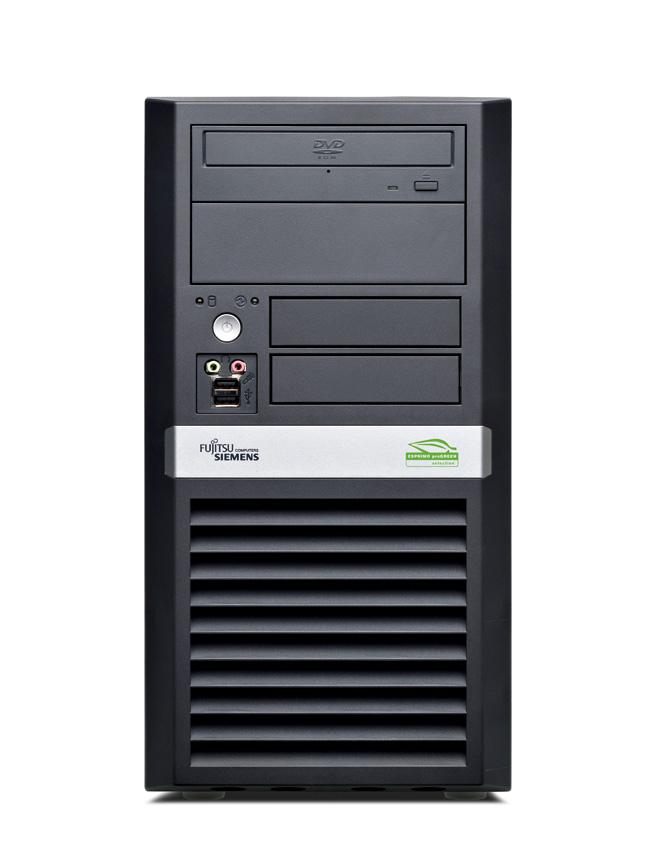

Esprimo P5916 vPro
Model Esprimo P5916 vProPart no. VFY:P5916-09DE S26361-F2888-L1
97 specifications
- ProcessorIntel® Core™2 Duo
- Memory1 GB
- Storage80 GB
- GraphicsIntel® GMA 3000
- TypePC
- OSWindows XP Professional
Overview
- Processor
- Intel® Core™2 Duo
- Memory
- 1 GB
- Storage
- 80 GB
- Graphics
- Intel® GMA 3000
- Type
- PC
- OS
- Windows XP Professional
- Brand
- Fujitsu
- Category
- PCs/Workstations
- Model
- Esprimo P5916 vPro
- Part numbers
- VFY:P5916-09DE S26361-F2888-L1, VFY:P5916-09DE FSP:GA3S10000DE
- Also known as
- Fujitsu ESPRIMO P5916 vPro Intel® Core™2 Duo E4300 1 GB DDR2-SDRAM 80 GB Intel® GMA 3000 Windows XP Professional Micro Tower PC
Specifications
97 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | E4300 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.8 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor front side bus | 800 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core 2 Duo E4000 Series |
| Processor codename | Conroe |
| Thermal Design Power (TDP) | 65 W |
| Scenario Design Power (SDP) | 12 W |
| Tcase | 61.4 °C |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 167 M |
| Processing Die size | 111 mm² |
| CPU multiplier (bus/core ratio) | 9 |
| Processor core voltage (AC) | 1.225 - 1.325 V |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 2 x 0.5 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 80 GB |
| HDD interface | SATA II |
| HDD speed | 7200 RPM |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Intel® GMA 3000 |
| Maximum graphics card memory | 0.256 GB |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel® Q965 Express |
| Password protection type | BIOS |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power requirements | 100 - 127V/ 200 – 240V |
| Power supply input frequency | 50 - 60 Hz |
| Power consumption (typical) | 260 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Micro Tower |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows XP Professional |
| Compatible operating systems | Windows 2000/XP Home/XP Professional/XP Professional x64 Edition/Vista 32bit/Vista 64bit/Vista Basic Logo/Vista Premium Logo/Linux Novell SLED10 |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 28024 |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | Realtek ALC 260 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 390 mm |
| Depth | 203 mm |
| Height | 392 mm |
| Weight | 12 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 500 x 290 x 540 mm |
| Package weight | 24 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | Directives 89/336/EEC/06/95/EC Energy Star 4.0 |
Other features
| Specification | Value |
|---|---|
| HDD user password | Yes |
