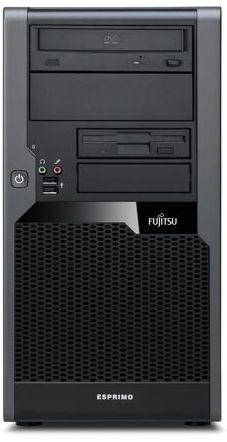

Fujitsu ESPRIMO P5730 E-Star 4.0

Model ESPRIMO P5730 E-Star 4.0Part no. LBY:PLH-P573E74VB

108 specifications

ProcessorIntel® Core™2 Duo
Memory2 GB
Storage250 GB
GraphicsIntel® GMA 4500M
TypePC
OSWindows Vista Business

See all specifications

Overview

Processor: Intel® Core™2 Duo
Memory: 2 GB
Storage: 250 GB
Graphics: Intel® GMA 4500M
Type: PC
OS: Windows Vista Business

Brand: Fujitsu
Category: PCs/Workstations
Model: ESPRIMO P5730 E-Star 4.0
Part number: LBY:PLH-P573E74VB
Also known as: Fujitsu ESPRIMO P5730 E-Star 4.0 Intel® Core™2 Duo E7400 2 GB DDR2-SDRAM 250 GB Intel® GMA 4500M Windows Vista Business Micro Tower PC

Specifications

108 specifications in 20 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	E7400
Processor cores	2
Processor threads	2
Processor frequency	2.8 GHz
Processor cache	3 MB
Processor cache type	L2
Processor front side bus	1066 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo E7000 Series
Processor codename	Wolfdale
Thermal Design Power (TDP)	65 W
Tcase	74.1 °C
Number of processors installed	1
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	228 M
Processing Die size	82 mm²
CPU multiplier (bus/core ratio)	10.5
Stepping	R0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 1 GB
Memory clock speed	800 MHz

Storage

Specification	Value
Total storage capacity	250 GB
Optical drive type	DVD Super Multi
Number of HDDs installed	1
HDD interface	SATA II
HDD speed	7200 RPM
Card reader integrated	No

Graphics

Specification	Value
Discrete graphics card model	Intel® GMA 4500M
Maximum graphics card memory	0.256 GB
Video adapter resolution	1360 x 768, 1440 x 900, 1680 x 1050, 1920 x 1200

Performance

Specification	Value
Product type	PC
Password protection type	BIOS

Network

Specification	Value
Networking features	Gigabit LAN

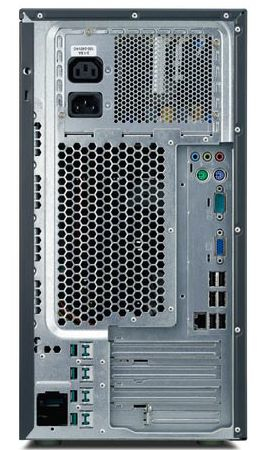

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	12
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	2
Serial ports quantity	1
Parallel ports quantity	1

Expansion slots

Specification	Value
PCI Express x4 slots	1
PCI Express x16 slots	1
PCI slots	2
Expansion slots	4 Serial ATA II NCQ and 3 GBit AHCI

Power

Specification	Value
Power supply	300 W

Design

Specification	Value
Chassis type	Micro Tower
Cable lock slot	Yes
Cable lock slot type	Kensington
External drive bays	2 x 3.5", 2 x 5.25"
Internal drive bays	2 x 3.5"

Software

Specification	Value
Operating system installed	Windows Vista Business
Optional operating system supplied	Windows XP Professional
Mac compatibility	No
Bundled software	Nero Essentials

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	2
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	36500
Processor code	SLB9Y
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	High Definition Audio Realtek ALC 663

Operational conditions

Specification	Value
Operating temperature (T-T)	15 - 35 °C

Weight & dimensions

Specification	Value
Width	203 mm
Depth	390 mm
Height	392 mm

Packaging data

Specification	Value
Package dimensions (WxDxH)	500 x 290 x 540 mm

Certificates

Specification	Value
Certification	CE FCC Class B UL CSA RoHS WEEE Blauer Engel/ Blue Angel

Features

Specification	Value
Compatibility	DMI 2.0 PC 2001 WMI 1.5

Other features

Specification	Value
Security features	TPM 1.2
HDD user password	Yes
