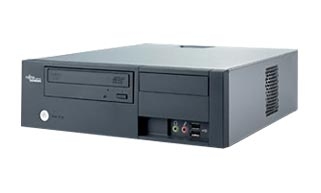

Fujitsu ESPRIMO Edition E2500 B1DE
Model ESPRIMO Edition E2500 B1DEPart no. VFY:EEDE25006XB1DE
85 specifications
- ProcessorIntel® Pentium® 4
- Memory0.5 GB
- Storage80 GB
- GraphicsUniChrome Pro
- TypePC
- OSWindows XP Professional
Overview
- Processor
- Intel® Pentium® 4
- Memory
- 0.5 GB
- Storage
- 80 GB
- Graphics
- UniChrome Pro
- Type
- PC
- OS
- Windows XP Professional
- Brand
- Fujitsu
- Category
- PCs/Workstations
- Model
- ESPRIMO Edition E2500 B1DE
- Part number
- VFY:EEDE25006XB1DE
- Also known as
- Fujitsu ESPRIMO Edition E2500 B1DE Intel® Pentium® 4 524 0.5 GB DDR2-SDRAM 80 GB UniChrome Pro Windows XP Professional SFF PC
Specifications
85 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® 4 |
| Processor model | 524 |
| Processor cores | 1 |
| Processor threads | 2 |
| Processor frequency | 3.06 GHz |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| Processor front side bus | 533 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 90 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium 4 500 Series supporting Hyper-Threading Technology |
| Processor codename | Prescott |
| Thermal Design Power (TDP) | 84 W |
| Tcase | 67.7 °C |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 125 M |
| Processing Die size | 112 mm² |
| CPU multiplier (bus/core ratio) | 23 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 0.5 GB |
| Maximum internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
| Memory slots | 2x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 80 GB |
| Optical drive type | DVD-ROM |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | UniChrome Pro |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Network
| Specification | Value |
|---|---|
| Networking features | Ethernet/Fast Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 160 W |
| Power supply input voltage | 100 - 127, 200 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows XP Professional |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 27462 |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | Realtek ALC653 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 333 mm |
| Depth | 370 mm |
| Height | 100 mm |
| Weight | 10 kg |
