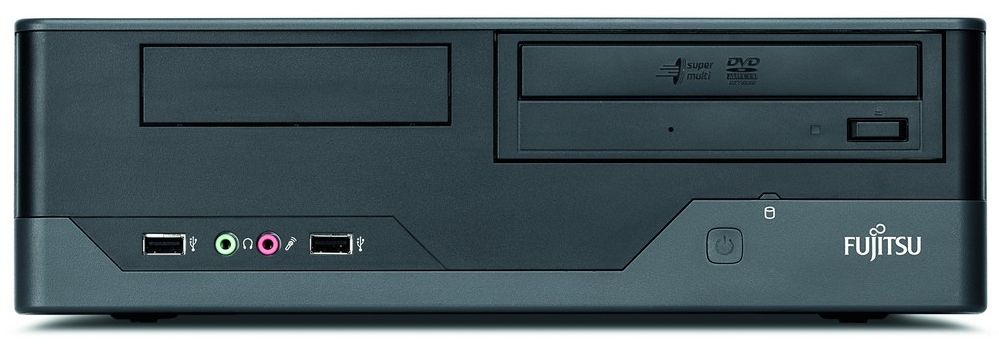

Fujitsu Esprimo E3520
Model Esprimo E3520Part no. VFY:E3520PF031FREAN 4049699164590
107 specifications
- ProcessorIntel® Pentium®
- Memory2 GB
- Storage500 GB
- TypePC
- OSWindows Vista Business
- Weight10 kg
Overview
- Processor
- Intel® Pentium®
- Memory
- 2 GB
- Storage
- 500 GB
- Type
- PC
- OS
- Windows Vista Business
- Weight
- 10 kg
- Brand
- Fujitsu
- Category
- PCs/Workstations
- Model
- Esprimo E3520
- Part numbers
- VFY:E3520PF031FR, VFY:E3520PF021NL, VFY:E3520PPBC1ES, VFY:E3520PPBA1NL, VFY:E3520PPBA1GB, VFY:E3520PPBB1GB +6 more
- EAN / UPC
- 4049699164590, 4049699168529, 4049699168512, 4049699168826 +7 more
- Also known as
- Fujitsu ESPRIMO E3520 Intel® Pentium® E5300 2 GB DDR2-SDRAM 500 GB Windows Vista Business Small Desktop PC
Specifications
107 specifications in 20 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® |
| Processor model | E5300 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.6 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor front side bus | 800 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium E5000 Series for Desktop |
| Processor codename | Wolfdale |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 74.1 °C |
| Number of processors installed | 1 |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 228 M |
| Processing Die size | 82 mm² |
| CPU multiplier (bus/core ratio) | 13 |
| Stepping | R0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | DVD-ROM |
| HDD interface | SATA II |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
| Floppy drive installed | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Password protection type | BIOS |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 0 |
| I/O ports | 4x SATA |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
Power
| Specification | Value |
|---|---|
| Power requirements | 100-240V, 47/63Hz |
| Power supply | 250 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Small Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Business |
| Compatible operating systems | Windows XP Professional |
| Drivers included | Yes |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | 2 |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 35300 |
| Processor code | SLB9U |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | Realtek ALC663 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 15 - 35% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 405 mm |
| Depth | 330 mm |
| Height | 105 mm |
| Weight | 10 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 500 x 290 x 540 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | No |
Certificates
| Specification | Value |
|---|---|
| Certification | GS, CE, FCC B, CSA, RoHS, WEEE |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| HDD user password | Yes |
