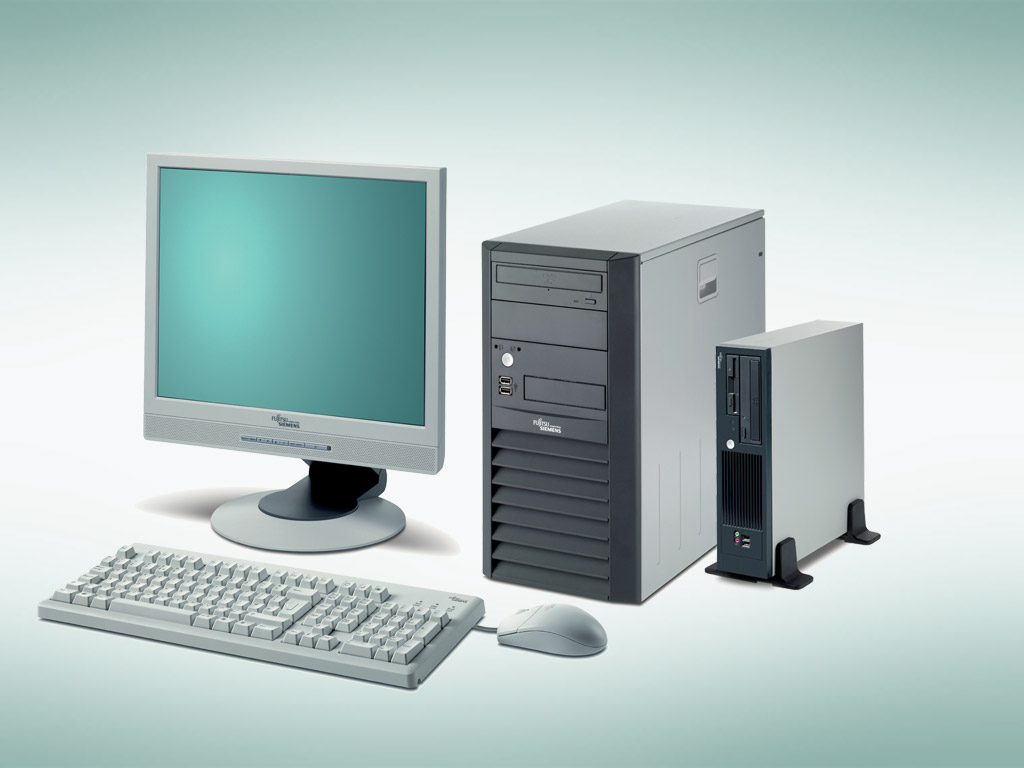

ESPRIMO E3510
Model ESPRIMO E3510Part no. VFY:E3510PPAB1GB?A19EAN 4333643870201
105 specifications
- ProcessorIntel® Core™2 Duo
- Memory2 GB
- Storage250 GB
- GraphicsIntel® GMA X3100
- TypePC
- OSWindows Vista Business
Overview
- Processor
- Intel® Core™2 Duo
- Memory
- 2 GB
- Storage
- 250 GB
- Graphics
- Intel® GMA X3100
- Type
- PC
- OS
- Windows Vista Business
- Brand
- Fujitsu
- Category
- PCs/Workstations
- Model
- ESPRIMO E3510
- Part numbers
- VFY:E3510PPAB1GB?A19, VFY:E3510PPAA1GB?A19, VFY:E3510PPAB1GB?A19TFT, VFY:E3510PPAA1GB?A19TFT, VFY:E3510PPAD1NL, VFY:E3510PF061ES +17 more
- EAN / UPC
- 4333643870201, 4333643870058, 4049699000669, 4049699016707 +6 more
- Also known as
- Fujitsu ESPRIMO E3510 Intel® Core™2 Duo E4600 2 GB DDR2-SDRAM 250 GB Intel® GMA X3100 Windows Vista Business Micro Tower PC Black, Silver
Specifications
105 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | E4600 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.4 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor front side bus | 800 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core 2 Duo E4000 Series |
| Processor codename | Conroe |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 73.3 °C |
| Number of processors installed | 1 |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 167 M |
| Processing Die size | 111 mm² |
| CPU multiplier (bus/core ratio) | 12 |
| Stepping | M0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 2 x 1 GB |
| Memory clock speed | 667 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 250 GB |
| HDD interface | SATA II |
| HDD speed | 7200 RPM |
| Card reader integrated | No |
| Storage drive controller | Serial ATA II |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Intel® GMA X3100 |
| Maximum graphics card memory | 0.256 GB |
| Video adapter resolution | 1360 x 768, 1440 x 900, 1680 x 1050, 1920 x 1200 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Password protection type | BIOS |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 1000 Mbit/s |
| Networking features | Gigabit Etehrnet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
| Expansion slots | 4 x Serial ATA II 3 GBit |
Power
| Specification | Value |
|---|---|
| Power supply | 275 W |
| Power supply input voltage | 100 - 127, 200 - 240 V |
Design
| Specification | Value |
|---|---|
| Chassis type | Micro Tower |
| Product colour | Black, Silver |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Business |
| Optional operating system supplied | Windows XP Professional |
| Mac compatibility | No |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 32242 |
| Processor code | SLA94 |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio Realtek ALC 262 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 389 mm |
| Depth | 344 mm |
| Height | 106 mm |
| Weight | 10 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 500 x 290 x 540 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | GS, CE, FCC Class B, UL, RoHS, WEEE |
Other features
| Specification | Value |
|---|---|
| HDD user password | Yes |
| Drive bays | 3 |
