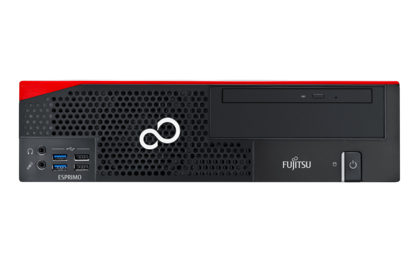

ESP D756/E85+

Model ESP D756/E85+Part no. VFY:D0756P13AOES

162 specifications

ProcessorIntel® Core™ i3
Memory4 GB
Storage500 GB
GraphicsNot available
SpeedWi-Fi 5 (802.11ac)
TypePC

See all specifications

Overview

Processor: Intel® Core™ i3
Memory: 4 GB
Storage: 500 GB
Graphics: Not available
Speed: Wi-Fi 5 (802.11ac)
Type: PC

Brand: Fujitsu
Category: PCs/Workstations
Model: ESP D756/E85+
Part number: VFY:D0756P13AOES
Also known as: Fujitsu ESPRIMO ESP D756/E85+ Intel® Core™ i3 i3-6100 4 GB DDR4-SDRAM 500 GB HDD Windows 10 Pro Mini Tower PC Black

Specifications

162 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	6th gen Intel® Core™ i3
Processor model	i3-6100
Processor cores	2
Processor threads	4
Processor frequency	3.7 GHz
Processor cache	3 MB
Processor cache type	L3
Bus type	DMI3
FSB Parity	No
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-6100 series
Processor codename	Skylake
Thermal Design Power (TDP)	51 W
Tcase	65 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1151 (Socket H4)
Stepping	S0
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,1866,2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
ECC supported by processor	Yes
Memory voltage supported by processor	1.35 V

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	64 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory slots	4x DIMM
Memory clock speed	2133 MHz
Memory channels	Dual-channel
Non-ECC	Yes

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	No
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA III
HDD speed	7200 RPM

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 530
On-board graphics card memory	1.782 GB
Maximum on-board graphics card memory	1.7 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x1912
On-board graphics card OpenGL version	4.4

Performance

Specification	Value
Product type	PC

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth	Yes
Bluetooth version	4.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	1
HDMI ports quantity	0
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
DVI port	Yes

Expansion slots

Specification	Value
Number of 3.5" bays	1
PCI Express x1 slots	1
PCI Express x4 (Gen 2.x) slots	1
PCI Express x16 (Gen 3.x) slots	1

Power

Specification	Value
Power supply	280 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Design

Specification	Value
Chassis type	Mini Tower
Placement supported	Horizontal/Vertical
Number of 5.25" bays	1
Number of 2.5" bays	1
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Recovery operating system	Windows 7 Professional
Pre-installed software	Adobe Reader, McAfee Multi Access Security
Trial software	Microsoft Office

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	90729
Processor code	SR2HG
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015C
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes
