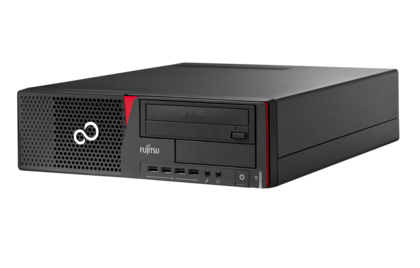

E920 E90+
Model E920 E90+Part no. VFY:E0920PXP21NLEAN 4053026438568
157 specifications
- ProcessorIntel® Core™ i7
- Memory8 GB
- Storage500 GB
- TypePC
- OSWindows 7 Professional
- Weight10 kg
Overview
- Processor
- Intel® Core™ i7
- Memory
- 8 GB
- Storage
- 500 GB
- Type
- PC
- OS
- Windows 7 Professional
- Weight
- 10 kg
- Brand
- Fujitsu
- Category
- PCs/Workstations
- Model
- E920 E90+
- Part numbers
- VFY:E0920PXP21NL, 5903719105279, VFY:E0920PXP01NC, VFY:E0920PXP11GB, VFY:E0920PXP21NC, VFY:E0920PXP21GB
- EAN / UPC
- 4053026438568, 4053026532259, 4053026696821, 4053026730419 +1 more
- Also known as
- Fujitsu ESPRIMO E920 E90+ Intel® Core™ i7 i7-4770 8 GB DDR3-SDRAM 500 GB Hybrid-HDD Windows 7 Professional Small Desktop PC Black
Specifications
157 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 4th gen Intel® Core™ i7 |
| Processor model | i7-4770 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.9 GHz |
| Processor frequency | 3.4 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI2 |
| System bus rate | 5 GT/s |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-4700 Desktop series |
| Processor codename | Haswell |
| Thermal Design Power (TDP) | 84 W |
| Tcase | 72.72 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
| Number of QPI links | 1 |
| Number of processors installed | 1 |
| Processor socket | LGA 1150 (Socket H3) |
| Stepping | C0 |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | No |
| Memory voltage supported by processor | 1.5 V |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 2 x 4 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 1600 MHz |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | DVD Super Multi |
| Storage media | Hybrid-HDD |
| Hybrid-HDD cache type | SSD |
| Hybrid-HDD capacity | 500 GB |
| HDD interface | SATA III |
| HDD speed | 5400 RPM |
| HDD size | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics 4600 |
| Maximum on-board graphics card memory | 2 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| On-board graphics card DirectX version | 11.2/12 |
| On-board graphics card ID | 0x412 |
| On-board graphics card OpenGL version | 4.3 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel® Q87 |
| Password protection | Yes |
| Password protection type | HDD, Supervisor, User |
| BIOS type | AMI |
| Audio output channels | 5.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |

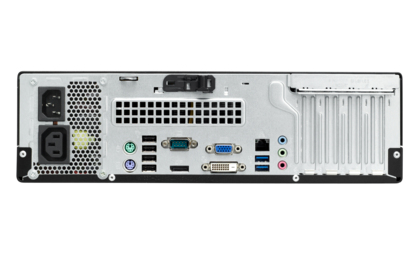

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 10 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| PS/2 ports quantity | 2 |
| RS‐232/422 port | Yes |
| Total number of SATA connectors | 6 |
| Number of SATA III connectors | 6 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 2 |
| PCI Express x1 slots | 2 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 280 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Small Desktop |
| Placement supported | Horizontal/Vertical |
| Number of 5.25" bays | 1 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
| Recovery operating system | Windows 8 Pro |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 22 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Cache | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 75122 |
| Processor code | SR149 |
| Processor package size | 37.5 x 37.5 mm |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2013D |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Conflict-Free processor | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC671 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 5 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 340 mm |
| Depth | 382 mm |
| Height | 98 mm |
| Weight | 10 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 467 mm |
| Package depth | 265 mm |
| Package height | 540 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | TÜV GS, CE, FCC, cCSAus, WEEE, HCT/HCL entry/WHQL |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | Blue Angel, EPEAT Gold, ENERGY STAR |
