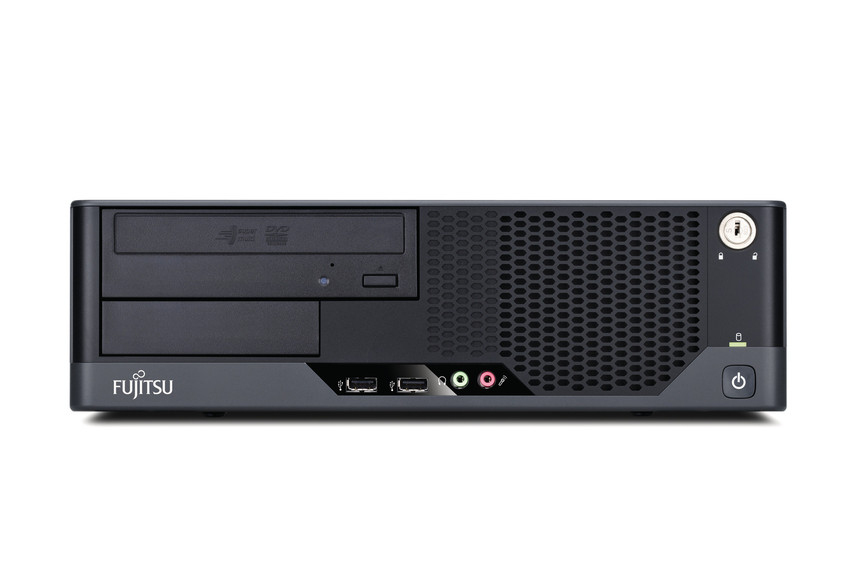

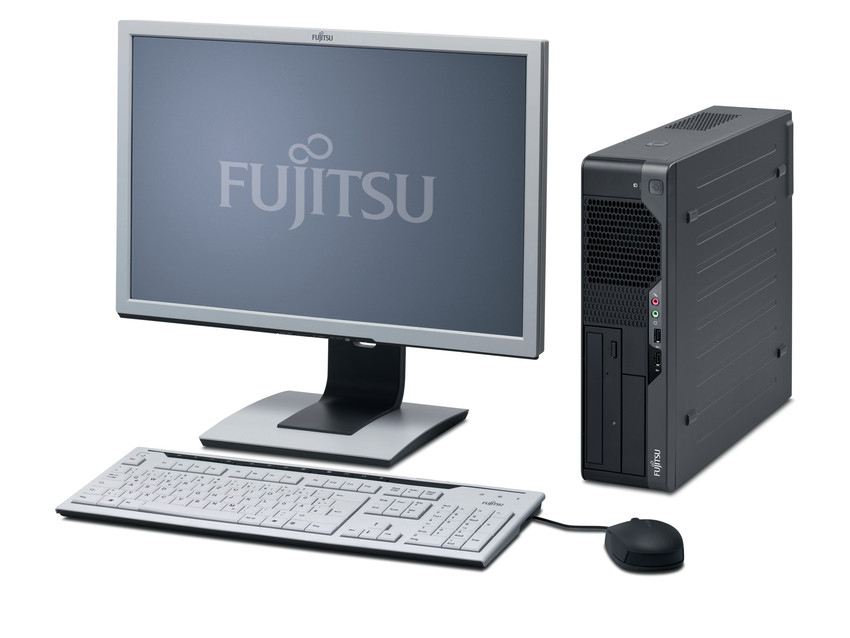

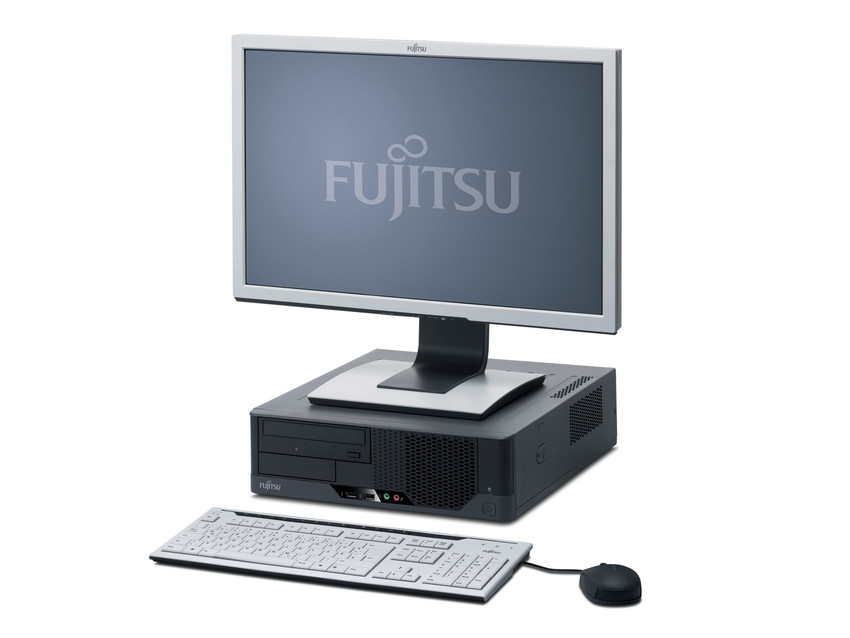

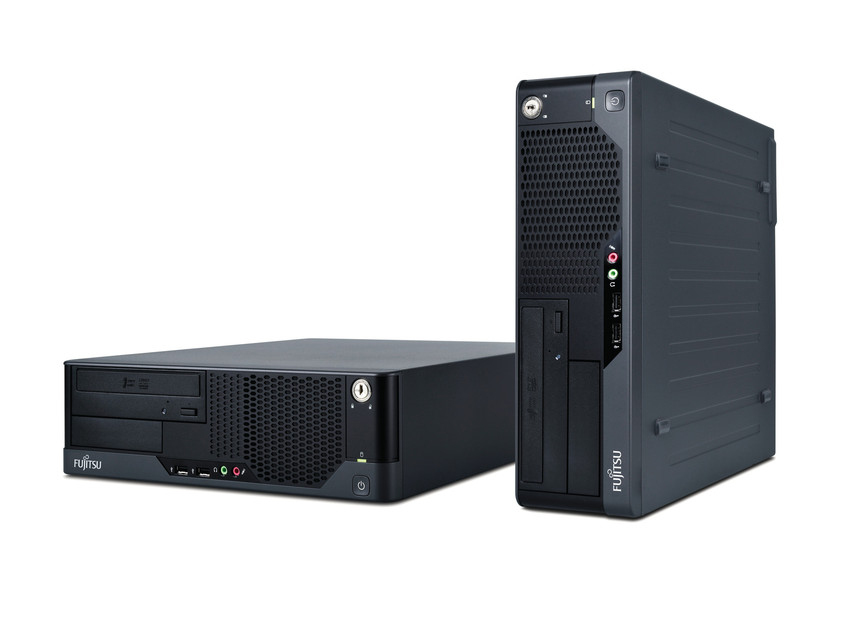

ESPRIMO E5645 AMD Phenom II X6 1035T
4 GB DDR3-SDRAM 1 TB AMD Radeon HD 4200 Windows 7 Professional SFF PC Black
Model E5645Part no. VFY:E5645PX621GB
87 specifications
- ProcessorAMD Phenom II X6
- Memory4 GB
- Storage1 TB
- GraphicsAMD Radeon HD 4200
- TypePC
- OSWindows 7 Professional
Overview
- Processor
- AMD Phenom II X6
- Memory
- 4 GB
- Storage
- 1 TB
- Graphics
- AMD Radeon HD 4200
- Type
- PC
- OS
- Windows 7 Professional
- Brand
- Fujitsu
- Category
- PCs/Workstations
- Model
- E5645
- Part number
- VFY:E5645PX621GB
- Also known as
- Fujitsu ESPRIMO E5645 AMD Phenom II X6 1035T 4 GB DDR3-SDRAM 1 TB AMD Radeon HD 4200 Windows 7 Professional SFF PC Black
Specifications
87 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Phenom II X6 |
| Processor model | 1035T |
| Processor cores | 6 |
| Processor frequency | 2.6 GHz |
| Processor cache | 9 MB |
| Processor cache type | L2 |
| Number of processors installed | 1 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 2 x 2 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 1333 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | DVD Super Multi |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | SATA II |
| HDD speed | 7200 RPM |
| Card reader integrated | No |
| Floppy drive installed | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | AMD Radeon HD 4200 |
| Maximum graphics card memory | 2.811 GB |
| Graphics card family | AMD |
| Video adapter features | DirectX 10.1, HDCP, OpenGL 2.0 |
| External video modes refresh rate (max) | 85 Hz |
| External video modes resolution (max) | 2560 x 1600 pixels |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | AMD 785G |
| Password protection type | BIOS |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |
| Networking features | Gigabit Ethernet |

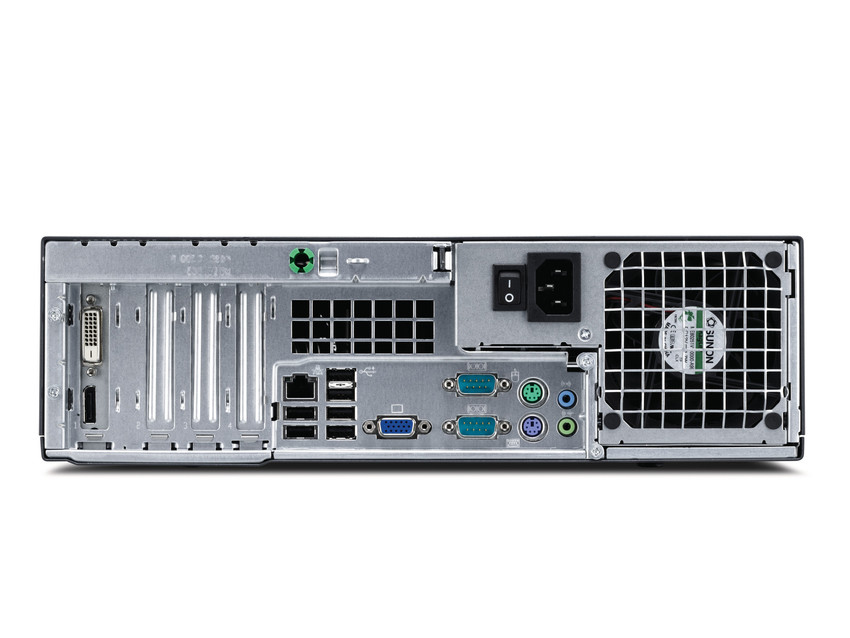

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 12 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
Power
| Specification | Value |
|---|---|
| Power supply type | AC/DC |
| Power supply | 250 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| External drive bays | 1x 3.5", 1x 5.25" |
| Internal drive bays | 1x 3.5" |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
| Compatible operating systems | Microsoft Windows 7 Home Basic (EM) 32-bit, Windows 7 Home Premium 64-bit, Windows 7 Professional 32-bit, Windows Vista, Windows XP, openSUSE Linux |
| Mac compatibility | No |
| Pre-installed software | Nero Essentials S |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio system | Realtek ALC663 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 340 mm |
| Depth | 380 mm |
| Height | 100 mm |
| Weight | 10 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 500 x 290 x 540 mm |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
| Remote control included | No |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Certification | Blue Angel, CE, FCC B, cCSAus, RoHS, WEEE, HCT, HCL entry, WHQL, ENERGY STAR 5.0, EPEAT Silver |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| HDD user password | Yes |
| Motherboard | D2984 |
