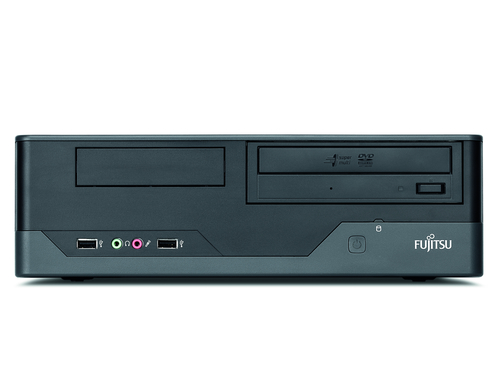

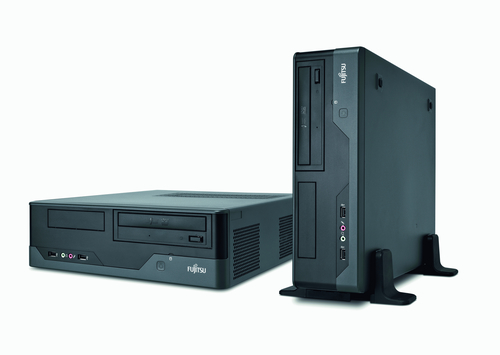

ESPRIMO E3520 Intel® Pentium® E5300
2 GB DDR2-SDRAM 160 GB Intel® GMA 4500M Windows 7 Professional SFF PC Black
Model E3520Part no. VFY:E3520PF011GBEAN 4049699192890
111 specifications
- ProcessorIntel® Pentium®
- Memory2 GB
- Storage160 GB
- GraphicsIntel® GMA 4500M
- TypePC
- OSWindows 7 Professional
Overview
- Processor
- Intel® Pentium®
- Memory
- 2 GB
- Storage
- 160 GB
- Graphics
- Intel® GMA 4500M
- Type
- PC
- OS
- Windows 7 Professional
- Brand
- Fujitsu
- Category
- PCs/Workstations
- Model
- E3520
- Part numbers
- VFY:E3520PF011GB, VFY:E3520PPBA1FR, VFY:E3520PPBB1FR
- EAN / UPC
- 4049699192890
- Also known as
- Fujitsu ESPRIMO E3520 Intel® Pentium® E5300 2 GB DDR2-SDRAM 160 GB Intel® GMA 4500M Windows 7 Professional SFF PC Black
Specifications
111 specifications in 21 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® |
| Processor model | E5300 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.6 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor front side bus | 800 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium E5000 Series for Desktop |
| Processor codename | Wolfdale |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 74.1 °C |
| Number of processors installed | 1 |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 228 M |
| Processing Die size | 82 mm² |
| CPU multiplier (bus/core ratio) | 13 |
| Maximum number of SMP processors | 1 |
| Stepping | R0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR2-SDRAM |
| Memory clock speed | 800 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 160 GB |
| Optical drive type | DVD Super Multi |
| Number of HDDs installed | 1 |
| HDD interface | SATA II |
| HDD speed | 7200 RPM |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Intel® GMA 4500M |
| Maximum graphics card memory | 0.256 GB |
| External video modes refresh rate (max) | 85 Hz |
| External video modes resolution (max) | 1920 x 1200 pixels |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Password protection type | BIOS |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |

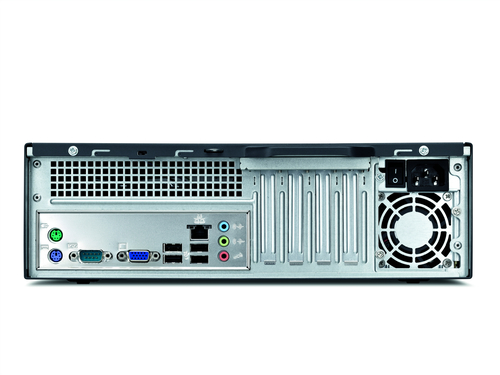

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
Power
| Specification | Value |
|---|---|
| Power requirements | AC 100-240V@50-60Hz |
| Power supply | 250 W |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Product colour | Black |
| External drive bays | 1x 3.5", 1x 5.25" |
| Internal drive bays | 1x 3.5" |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Compatible operating systems | Microsoft Windows 7 Home Premium/Vista Home Basic/Vista Home Premium/XP Professional, Linux |
| Bundled software | Nero Essentials |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | 2 |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 35300 |
| Processor code | SLB9U |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | Realtek ALC663 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 35 °C |
Ergonomics
| Specification | Value |
|---|---|
| Acoustic pressure emissions | 29 dB |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 405 mm |
| Depth | 330 mm |
| Height | 105 mm |
| Weight | 10 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 500 x 290 x 540 mm |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | DMI 2.0, PC 2001, WMI 1.5, USB 2.0 |
| Certification | GS, CE, FCC Class B, CSA, RoHS, WEEE, ENERGY STAR 5.0, EPEAT Silver |
Other features
| Specification | Value |
|---|---|
| Motherboard | D2841 |
