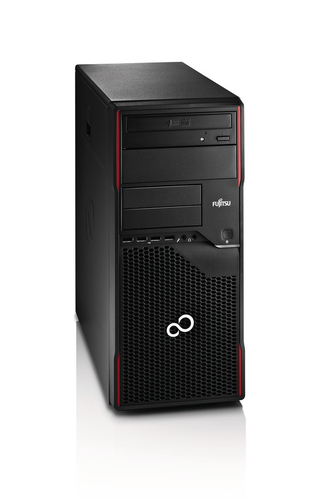

Fujitsu ESPRIMO E3510 Intel® Pentium® E5200

1 GB DDR2-SDRAM 160 GB HDD SFF PC Black

Model E3510Part no. VFY:E3510PPBI1FR

114 specifications

ProcessorIntel® Pentium®
Memory1 GB
Storage160 GB
TypePC
Weight10 kg
ColourBlack

See all specifications

Overview

Processor: Intel® Pentium®
Memory: 1 GB
Storage: 160 GB
Type: PC
Weight: 10 kg
Colour: Black

Brand: Fujitsu
Category: PCs/Workstations
Model: E3510
Part number: VFY:E3510PPBI1FR
Also known as: Fujitsu ESPRIMO E3510 Intel® Pentium® E5200 1 GB DDR2-SDRAM 160 GB HDD SFF PC Black

Specifications

114 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	E5200
Processor cores	2
Processor threads	2
Processor frequency	2.5 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	800 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Pentium E5000 Series for Desktop
Processor codename	Wolfdale
Thermal Design Power (TDP)	65 W
Tcase	74.1 °C
Number of processors installed	1
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	228 M
Processing Die size	82 mm²
CPU multiplier (bus/core ratio)	12.5
Stepping	M0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Maximum internal memory	4 GB
Internal memory type	DDR2-SDRAM
Memory slots	2x DIMM

Storage

Specification	Value
Total storage capacity	160 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	160 GB

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® GMA
On-board graphics card model	Intel® GMA 3100

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® G31
Motherboard form factor	micro BTX
Password protection type	BIOS

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	2
Serial ports quantity	1

Expansion slots

Specification	Value
Number of 3.5" bays	2
PCI Express x16 slots	1
PCI slots	2

Power

Specification	Value
Power supply	275 W
Power supply input voltage	90 - 264 V
Power supply input frequency	47 - 63 Hz

Design

Specification	Value
Chassis type	SFF
Number of 5.25" bays	1
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black
Cooling type	Active

Software

Specification	Value
Optional operating system supplied	Windows XP Professional

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	37212
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	HD

Weight & dimensions

Specification	Value
Width	389 mm
Depth	344 mm
Height	106 mm
Weight	10 kg

Packaging data

Specification	Value
Package width	290 mm
Package depth	540 mm
Package height	500 mm

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	IEC, EN, WEEE
