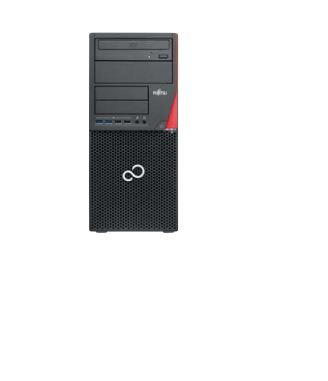

Fujitsu D556 + L21T-1

Model D556 + L21T-1Part no. VFY:D0556P73AONLB1

181 specifications

Display52.6 cm (20.7")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i3
Memory4 GB
Storage500 GB
GraphicsNot available

See all specifications

Overview

Display: 52.6 cm (20.7")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i3
Memory: 4 GB
Storage: 500 GB
Graphics: Not available

Brand: Fujitsu
Category: PCs/Workstations
Model: D556 + L21T-1
Part number: VFY:D0556P73AONLB1
Also known as: Fujitsu ESPRIMO D556 + L21T-1 Intel® Core™ i3 i3-6100 4 GB DDR4-SDRAM 500 GB Hybrid-HDD Windows 10 Pro SFF PC Black

Specifications

181 specifications in 21 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	6th gen Intel® Core™ i3
Processor model	i3-6100
Processor cores	2
Processor threads	4
Processor frequency	3.7 GHz
Processor cache	3 MB
Processor cache type	L3
Bus type	DMI3
FSB Parity	No
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-6100 series
Processor codename	Skylake
Thermal Design Power (TDP)	51 W
Tcase	65 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1151 (Socket H4)
Stepping	S0
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,1866,2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
ECC supported by processor	Yes
Memory voltage supported by processor	1.35 V

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	32 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory slots	2x DIMM
Memory clock speed	2133 MHz
Memory channels	Dual-channel
Non-ECC	Yes

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	DVD Super Multi
Storage media	Hybrid-HDD
Number of storage drives installed	1
Number of storage drives supported	1
Hybrid-HDD cache type	Flash
Hybrid-HDD capacity	500 GB
Hybrid-HDD cache memory	8 GB
HDD interface	SATA III
HDD speed	7200 RPM
HDD size	3.5"

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 530
Maximum on-board graphics card memory	1.7 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x1912
On-board graphics card OpenGL version	4.4
Graphics card Open GL support	Yes

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® H110
Password protection	Yes
Password protection type	BIOS, HDD, Supervisor, User
BIOS type	UEFI AMI
Audio output channels	5.1 channels

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
DisplayPorts quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	Yes
PS/2 ports quantity	2
Total number of SATA connectors	3
Number of SATA III connectors	3

Expansion slots

Specification	Value
Number of 3.5" bays	2
PCI Express x1 slots	1
PCI Express x4 (Gen 2.x) slots	1
PCI Express x16 (Gen 3.x) slots	1

Power

Specification	Value
Power supply	280 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Design

Specification	Value
Chassis type	SFF
Placement supported	Horizontal/Vertical
Number of 5.25" bays	1
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Drivers included	Yes

Display

Specification	Value
Display included	Yes
Display diagonal	52.6 cm (20.7")
Display type	LED
Full HD	Yes
Display resolution	1920 x 1080 pixels
Panel type	TN
Native aspect ratio	16:9
Contrast ratio (typical)	1000:1
Display number of colours	16.78 million colours
Touchscreen	No
Display brightness	250 cd/m²
Viewing angle, horizontal	170°
Viewing angle, vertical	160°

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel HD Graphics	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Built-in Visuals Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	90729
Processor code	SR2HG
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015C
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes

Audio

Specification	Value
Audio system	High Definition Audio

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	5 - 85%

Weight & dimensions

Specification	Value
Width	332 mm
Depth	338 mm
Height	89 mm
Weight	8 kg

Packaging content

Specification	Value
Keyboard included	Yes
Manual	Yes

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	TÜV GS, FCC Class B, cCSAus, WEEE, Microsoft Operating Systems (HCT / HCL entry / WHQL)

Sustainability

Specification	Value
Sustainability certificates	Blue Angel, EPEAT Gold, ENERGY STAR

Other features

Specification	Value
Intel segment tagging	Home office, Small Business
