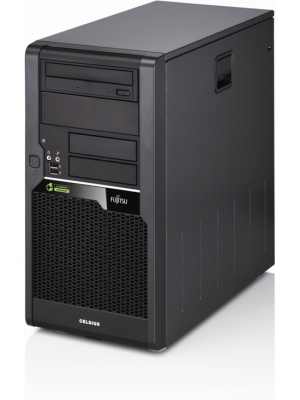

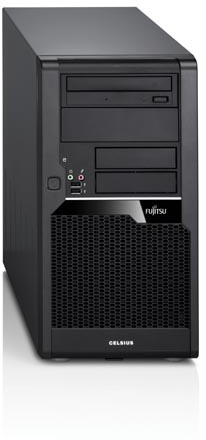

Fujitsu CELSIUS W280 + SCENICVIEW P22W-5 ECO

Model CELSIUS W280 + SCENICVIEW P22W-5 ECOPart no. VFY:W2800WXG21FR/KIT

125 specifications

ProcessorIntel® Core™ i7
Memory4 GB
Storage500 GB
TypeWorkstation
OSWindows 7 Professional
Weight12 kg

See all specifications

Overview

Processor: Intel® Core™ i7
Memory: 4 GB
Storage: 500 GB
Type: Workstation
OS: Windows 7 Professional
Weight: 12 kg

Brand: Fujitsu
Category: PCs/Workstations
Model: CELSIUS W280 + SCENICVIEW P22W-5 ECO
Part number: VFY:W2800WXG21FR/KIT
Also known as: Fujitsu CELSIUS W280 + SCENICVIEW P22W-5 ECO Intel® Core™ i7 i7-870 4 GB DDR3-SDRAM Windows 7 Professional Tower Workstation Black

Specifications

125 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7
Processor model	i7-870
Processor cores	4
Processor threads	8
Processor boost frequency	3.6 GHz
Processor frequency	2.93 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	2.5 GT/s
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-800 Desktop Series
Processor codename	Lynnfield
Thermal Design Power (TDP)	95 W
Tcase	72.7 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1156 (Socket H)
Number of Processing Die Transistors	774 M
Processing Die size	296 mm²
CPU multiplier (bus/core ratio)	22
Maximum number of SMP processors	1
Stepping	B1
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3 1066/1333
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 2 GB
Memory clock speed	1333 MHz
Memory channels	Dual-channel
Non-ECC	Yes

Storage

Specification	Value
Optical drive type	DVD Super Multi DL
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA II
HDD speed	7200 RPM
Card reader integrated	No
RAID support	Yes
RAID levels	0, 1, 10

Graphics

Specification	Value
Maximum graphics card memory	0.256 GB
Graphics card	Firepro V3800

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® Q57 Express

Network

Specification	Value
Networking features	Gigabit Ethernet (10/100/1000)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	12
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	2
Microphone in	Yes
PS/2 ports quantity	2
Serial ports quantity	1
Parallel ports quantity	0

Expansion slots

Specification	Value
PCI Express x4 slots	1
PCI Express x16 slots	1
PCI slots	1

Power

Specification	Value
Power requirements	100 - 240 V, 50 - 60 Hz
Power supply	300 W

Design

Specification	Value
Chassis type	Tower
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black
External drive bays	2 x 5.25", 2 x 3.5"
Internal drive bays	2 x 3.5"

Software

Specification	Value
Operating system installed	Windows 7 Professional
Optional operating system supplied	Windows XP Professional
Compatible operating systems	Windows Vista Business 64-bit Windows Vista Business 32-bit Windows XP Professional x64 Windows XP Professional Linux
Drivers included	Yes

Display

Specification	Value
Display included	Yes

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	41315
Processor code	SLBJG
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	1.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	Realtek ALC663
Speakers	1

Operational conditions

Specification	Value
Operating temperature (T-T)	15 - 35 °C
Operating relative humidity (H-H)	10 - 75%

Weight & dimensions

Specification	Value
Width	203 mm
Depth	390 mm
Height	392 mm
Weight	12 kg

Certificates

Specification	Value
Certification	S.M.A.R.T., CE, FCC, cCSAus, RoHS, ENERGY STAR 5.0

Other features

Specification	Value
HDD user password	Yes
