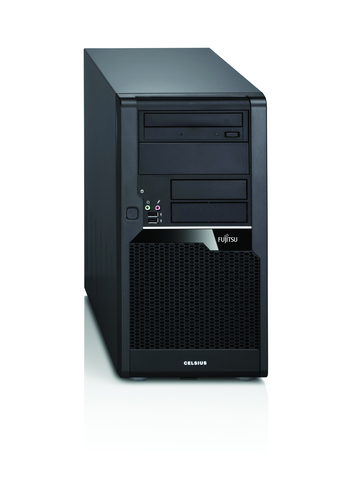

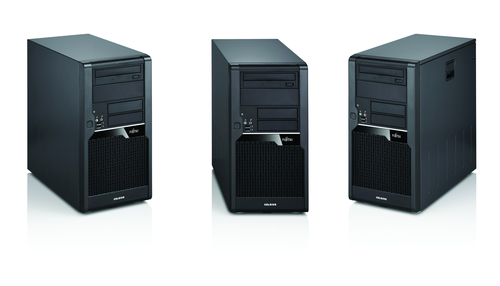

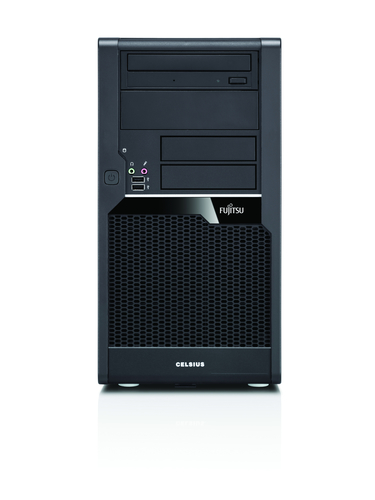

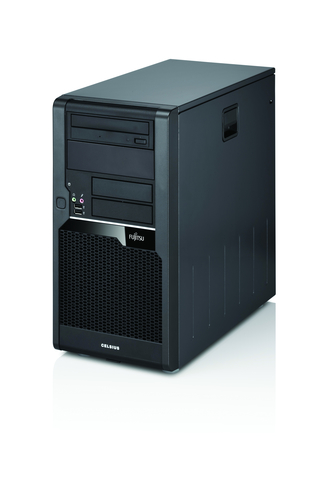

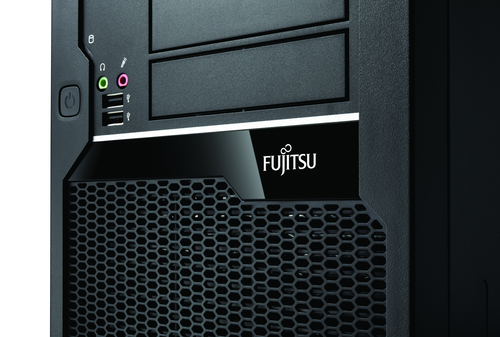

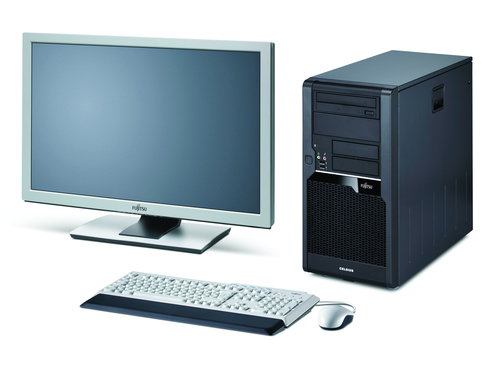

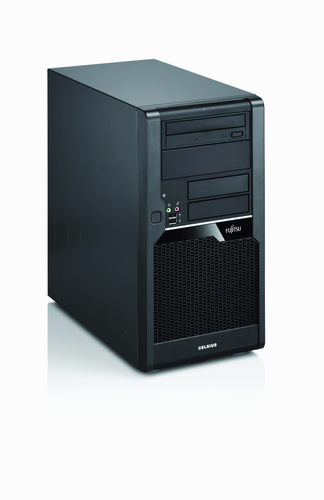

CELSIUS W280

Model CELSIUS W280Part no. VFY:W2800WXG21FREAN 4049699269257

120 specifications

Overview

Brand: Fujitsu
Category: PCs/Workstations
Model: CELSIUS W280
Part numbers: VFY:W2800WXG21FR, VFY:W2800WF041CH, VFY:W2800WF011BE, VFY:W2800WF011NL, VFY:W2800WXG11FR, VFY:W2800WF021FR
EAN / UPC: 4049699269257, 4049699265495, 4049699285868, 4049699370618 +1 more
Also known as: Fujitsu CELSIUS W280 Intel® Core™ i3 i3-530 4 GB DDR3-SDRAM Windows 7 Professional Minitower Workstation

120 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	Intel® Core™ i3
Processor model	i3-530
Processor cores	2
Processor threads	4
Processor frequency	2.93 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	2.5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-500 Desktop Series
Processor codename	Clarkdale
Thermal Design Power (TDP)	73 W
Tcase	72.6 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1156 (Socket H)
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	22
Maximum number of SMP processors	1
Stepping	C2
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3 1066/1333
Memory bandwidth supported by processor (max)	21 GB/s
ECC supported by processor	No

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	733 MHz
Maximum graphics card memory	0.256 GB
Graphics card	HD Graphics

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® Q57 Express

Specification	Value
Power requirements	AC 100-240V@50-60Hz
Power availability	300 W

Specification	Value
Operating system installed	Windows 7 Professional
Optional operating system supplied	Windows XP Professional
Compatible operating systems	Microsoft Windows 7 Home Premium/Vista Business, Linux

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	46472
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No
