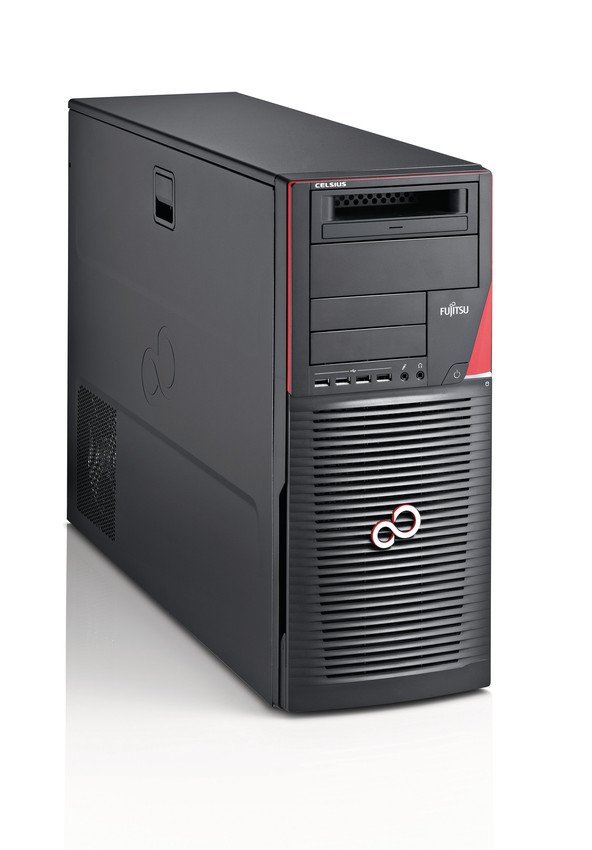

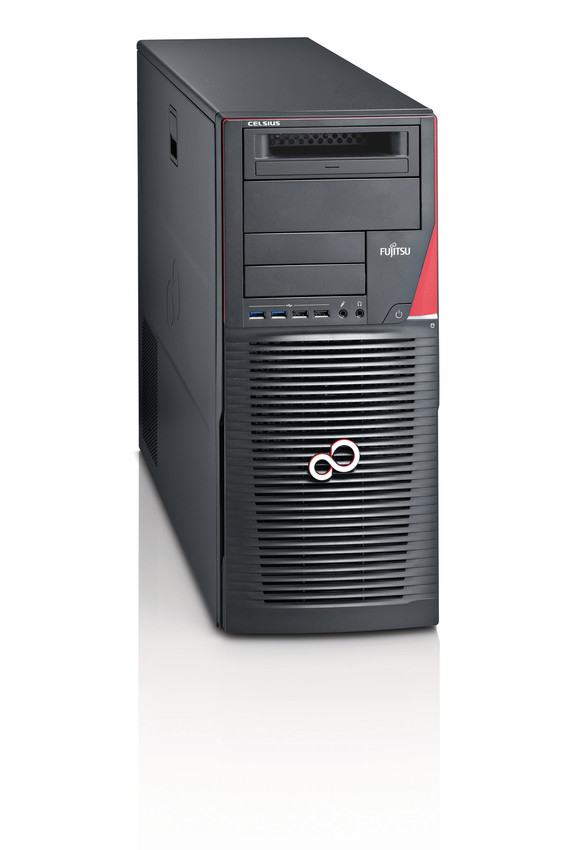

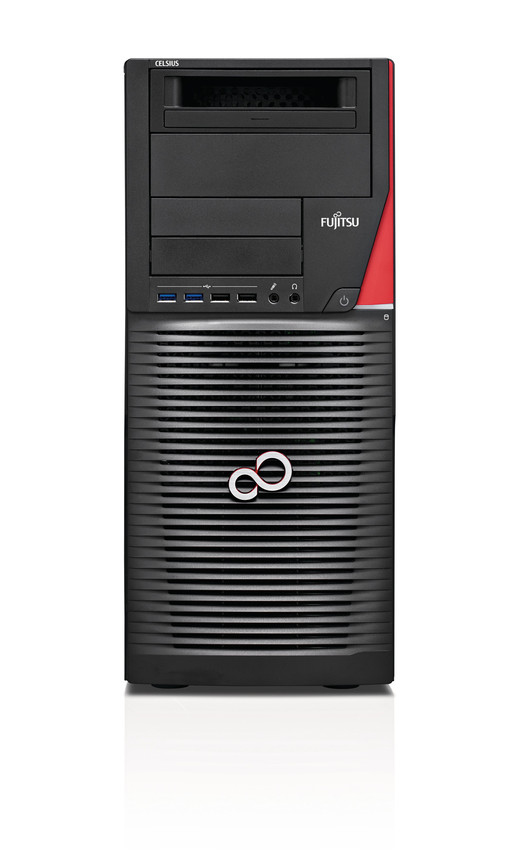

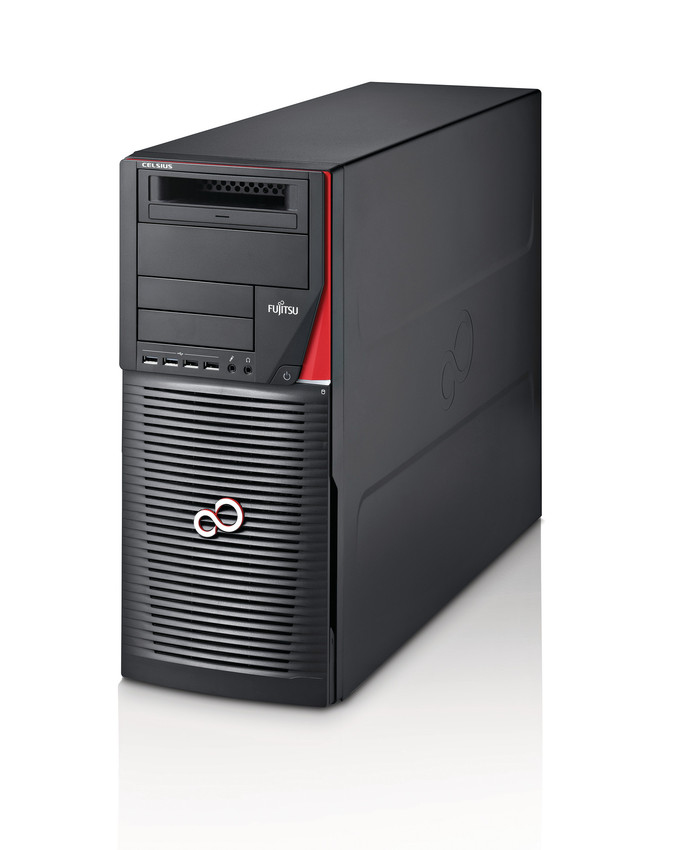

Fujitsu CELSIUS R940
Model CELSIUS R940Part no. CELR02001
145 specifications
- ProcessorIntel Xeon E5 v3
- Memory16 GB
- Storage500 GB
- GraphicsNVIDIA® Quadro® K420
- TypeWorkstation
- OSWindows 8.1 Pro
Overview
- Processor
- Intel Xeon E5 v3
- Memory
- 16 GB
- Storage
- 500 GB
- Graphics
- NVIDIA® Quadro® K420
- Type
- Workstation
- OS
- Windows 8.1 Pro
- Brand
- Fujitsu
- Category
- PCs/Workstations
- Model
- CELSIUS R940
- Part number
- CELR02001
- Also known as
- Fujitsu CELSIUS R940 Intel Xeon E5 v3 E5-2603V3 16 GB DDR4-SDRAM 500 GB HDD NVIDIA® Quadro® K420 Windows 8.1 Pro Midi Tower Workstation Black
Specifications
145 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E5 v3 |
| Processor model | E5-2603V3 |
| Processor cores | 6 |
| Processor threads | 6 |
| Processor frequency | 1.6 GHz |
| Processor cache | 15 MB |
| Processor cache type | Smart Cache |
| Bus type | QPI |
| FSB Parity | No |
| System bus rate | 6.4 GT/s |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E5-2600 v3 |
| Processor codename | Haswell |
| Thermal Design Power (TDP) | 85 W |
| Tcase | 72.8 °C |
| Maximum number of PCI Express lanes | 40 |
| PCI Express configurations | x4, x8, x16 |
| PCI Express slots version | 3.0 |
| Number of QPI links | 2 |
| Number of processors installed | 2 |
| Processor socket | LGA 2011-v3 |
| Stepping | R2 |
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600 MHz |
| Memory bandwidth supported by processor (max) | 51 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 512 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 16x DIMM |
| Memory clock speed | 2133 MHz |
| ECC | Yes |
| Memory channels | Quad-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | SATA III |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| Discrete graphics card model | NVIDIA® Quadro® K420 |
| Discrete graphics card memory | 1 GB |
| On-board graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® C612 |
| Password protection | Yes |
| Password protection type | BIOS, Supervisor, User |
| BIOS type | AMI |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |

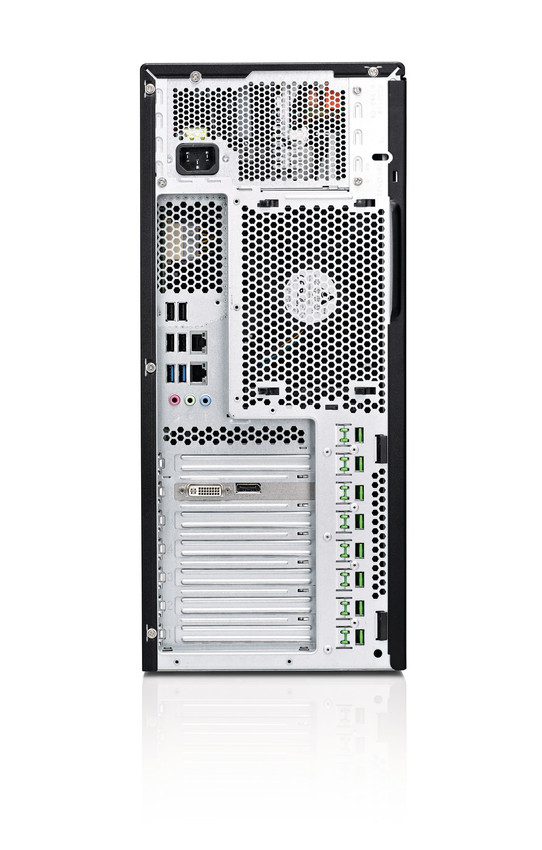

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 2 |
| Microphone in | Yes |
| DVI port | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 6 |
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x4 (Gen 2.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 4 |
Power
| Specification | Value |
|---|---|
| Power supply | 1000 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| Power consumption (typical) | 500 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Midi Tower |
| Number of 5.25" bays | 2 |
| Number of 2.5" bays | 8 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Liquid cooling system | No |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 8.1 Pro |
| Operating system architecture | 64-bit |
| Trial software | McAfee Multi Access Security, Microsoft Office |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 46 bit |
| Processor ARK ID | 83349 |
| Processor package size | 52.5 x 45 mm |
| Scalability | 2S |
| Supported instruction sets | AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | Realtek ALC671 |
| Speakers supplied | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 5 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 186 mm |
| Depth | 618 mm |
| Height | 430 mm |
| Weight | 20 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 394 mm |
| Package depth | 730 mm |
| Package height | 578 mm |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | GS, CE, FCC B, cCSAus, HCT, HCL entry, WHQL |
