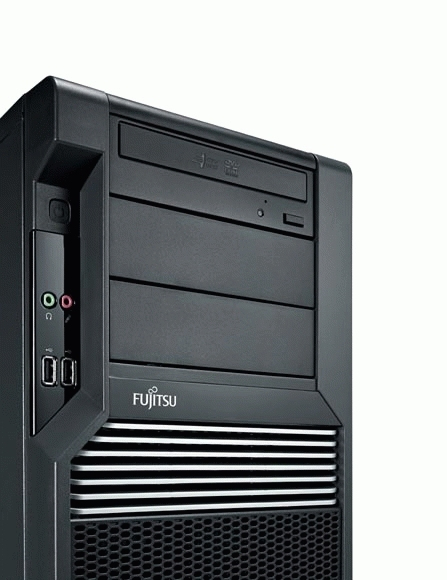

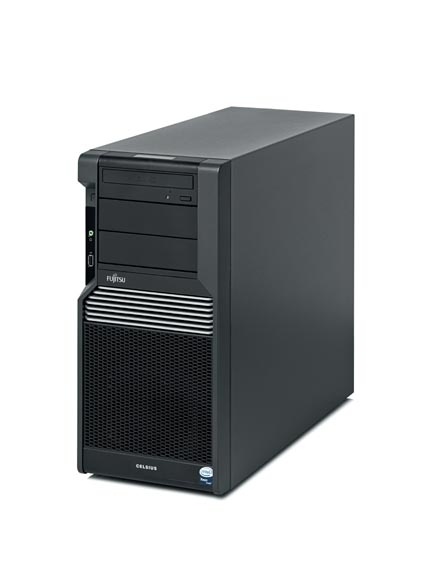

Fujitsu CELSIUS R570

Model CELSIUS R570Part no. LKN:R5700W0004DEEAN 4049699188848

113 specifications

Overview

Brand: Fujitsu
Category: PCs/Workstations
Model: CELSIUS R570
Part numbers: LKN:R5700W0004DE, S26361-K994-V315
EAN / UPC: 4049699188848
Also known as: Fujitsu CELSIUS R570 Intel® Xeon® 5000 Sequence E5530 8 GB DDR3-SDRAM Tower Workstation

113 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	E5530
Processor cores	4
Processor threads	8
Processor boost frequency	2.66 GHz
Processor frequency	2.4 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
System bus rate	5.86 GT/s
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Xeon 5500 Series
Processor codename	Nehalem EP
Processor system type	DP
Thermal Design Power (TDP)	80 W
Tcase	76 °C
Number of QPI links	2
Number of processors installed	2
Processor socket	Socket B (LGA 1366)
Number of Processing Die Transistors	731 M
Processing Die size	263 mm²
CPU multiplier (bus/core ratio)	18
Maximum number of SMP processors	2
Stepping	D0
Maximum internal memory supported by processor	144 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	Yes

Specification	Value
Product type	Workstation

Specification	Value
Networking speed	10/100/1000 Mbit/s

Specification	Value
Power supply	1000 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Specification	Value
Optional operating system supplied	Windows XP Professional
Compatible operating systems	Windows 7 Pro 32/64 Windows Vista Business 32/64-bit Windows XP Pro 32/64-bit Linux
Mac compatibility	No
Drivers included	Yes

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	2
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	40 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	37103
Processor code	SLBF7
Processor package size	42.5 x 45 mm
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	1.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Specification	Value
Audio system	Realtek ALC663

Specification	Value
Operating temperature (T-T)	15 - 35 °C
Operating relative humidity (H-H)	10 - 75%

Specification	Value
Certification	GS CE cCSAus FCC Class B RoHS IEC60601-1-2 CCC ENERGY STAR 5.0
