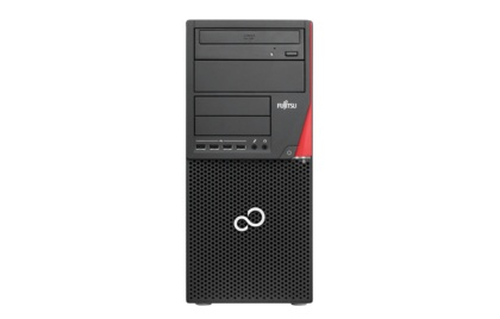

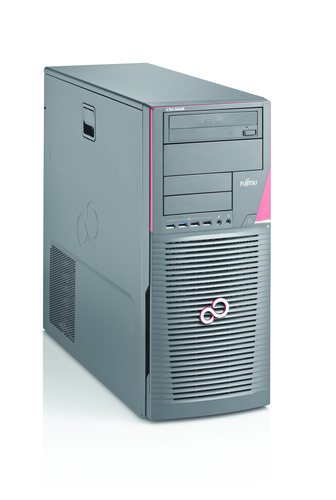

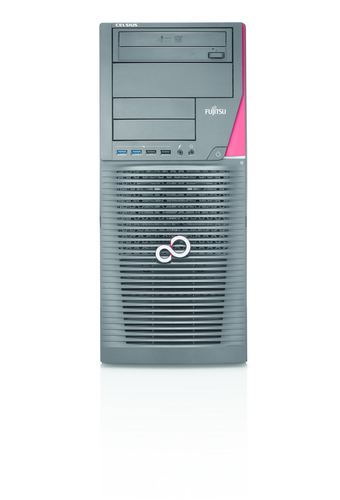

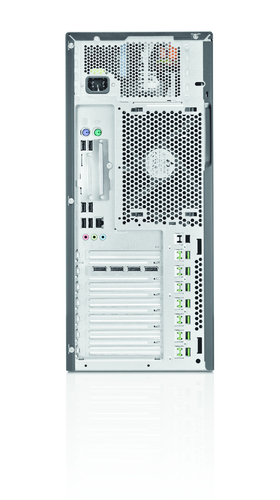

Fujitsu CELSIUS M730

Model CELSIUS M730Part no. VFY:M7300WXGA1ITEAN 4053026521611

136 specifications

ProcessorIntel® Xeon® E5 Family
Memory16 GB
Storage256 GB
TypeWorkstation
OSWindows 7 Professional
Weight18 kg

See all specifications

Overview

Processor: Intel® Xeon® E5 Family
Memory: 16 GB
Storage: 256 GB
Type: Workstation
OS: Windows 7 Professional
Weight: 18 kg

Brand: Fujitsu
Category: PCs/Workstations
Model: CELSIUS M730
Part numbers: VFY:M7300WXGA1IT, CELM01006, CELM02001, VFY:M7300W78A1CH, VFY:M7300W7811IT, VFY:M7300W7841IT +1 more
EAN / UPC: 4053026521611, 4053026521628, 4053026521642, 4053026521659 +1 more
Also known as: Fujitsu CELSIUS M730 Intel® Xeon® E5 Family E5-1620V2 16 GB DDR3-SDRAM 256 GB SSD Windows 7 Professional Desktop Workstation Black

Specifications

136 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 Family
Processor model	E5-1620V2
Processor cores	4
Processor threads	8
Processor boost frequency	3.9 GHz
Processor frequency	3.7 GHz
Processor cache	10 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E5-1600 v2
Processor codename	Ivy Bridge EP
Thermal Design Power (TDP)	130 W
Tcase	70 °C
Maximum number of PCI Express lanes	40
PCI Express configurations	x4, x8, x16
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 2011 (Socket R)
Maximum internal memory supported by processor	256 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066,1333,1600,1866 MHz
Memory bandwidth supported by processor (max)	59.7 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	16 GB
Maximum internal memory	128 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	4 x 4 GB
Memory slots	8x DIMM
Memory clock speed	1600 MHz
ECC	Yes
Memory channels	Quad-channel

Storage

Specification	Value
Total storage capacity	256 GB
Optical drive type	DVD Super Multi
Storage media	SSD
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	SATA II
Card reader integrated	Yes
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

Specification	Value
On-board graphics card	No
On-board graphics card model	Not available

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C602
Motherboard form factor	ATX
Password protection type	BIOS

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
PS/2 ports quantity	2

Expansion slots

Specification	Value
Number of 3.5" bays	4
PCI Express x4 (Gen 2.x) slots	1
PCI Express x4 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	2
PCI slots	2

Design

Specification	Value
Chassis type	Desktop
Number of 5.25" bays	2
Number of 2.5" bays	8
Cable lock slot	Yes
Cable lock slot type	Kensington
Liquid cooling system	No
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Pre-installed software	McAfee Multi Access Security, Microsoft Office

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	75779
Processor package size	52.5 x 45.0 mm
Scalability	1S
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	Conexant CX20642

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	5 - 85%

Weight & dimensions

Specification	Value
Width	186 mm
Depth	481 mm
Height	430 mm
Weight	18 kg

Packaging content

Specification	Value
Mouse included	No
Keyboard included	Yes

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR
