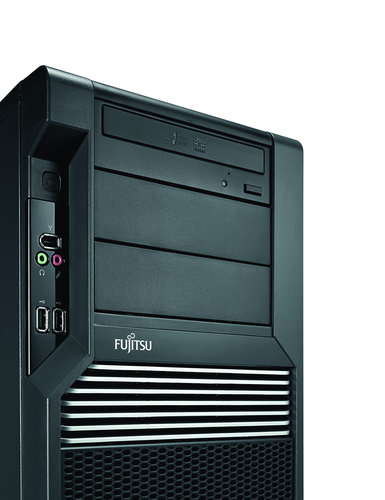

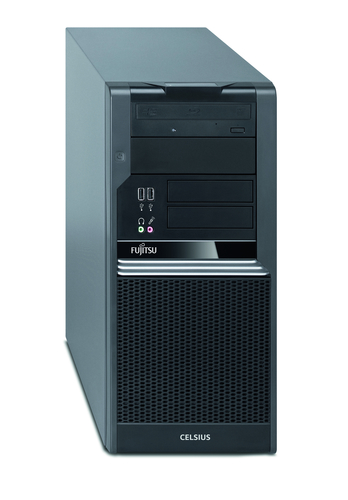

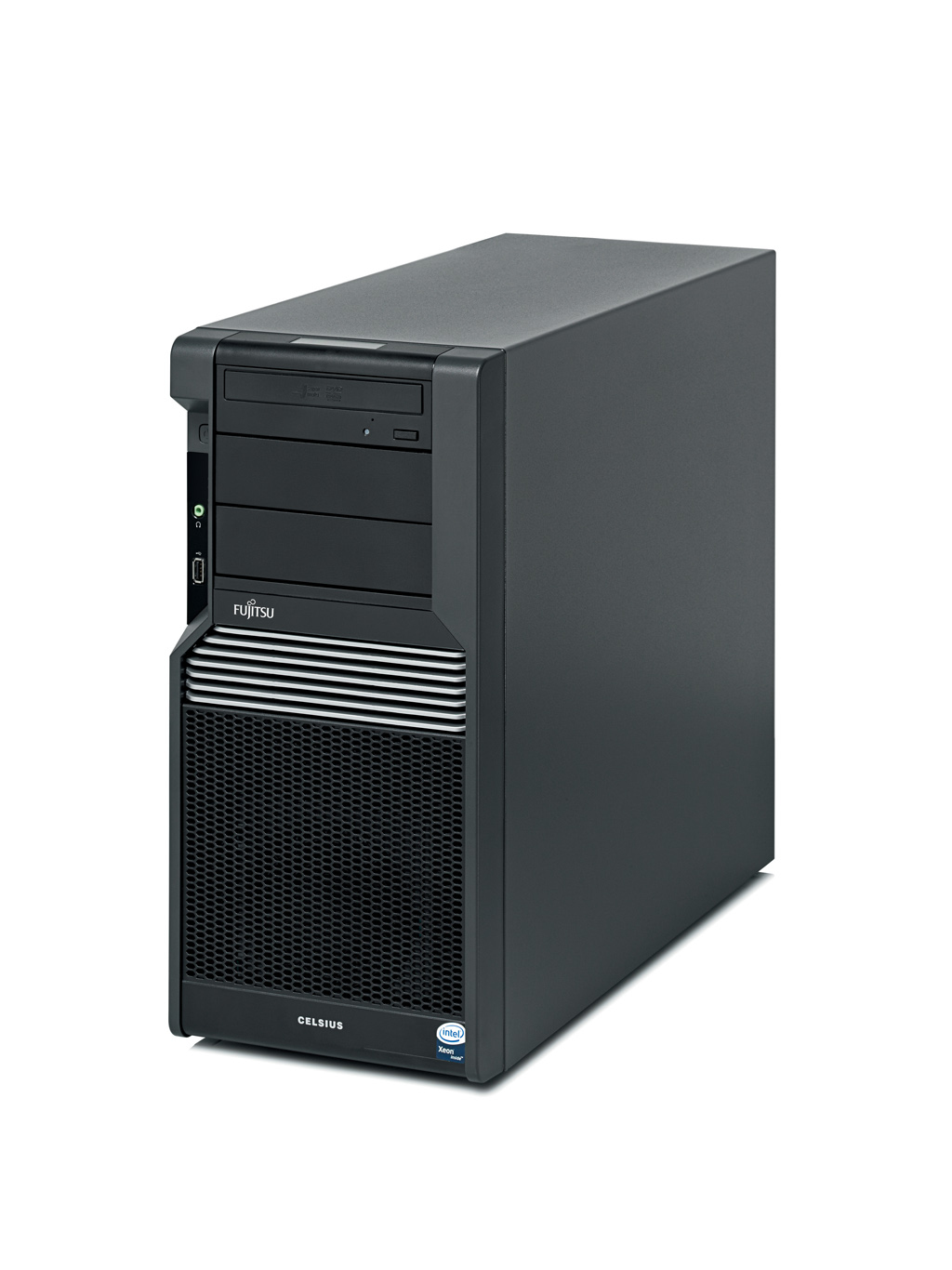

Fujitsu CELSIUS M470

Model CELSIUS M470Part no. S26361-K990-V415EAN 4049699369186

119 specifications

ProcessorIntel® Xeon® 3000 Sequence
Memory4 GB
Storage1 TB
TypeWorkstation
Weight18 kg
ColourBlack

See all specifications

Overview

Processor: Intel® Xeon® 3000 Sequence
Memory: 4 GB
Storage: 1 TB
Type: Workstation
Weight: 18 kg
Colour: Black

Brand: Fujitsu
Category: PCs/Workstations
Model: CELSIUS M470
Part numbers: S26361-K990-V415, VFY:M4700WF026NC, VFY:M4700WF021NL, VFY:M4700WF021CH, VFY:M4700WF031DE, VFY:M4700WF016NC +6 more
EAN / UPC: 4049699369186, 4049699148538, 4049699148958, 4049699156953 +2 more
Also known as: Fujitsu CELSIUS M470 Intel® Xeon® 3000 Sequence W3520 4 GB DDR3-SDRAM Mini Tower Workstation Black

Specifications

119 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 3000 Sequence
Processor model	W3520
Processor cores	4
Processor threads	8
Processor boost frequency	2.93 GHz
Processor frequency	2.66 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Processor front side bus	1066 MHz
Bus type	QPI
FSB Parity	No
System bus rate	4.80 GT/s
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Xeon 3500 Series
Processor codename	Bloomfield
Processor system type	Up
Thermal Design Power (TDP)	130 W
Tcase	67.9 °C
Number of QPI links	1
Number of processors installed	1
Processor socket	Socket B (LGA 1366)
Number of Processing Die Transistors	731 M
Processing Die size	263 mm²
CPU multiplier (bus/core ratio)	20
Maximum number of SMP processors	1
Processor core voltage (AC)	0.800 - 1.225 V
Stepping	D0
Maximum internal memory supported by processor	24 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	24 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 2 GB
Memory clock speed	1333 MHz
ECC	Yes
Memory channels	Triple-channel

Storage

Specification	Value
Optical drive type	DVD Super Multi
HDD capacity	1 TB
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	Yes

Graphics

Specification	Value
Maximum graphics card memory	0.768 GB
Graphics card	Quadro FX 1800

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® X58 Express
Motherboard form factor	ATX

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	11
Ethernet LAN (RJ-45) ports	1
Headphone outputs	3
Microphone in	Yes
VGA (D-Sub) ports quantity	0
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	2
Serial ports quantity	1
Parallel ports quantity	0

Expansion slots

Specification	Value
PCI Express x4 slots	2
PCI Express x16 slots	2
PCI slots	2

Power

Specification	Value
Power requirements	AC 100-240V@50 - 60Hz
Power supply	500 W

Design

Specification	Value
Chassis type	Mini Tower
Product colour	Black
External drive bays	3x 5.25"
Internal drive bays	4x 3.5"

Software

Specification	Value
Optional operating system supplied	Windows XP Professional
Compatible operating systems	Linux

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	39718
Processor code	SLBEW
Processor package size	42.5 x 45.0 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	1.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	Realtek ALC663

Operational conditions

Specification	Value
Operating temperature (T-T)	15 - 35 °C
Operating relative humidity (H-H)	20 - 75%

Ergonomics

Specification	Value
Acoustic pressure emissions	23 dB

Weight & dimensions

Specification	Value
Width	215 mm
Depth	522 mm
Height	446 mm
Weight	18 kg

Packaging content

Specification	Value
Mouse included	Yes

Certificates

Specification	Value
Certification	GS, CE, FCC Class B, CSA c, RoHS, IEC60601-1-2, CCC, ENERGY STAR 5.0
