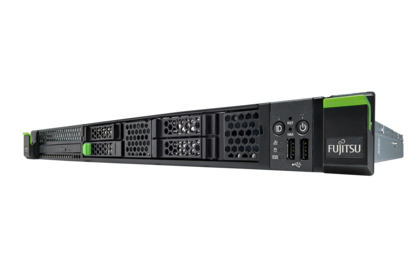

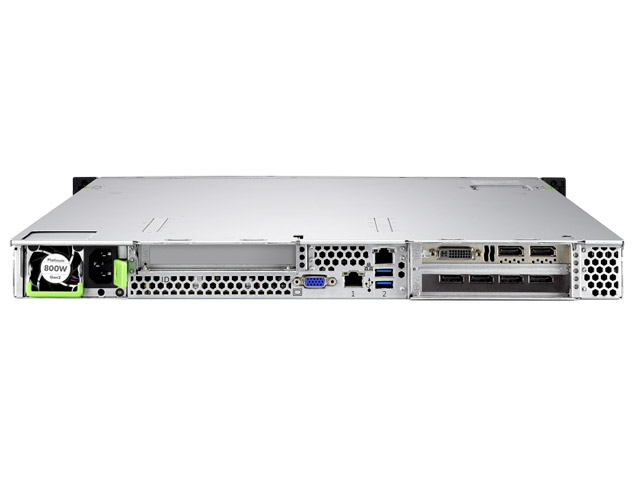

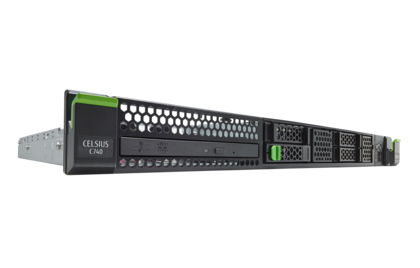

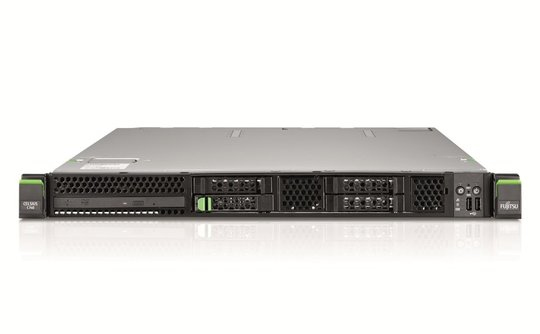

Fujitsu CELSIUS C740 Intel Xeon E5 v3 E5-1650V3

32 GB DDR4-SDRAM 256 GB SSD Windows 7 Professional Rack-mounted chassis Workstation Black

Model C740Part no. VFY:C7400W38SPITEAN 4054681952451

126 specifications

ProcessorIntel Xeon E5 v3
Memory32 GB
Storage256 GB
GraphicsNot available
TypeWorkstation
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel Xeon E5 v3
Memory: 32 GB
Storage: 256 GB
Graphics: Not available
Type: Workstation
OS: Windows 7 Professional

Brand: Fujitsu
Category: PCs/Workstations
Model: C740
Part numbers: VFY:C7400W38SPIT, LKN:C7400W0011PT, LKN:C7400W0013PT, VFY:C7400W78ABDE, CMT:K1448-V115, VFY:C7400W18SBIT +2 more
EAN / UPC: 4054681952451, 4057185866521, 4057185866514, 4059595437971 +2 more
Also known as: Fujitsu CELSIUS C740 Intel Xeon E5 v3 E5-1650V3 32 GB DDR4-SDRAM 256 GB SSD Windows 7 Professional Rack-mounted chassis Workstation Black

Specifications

126 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Xeon E5 v3
Processor model	E5-1650V3
Processor cores	6
Processor threads	12
Processor boost frequency	3.8 GHz
Processor frequency	3.5 GHz
Processor cache	15 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
System bus rate	0 GT/s
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Xeon E5-1600 v3
Processor codename	Haswell
Thermal Design Power (TDP)	140 W
Tcase	66.7 °C
Maximum number of PCI Express lanes	40
PCI Express configurations	1x4, 1x8, 1x16
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 2011-v3
Stepping	R2
Maximum internal memory supported by processor	768 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,1866,2133 MHz
Memory bandwidth supported by processor (max)	68 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	32 GB
Maximum internal memory	256 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	2 x 16 GB
Memory slots	8x DIMM
Memory clock speed	2133 MHz
ECC	Yes
Memory channels	Quad-channel

Storage

Specification	Value
Total storage capacity	256 GB
Optical drive type	CD-ROM
Storage media	SSD
Number of HDDs installed	0
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	SATA III
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

Specification	Value
Discrete graphics card model	Not available

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C612

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,1000,100 Mbit/s
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	2
VGA (D-Sub) ports quantity	1
DVI port	No
Serial ports quantity	1

Expansion slots

Specification	Value
PCI Express x16 (Gen 3.x) slots	1

Power

Specification	Value
Power supply	800 W
Power supply input frequency	47 - 63 Hz

Design

Specification	Value
Chassis type	Rack-mounted chassis
Rack capacity	1U
Number of 5.25" bays	1
Liquid cooling system	No
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	82765
Processor code	SR20J
Processor package size	52.5 x 45.0 mm
Scalability	1S
Supported instruction sets	AVX 2.0
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Weight & dimensions

Specification	Value
Width	431 mm
Depth	683 mm
Height	44.5 mm
Weight	13 kg

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No
