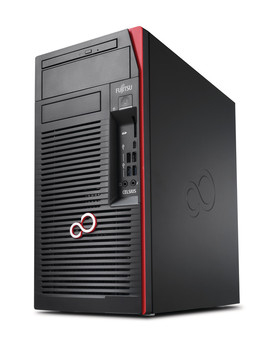

Fujitsu ESPRIMO 556/PX Intel® Celeron® G G3900

4 GB DDR4-SDRAM 500 GB HDD Windows 10 Pro Mini Tower PC Black, Red, White

Model 556/PXPart no. FMVD2203FP

135 specifications

ProcessorIntel® Celeron® G
Memory4 GB
Storage500 GB
GraphicsNot available
TypePC
OSWindows 10 Pro

See all specifications

Overview

Processor: Intel® Celeron® G
Memory: 4 GB
Storage: 500 GB
Graphics: Not available
Type: PC
OS: Windows 10 Pro

Brand: Fujitsu
Category: PCs/Workstations
Model: 556/PX
Part number: FMVD2203FP
Also known as: Fujitsu ESPRIMO 556/PX Intel® Celeron® G G3900 4 GB DDR4-SDRAM 500 GB HDD Windows 10 Pro Mini Tower PC Black, Red, White

Specifications

135 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron® G
Processor model	G3900
Processor cores	2
Processor threads	2
Processor frequency	2.8 GHz
Processor cache	2 MB
Processor cache type	Smart Cache
Processor front side bus	2133 MHz
Bus type	DMI3
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Celeron Processor G3000 series for Desktop
Processor codename	Skylake
Thermal Design Power (TDP)	51 W
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1151 (Socket H4)
Stepping	S0
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,1866,2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
ECC supported by processor	Yes
Memory voltage supported by processor	1.35 V

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory slots	2x DIMM
Memory clock speed	2133 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	DVD Super Multi
Storage media	HDD
HDD speed	5400 RPM
SSD interface	SATA

Graphics

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 510
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	950 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x1902
On-board graphics card OpenGL version	4.4
Graphics card DVI-D ports quantity	1
Graphics card DisplayPorts quantity	1

Performance

Specification	Value
Product type	PC
Motherboard chipset	H110 Express

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Wake-on-LAN ready	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
PS/2 ports quantity	2

Expansion slots

Specification	Value
Number of 3.5" bays	1

Power

Specification	Value
Power supply	16 W
Power supply input voltage	50 V
Power supply input frequency	50 - 60 Hz
Power consumption (typical)	68 W

Design

Specification	Value
Chassis type	Mini Tower
Placement supported	Horizontal/Vertical
Number of 5.25" bays	1
Product colour	Black, Red, White

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	32-bit
Operating system language	Japanese
Optional operating system supplied	Windows 7 Professional
Pre-installed software	Office Personal 2016

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	No
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	90741
Processor code	SR2HV
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015C
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Conflict-Free processor	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	20 - 80%

Weight & dimensions

Specification	Value
Width	142 mm
Depth	338 mm
Height	347 mm
Weight	6.3 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Numeric keypad	Yes

Keyboard

Specification	Value
Keyboard language	Japanese
Keyboard number of keys	109
